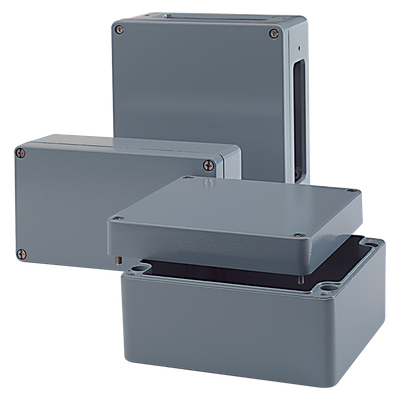

Aluminium Junction Box
Rugged aluminum terminal box
Features
Mounting options for DIN rails and mounting plates
Equipped with terminals and cable glands
Applicable in wide temperature ranges
High EMC protection
Technical Data
Material & Colour | |
|---|---|
| DIN EN 1706 EN AC-AlSi 12 (Fe) | |
| DIN EN 1706 AC - AlSi12 (a) | |
| Silver grey similar to RAL 7001 (special colour on request) | |
Protection Class | |
|---|---|
| IP66 according to EN 60529 (IP68 / IP69K on request) | |
IK Code | |
|---|---|
| 09 according to DIN EN 60068-2-75 | |
Special Versions on Request | |
|---|---|
| SWB/SBG/SBGL Corrosion protection | |
| Various cover gaskets | |
| EMV version | |
| Quick lock | |
| Rotary bolt lock | |
Temperature Resistance | |
|---|---|
| PU (polyurethane) seal (standard): -40 °C to +80 °C | |
| CR (chloroprene) seal (optional): -30 °C to +90 °C | |
| VMQ (silicone) seal (optional): -60 °C to +175 °C | |
| EMC (silicone) seal (optional): -55 °C to +125 °C | |
Scope of Delivery | |
|---|---|
| Aluminum enclosure consisting of cover, seal, incl. captive +/- stainless steel screws, bottom part with 2 or 4 grounding screws | |
Product Data & Accessories
| Expand | Art. | W x L x H | Colour | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|
 | 010505030 | 45 x 50 x 30 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 010606030 | 64 x 58 x 34 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 010610030 | 64 x 98 x 34 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 010612000 | 64 x 115 x 34 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 010615030 | 64 x 150 x 34 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 010619000 | 64 x 185 x 34 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 010619030 | 64 x 185 x 34 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 010808060 | 80 x 75 x 57 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 010813060 | 80 x 125 x 57 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 010818060 | 80 x 175 x 57 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 010825050 | 80 x 250 x 52 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011010080 | 100 x 100 x 81 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011016080 | 100 x 160 x 81 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011020080 | 100 x 200 x 81 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011212080 | 120 x 122 x 81 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011212090 | 120 x 122 x 91 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011222080 | 120 x 220 x 81 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011222090 | 120 x 220 x 91 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011222120 | 120 x 220 x 118 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011236080 | 120 x 360 x 81 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011414090 | 140 x 140 x 91 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011420090 | 140 x 200 x 91 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011616090 | 160 x 160 x 91 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011626090 | 160 x 260 x 91 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011626160 | 160 x 260 x 160 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011636090 | 160 x 360 x 91 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011656090 | 160 x 560 x 91 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011818100 | 180 x 180 x 101 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 011828100 | 180 x 280 x 101 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 012310110 | 100 x 230 x 111 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 012320110 | 232 x 202 x 111 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 012320180 | 232 x 202 x 181 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 012328110 | 230 x 280 x 111 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 012333110 | 230 x 330 x 111 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 012333180 | 230 x 330 x 181 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 012340110 | 230 x 400 x 111 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 012340180 | 230 x 400 x 181 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 012340230 | 230 x 400 x 225 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 012360110 | 230 x 600 x 111 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 013140110 | 313 x 404 x 111 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 013140140 | 312 x 403 x 141 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 013140180 | 313 x 404 x 181 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 013140230 | 313 x 404 x 227 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 013160110 | 310 x 600 x 111 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 013160180 | 310 x 600 x 181 mm | Silver gray (RAL 7001) | Send Request | ||||
 | 016060200 | 600 x 600 x 202 mm | Silver gray (RAL 7001) | Send Request |
Art.
016060200
W x L x H
600 x 600 x 202 mm
Colour
Silver gray (RAL 7001)
Art.
013160180
W x L x H
310 x 600 x 181 mm
Colour
Silver gray (RAL 7001)
Art.
013160110
W x L x H
310 x 600 x 111 mm
Colour
Silver gray (RAL 7001)
Art.
013140230
W x L x H
313 x 404 x 227 mm
Colour
Silver gray (RAL 7001)
Services
Unlock the Benefits of Our Services for Aluminium Junction Box
Discover how our expert services can elevate the performance and reliability of your aluminium junction box. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece
Powder Coating in Custom Colours
If our standard finish does not align with your vision or company branding, we can powder coat the enclosures in your chosen colour. Simply provide us with the desired RAL colour, texture, and gloss level
Passivation
Our enclosures are passivated using SurTec650, which protects the aluminium from corrosion and serves as an adhesion primer for painting. Alternatively, we can apply other surface treatments such as Alodine. Please contact us for further details
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number
