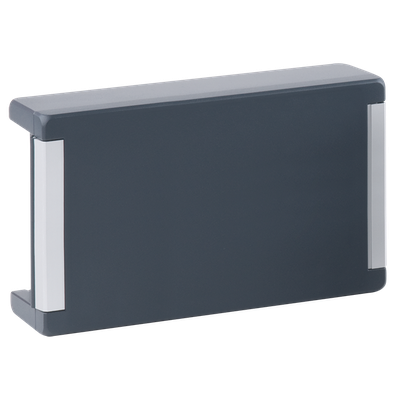

Aluminium enclosure Bocube with smooth hinged lid

Bocube Aluminum Enclosure with Smooth Lid

Aluminum enclosure IP 66 / IP68 (1,2 m - 2 h) / IP 69 with integrated hinge

Features

  • Captive lid with smooth surface

  • Hinge integrated into the case design

  • No visible housing screws

  • Prepared for cost-efficient integration of pressure equalization elements (DAE)

  • Installation space for front panels and scribed boards

Send Request

Technical Data

Material

Enclosure:GD Al Si 12
Gasket:PU foamed
Hinges / covers: Al Mg Si 0.5 powder coated / natural color anodized

Colour

Graphite grey, similar to RAL 7024
Light grey, similar to RAL 7035
Special colours available on request

Protection Class

IP66 / IP68 (1.2 m – 2 h) / IP69, according to DIN EN 60529
With silicone gasket max. IP66

Scope of delivery

Enclosure including seal, hinge, and mounting material

Product Data & Accessories

  • Mast mounting, stainless steel V2A, uncoated | MH 080

    Art. 96500080

  • Handle set for Bocube Alu, aluminium, powder-coated, silver | BA GR 08-9006

    Art. 00510106

  • Pressure compensation membrane DAE | DAE-D11

    Art. 52011000

  • For BA 1008 | TS 32

    Art. 22320702

  • DIN rails DIN EN 60715 TH 15, galvanised steel | TS 15.070.2

    Art. 22150702

  • Wall brackets | BA WL 08 - 7024

    Art. 00500104

  • Quick-release fastener | BA 08 SV-C-0

    Art. 00430109

  • Mounting panels, laminated paper, 2 mm | BA M 1008

    Art. 00602100

  • DIN rails DIN EN 60715 TH 35, galvanised steel | TS 35.070.2

    Art. 22350702

  • Screws (SHR) and distance bolts (DIBLZ) for mounting bosses in plastic enclosures | SHR Z M4x8

    Art. 59005049

  • Pressure compensation membrane DAE | DAE-D11

    Art. 52011000

  • For BA 1008 | TS 32

    Art. 22320702

  • Handle set for Bocube Alu, aluminium, powder-coated, silver | BA GR 08-9006

    Art. 00510106

  • DIN rails DIN EN 60715 TH 35, galvanised steel | TS 35.070.2

    Art. 22350702

  • DIN rails DIN EN 60715 TH 15, galvanised steel | TS 15.070.2

    Art. 22150702

  • Quick-release fastener | BA 08 SV-C-0

    Art. 00430109

  • Mounting panels, laminated paper, 2 mm | BA M 1008

    Art. 00602100

  • Wall brackets | BA WL 08 - 7024

    Art. 00500104

  • Mast mounting, stainless steel V2A, uncoated | MH 080

    Art. 96500080

  • Screws (SHR) and distance bolts (DIBLZ) for mounting bosses in plastic enclosures | SHR Z M4x8

    Art. 59005049

  • Screws (SHR) and distance bolts (DIBLZ) for mounting bosses in plastic enclosures | SHR Z M4x8

    Art. 59005049

  • DIN rails DIN EN 60715 TH 35, galvanised steel | TS 35.230.2

    Art. 22352302

  • Mounting panels, laminated paper, 2 mm | BA M 2817

    Art. 00606300

  • Quick-release fastener | BA 17 SV-C-0

    Art. 00430309

  • Mast mounting, stainless steel V2A, uncoated | MH 167

    Art. 96500167

  • Pressure compensation membrane DAE | DAE-D11

    Art. 52011000

  • For BA 2817 | TS 32

    Art. 22322302

  • Handle set for Bocube Alu, aluminium, powder-coated, silver | BA GR 17-9006

    Art. 00510306

  • Wall brackets | BA WL 17 - 7035

    Art. 00500305

  • Quick-release fastener | BA 17 SV-7035

    Art. 00430305

  • DIN rails DIN EN 60715 TH 15, galvanised steel | TS 15.230.2

    Art. 22152302

  • Handle set for Bocube Alu, aluminium, powder-coated, silver | BA GR 17-9006

    Art. 00510306

  • DIN rails DIN EN 60715 TH 35, galvanised steel | TS 35.230.2

    Art. 22352302

  • Mast mounting, stainless steel V2A, uncoated | MH 167

    Art. 96500167

  • Screws (SHR) and distance bolts (DIBLZ) for mounting bosses in plastic enclosures | SHR Z M4x8

    Art. 59005049

  • Mounting panels, laminated paper, 2 mm | BA M 2817

    Art. 00606300

  • DIN rails DIN EN 60715 TH 15, galvanised steel | TS 15.230.2

    Art. 22152302

  • Quick-release fastener | BA 17 SV-7035

    Art. 00430305

  • Wall brackets | BA WL 17 - 7035

    Art. 00500305

  • Quick-release fastener | BA 17 SV-C-0

    Art. 00430309

  • Pressure compensation membrane DAE | DAE-D11

    Art. 52011000

  • For BA 2817 | TS 32

    Art. 22322302

Services

Unlock the Benefits of Our Services for Bocube Aluminum Enclosure with Smooth Lid

Discover how our expert services can elevate the performance and reliability of your Bocube aluminum enclosure with smooth lid. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.

1

Mechanical Machining

We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece

Mechanical processing

2

Powder Coating in Custom Colours

If our standard finish does not align with your vision or company branding, we can powder coat the enclosures in your chosen colour. Simply provide us with the desired RAL colour, texture, and gloss level

Coating

3

Passivation

Our enclosures are passivated using SurTec650, which protects the aluminium from corrosion and serves as an adhesion primer for painting. Alternatively, we can apply other surface treatments such as Alodine. Please contact us for further details

Passivating

4

Printing

If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil

Printing labeling

5

Engraving and Laser Marking

Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired

Engraving and laser marking

6

Procurement of Components

As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution

Procurement

7

Assembly

Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution

Assembly

8

Packaging and Logistics

Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number

Packing logistics
