Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece.

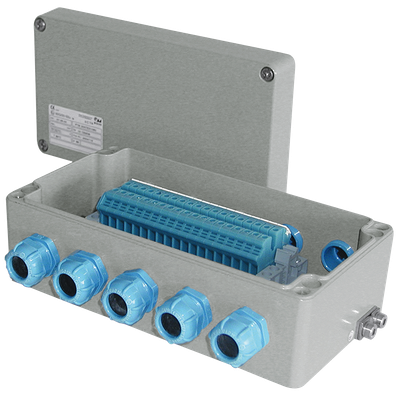

Enclosure systems of diecast aluminium usable in all Ex-areas. ranging from 64 x 58 x 34 mm to 600 x 600 x 200 mm.
Emtpty enclosures with U-approval for individual fittings and Ex e/ Ex ia terminal enclosures
Optional version with window
ATEX Directive 2014/34/EU
Material | |
---|---|
Enclosure: | Die-cast aluminum DIN EN 1706 EN AC-AlSi 12 (Fe) |
Colour | |
---|---|
Silver gray (RAL 7001) |
Protection Class | |
---|---|
IP 66 according to EN 60529 |
Explosion Protection | |
---|---|
II 2G Ex eb IIC T6/T5/T4 Gb | |
II 2G Ex ia IIC T6/T5/T4 Gb | |
II 2D Ex tb IIIC T85°C/T100°C/T135°C Db IP66 | |
II 2G Ex db eb ia [ia] mb IIC T6/T5/T4 Gb | |
II 3G Ex eb db mb ia [ia Ga] nA nC [op is] IIC T6, T5, T4 Gc |
Test Certificates | |
---|---|
ATEX, IECEx, Inmetro and UKCA | |
Additional certificates under 'Product Certificates |
Expand | Art. | W x L x H | Product Group | Product Type | 3D | Accessories | |||
---|---|---|---|---|---|---|---|---|---|
![]() | 051616090 | 160 x 160 x 91 mm | Ex e | AExe 05095 | Send Request | ||||
![]() | 051626090 | 160 x 260 x 91 mm | Ex e | AExe 05100 | Send Request | ||||
![]() | 051636090 | 160 x 360 x 91 mm | Ex e | AExe 05105 | Send Request | ||||
![]() | 051656090 | 160 x 560 x 91 mm | Ex e | AExe 05110 | Send Request | ||||
![]() | 051818100 | 180 x 180 x 101 mm | Ex e | AExe 05115 | Send Request | ||||
![]() | 051828100 | 180 x 280 x 101 mm | Ex e | AExe 05120 | Send Request | ||||
![]() | 052310110 | 230 x 100 x 111 mm | Ex e | AExe 05125 | Send Request | ||||
![]() | 052320110 | 232 x 202 x 111 mm | Ex e | AExe 05130 | Send Request | ||||
![]() | 052320180 | 233 x 202 x 181 mm | Ex e | AExe 05135 | Send Request | ||||
![]() | 052328110 | 230 x 280 x 111 mm | Ex e | AExe 05140 | Send Request | ||||
![]() | 052333110 | 230 x 330 x 111 mm | Ex e | AExe 05145 | Send Request | ||||
![]() | 052333180 | 230 x 330 x 181 mm | Ex e | AExe 05150 | Send Request | ||||
![]() | 052340110 | 230 x 400 x 111 mm | Ex e | AExe 05155 | Send Request | ||||
![]() | 052340230 | 230 x 400 x 225 mm | Ex e | AExe 05160 | Send Request | ||||
![]() | 052360110 | 230 x 600 x 111 mm | Ex e | AExe 05165 | Send Request | ||||
![]() | 053140110 | 313 x 404 x 111 mm | Ex e | AExe 05170 | Send Request | ||||
![]() | 053140140 | 312 x 403 x 141 mm | Ex e | AExe 05175 | Send Request | ||||
![]() | 053140180 | 313 x 404 x 181 mm | Ex e | AExe 05180 | Send Request | ||||
![]() | 053140230 | 313 x 404 x 227 mm | Ex e | AExe 05185 | Send Request | ||||
![]() | 053160110 | 310 x 600 x 111 mm | Ex e | AExe 05190 | Send Request | ||||
![]() | 053160180 | 310 x 600 x 181 mm | Ex e | AExe 05195 | Send Request | ||||
![]() | 056060200 | 600 x 600 x 202 mm | Ex e | AExe 05200 | Send Request | ||||
![]() | 150606030 | 64 x 58 x 34 mm | Ex ia | AExi 15010 | Send Request | ||||
![]() | 150610030 | 64 x 98 x 34 mm | Ex ia | AExi 15015 | Send Request | ||||
![]() | 150615030 | 64 x 150 x 34 mm | Ex ia | AExi 15020 | Send Request | ||||
![]() | 150808060 | 80 x 75 x 57 mm | Ex ia | AExi 15025 | Send Request | ||||
![]() | 150813060 | 80 x 125 x 57 mm | Ex ia | AExi 15030 | Send Request | ||||
![]() | 150818060 | 80 x 175 x 57 mm | Ex ia | AExi 15035 | Send Request | ||||
![]() | 150825050 | 80 x 250 x 52 mm | Ex ia | AExi 15040 | Send Request | ||||
![]() | 151010080 | 100 x 100 x 81 mm | Ex ia | AExi 15045 | Send Request | ||||
![]() | 151016080 | 100 x 160 x 81 mm | Ex ia | AExi 15050 | Send Request | ||||
![]() | 151020080 | 100 x 200 x 81 mm | Ex ia | AExi 15055 | Send Request | ||||
![]() | 151212080 | 120 x 122 x 81 mm | Ex ia | AExi 15060 | Send Request | ||||
![]() | 151212090 | 120 x 122 x 91 mm | Ex ia | AExi 15065 | Send Request | ||||
![]() | 151222080 | 120 x 220 x 81 mm | Ex ia | AExi 15070 | Send Request | ||||
![]() | 151222090 | 120 x 220 x 91 mm | Ex ia | AExi 15075 | Send Request | ||||
![]() | 151236080 | 120 x 360 x 81 mm | Ex ia | AExi 15080 | Send Request | ||||
![]() | 151414090 | 140 x 140 x 91 mm | Ex ia | AExi 15085 | Send Request | ||||
![]() | 151420090 | 140 x 200 x 91 mm | Ex ia | AExi 15090 | Send Request | ||||
![]() | 151616090 | 160 x 160 x 91 mm | Ex ia | AExi 15095 | Send Request | ||||
![]() | 151626090 | 160 x 260 x 91 mm | Ex ia | AExi 15100 | Send Request | ||||
![]() | 151636090 | 160 x 360 x 91 mm | Ex ia | AExi 15105 | Send Request | ||||
![]() | 151656090 | 160 x 560 x 91 mm | Ex ia | AExi 15110 | Send Request | ||||
![]() | 151818100 | 180 x 180 x 101 mm | Ex ia | AExi 15115 | Send Request | ||||
![]() | 151828100 | 230 x 100 x 111 mm | Ex ia | AExi 15125 | Send Request | ||||
![]() | 152310110 | 180 x 280 x 101 mm | Ex ia | AExi 15120 | Send Request | ||||
![]() | 152320110 | 232 x 202 x 111 mm | Ex ia | AExi 15130 | Send Request | ||||
![]() | 152320180 | 232 x 202 x 181 mm | Ex ia | AExi 15135 | Send Request | ||||
![]() | 152328110 | 230 x 280 x 111 mm | Ex ia | AExi 15140 | Send Request | ||||
![]() | 152333110 | 230 x 330 x 111 mm | Ex ia | AExi 15145 | Send Request | ||||
![]() | 152333180 | 230 x 330 x 181 mm | Ex ia | AExi 15150 | Send Request | ||||
![]() | 152340110 | 230 x 400 x 111 mm | Ex ia | AExi 15155 | Send Request | ||||
![]() | 152340230 | 230 x 400 x 225 mm | Ex ia | AExi 15160 | Send Request | ||||
![]() | 152360110 | 230 x 600 x 111 mm | Ex ia | AExi 15165 | Send Request | ||||
![]() | 153140110 | 313 x 404 x 111 mm | Ex ia | AExi 15170 | Send Request | ||||
![]() | 153140140 | 312 x 403 x 141 mm | Ex ia | AExi 15175 | Send Request | ||||
![]() | 153140180 | 313 x 404 x 181 mm | Ex ia | AExi 15180 | Send Request | ||||
![]() | 153140230 | 313 x 404 x 227 mm | Ex ia | AExi 15185 | Send Request | ||||
![]() | 153160110 | 310 x 600 x 111 mm | Ex ia | AExi 15190 | Send Request | ||||
![]() | 153160180 | 310 x 600 x 181 mm | Ex ia | AExi 15195 | Send Request | ||||
![]() | 156060200 | 600 x 600 x 202 mm | Ex ia | AExi 15200 | Send Request | ||||
![]() | 250606030 | 64 x 58 x 34 mm | Ex empty | AExB 25010 | Send Request | ||||
![]() | 250610030 | 64 x 98 x 34 mm | Ex empty | AExB 25015 | Send Request | ||||
![]() | 250615030 | 64 x 150 x 34 mm | Ex empty | AExB 25020 | Send Request | ||||
![]() | 250808060 | 80 x 75 x 57 mm | Ex empty | AExB 25025 | Send Request | ||||
![]() | 250813060 | 80 x 125 x 57 mm | Ex empty | AExB 25030 | Send Request | ||||
![]() | 250818060 | 80 x 175 x 57 mm | Ex empty | AExB 25035 | Send Request | ||||
![]() | 250825050 | 80 x 250 x 52 mm | Ex empty | AExB 25040 | Send Request | ||||
![]() | 251010080 | 100 x 100 x 81 mm | Ex empty | AExB 25045 | Send Request | ||||
![]() | 251016080 | 100 x 160 x 81 mm | Ex empty | AExB 25050 | Send Request | ||||
![]() | 251020080 | 100 x 200 x 81 mm | Ex empty | AExB 25055 | Send Request | ||||
![]() | 251212080 | 120 x 122 x 81 mm | Ex empty | AExB 25060 | Send Request | ||||
![]() | 251212090 | 120 x 122 x 91 mm | Ex empty | AExB 25065 | Send Request | ||||
![]() | 251222080 | 120 x 220 x 81 mm | Ex empty | AExB 25070 | Send Request | ||||
![]() | 251222090 | 120 x 220 x 91 mm | Ex empty | AExB 25075 | Send Request | ||||
![]() | 251236080 | 120 x 360 x 81 mm | Ex empty | AExB 25080 | Send Request | ||||
![]() | 251414090 | 140 x 140 x 91 mm | Ex empty | AExB 25085 | Send Request | ||||
![]() | 251420090 | 140 x 200 x 91 mm | Ex empty | AExB 25090 | Send Request | ||||
![]() | 251616090 | 160 x 160 x 91 mm | Ex empty | AExB 25095 | Send Request | ||||
![]() | 251626090 | 160 x 260 x 91 mm | Ex empty | AExB 25100 | Send Request | ||||
![]() | 251636090 | 160 x 360 x 91 mm | Ex empty | AExB 25105 | Send Request | ||||
![]() | 251656090 | 160 x 560 x 91 mm | Ex empty | AExB 25110 | Send Request | ||||
![]() | 251818100 | 180 x 180 x 101 mm | Ex empty | AExB 25115 | Send Request | ||||
![]() | 251828100 | 180 x 280 x 101 mm | Ex empty | AExB 25120 | Send Request | ||||
![]() | 252310110 | 230 x 100 x 111 mm | Ex empty | AExB 25125 | Send Request | ||||
![]() | 252320110 | 232 x 202 x 111 mm | Ex empty | AExB 25130 | Send Request | ||||
![]() | 252320180 | 232 x 202 x 181 mm | Ex empty | AExB 25135 | Send Request | ||||
![]() | 252328110 | 230 x 280 x 111 mm | Ex empty | AExB 25140 | Send Request | ||||
![]() | 252333110 | 230 x 330 x 111 mm | Ex empty | AExB 25145 | Send Request | ||||
![]() | 252333180 | 230 x 330 x 181 mm | Ex empty | AExB 25150 | Send Request | ||||
![]() | 252340110 | 230 x 400 x 111 mm | Ex empty | AExB 25155 | Send Request | ||||
![]() | 252340230 | 230 x 400 x 225 mm | Ex empty | AExB 25160 | Send Request | ||||
![]() | 252360110 | 230 x 600 x 111 mm | Ex empty | AExB 25165 | Send Request | ||||
![]() | 253140110 | 313 x 404 x 111 mm | Ex empty | AExB 25170 | Send Request | ||||
![]() | 253140140 | 312 x 403 x 141 mm | Ex empty | AExB 25175 | Send Request | ||||
![]() | 253140180 | 313 x 404 x 181 mm | Ex empty | AExB 25180 | Send Request | ||||
![]() | 253140230 | 313 x 404 x 227 mm | Ex empty | AExB 25185 | Send Request | ||||
![]() | 253160110 | 310 x 600 x 111 mm | Ex empty | AExB 25190 | Send Request | ||||
![]() | 253160180 | 310 x 600 x 181 mm | Ex empty | AExB 25195 | Send Request | ||||
![]() | 256060200 | 600 x 600 x 202 mm | Ex empty | AExB 25200 | Send Request |
256060200
600 x 600 x 202 mm
Ex empty
AExB 25200
253160180
310 x 600 x 181 mm
Ex empty
AExB 25195
253160110
310 x 600 x 111 mm
Ex empty
AExB 25190
253140230
313 x 404 x 227 mm
Ex empty
AExB 25185
