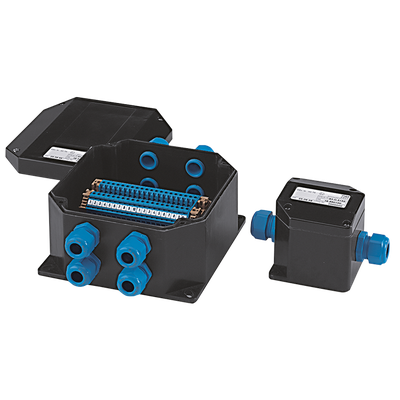

ATEX Okta Box Enclosures
Glass fibre reinforced enclosure systems of polyester-resin for use in all Ex-areas.
Features
Empty enclosures for individual fittings and Ex e / Ex ia terminal enclosures
ATEX Directive 2014/34/EU
Enclosures with external brackets
Technical Data
Material | |
|---|---|
| Enclosure: | Glass fiber reinforced, thermoset polyester with graphite additive |
Colour | |
|---|---|
| Graphite black (RAL 9011) | |
Protection Class | |
|---|---|
| IP 66 according to EN 60529 | |
Explosion Protection | |
|---|---|
| II 2G Ex eb IIC T6/T5/T4 Gb | |
| II 2G Ex ia IIC T6/T5/T4 Gb | |
| II 2G Ex db eb ia [ia] mb IIC T6/T5/T4 Gb | |
| II 3 G Ex eb db mb ia [ia Ga] nA nC [op is] IIC T6, T5, T4 Gc | |
| II 2D Ex tb IIIC T85°C/T100°C/T135°C Db IP66 | |
Test Certificates | |
|---|---|
| ATEX, IECEx, Inmetro and UKCA | |
| Additional certificates under 'Product Certificates' | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Group | Product Type | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 068801000 | 81 x 81 x 75 mm | Ex e | Okta Exe 0601 | Send Request | ||||
 | 068802000 | 121 x 121 x 75 mm | Ex e | Okta Exe 0602 | Send Request | ||||
 | 068803000 | 161 x 161 x 93 mm | Ex e | Okta Exe 0603 | Send Request | ||||
 | 068804000 | 200 x 200 x 125 mm | Ex e | Okta Exe 0604 | Send Request | ||||
 | 168801000 | 81 x 81 x 75 mm | Ex ia | Okta Exi 1601 | Send Request | ||||
 | 168802000 | 121 x 121 x 75 mm | Ex ia | Okta Exi 1602 | Send Request | ||||
 | 168803000 | 161 x 161 x 93 mm | Ex ia | Okta Exi 1603 | Send Request | ||||
 | 168804000 | 200 x 200 x 125 mm | Ex ia | Okta Exi 1604 | Send Request | ||||
 | 268801000 | 81 x 81 x 75 mm | Ex empty | Okta ExB 2601 | Send Request | ||||
 | 268802000 | 121 x 121 x 75 mm | Ex empty | Okta ExB 2602 | Send Request | ||||
 | 268803000 | 161 x 161 x 93 mm | Ex empty | Okta ExB 2603 | Send Request | ||||
 | 268804000 | 200 x 200 x 125 mm | Ex empty | Okta ExB 2604 | Send Request |
Art.
268804000
W x L x H
200 x 200 x 125 mm
Product Group
Ex empty
Product Type
Okta ExB 2604
Art.
268803000
W x L x H
161 x 161 x 93 mm
Product Group
Ex empty
Product Type
Okta ExB 2603
Art.
268802000
W x L x H
121 x 121 x 75 mm
Product Group
Ex empty
Product Type
Okta ExB 2602
Art.
268801000
W x L x H
81 x 81 x 75 mm
Product Group
Ex empty
Product Type
Okta ExB 2601
