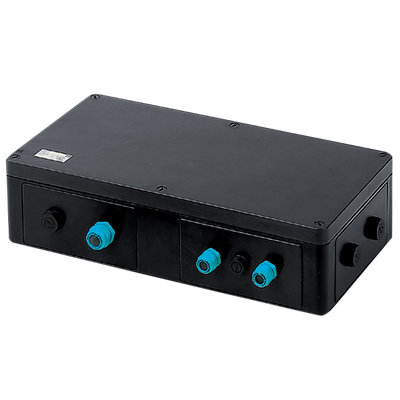

ATEX PGR Flanged Enclosure
Fiberglass-reinforced polyester flanged enclosures for use in ATEX areas
Features
Empty enclosure for individual fittings and Ex e / Ex ia junction boxes
Optional: Version with window
ATEX directive 2014/34/EU
Combination with other polyester flange enclosures possible
Technical Data
Material | |
|---|---|
| Enclosure: | Glass fiber reinforced, thermoset polyester with graphite additive |
Colour | |
|---|---|
| Graphite black (RAL 9011) | |
Protection Class | |
|---|---|
| IP 66 according to EN 60529 | |
Explosion Protection | |
|---|---|
| II 2G Ex eb IIC T6/T5/T4 Gb | |
| II 2G Ex ia IIC T6/T5/T4 Gb | |
| II 2G Ex db eb ia [ia] mb IIC T6/T5/T4 Gb | |
| II 3 G Ex eb db mb ia [ia Ga] nA nC [op is] IIC T6, T5, T4 Gc | |
| II 2D Ex tb IIIC T85°C/T100°C Db IP65 | |
Test Certificates | |
|---|---|
| ATEX, IECEx, Inmetro and UKCA | |
| Additional certificates under 'Product Certificates' | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Group | Product Type | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 061401000 | 170 x 270 x 136 mm | Ex e | PFExe 0610 | Send Request | ||||
 | 061402000 | 270 x 270 x 136 mm | Ex e | PFExe 0620 | Send Request | ||||
 | 061403000 | 270 x 541 x 136 mm | Ex e | PFExe 0630 | Send Request | ||||
 | 161401000 | 170 x 270 x 136 mm | Ex ia | PFExi 0610 | Send Request | ||||
 | 161402000 | 270 x 270 x 136 mm | Ex ia | PFExi 0620 | Send Request | ||||
 | 161403000 | 270 x 541 x 136 mm | Ex ia | PFExi 0630 | Send Request | ||||
 | 261401000 | 170 x 270 x 136 mm | Ex empty | PFExB 0610 | Send Request | ||||
 | 261402000 | 270 x 270 x 136 mm | Ex empty | PFExB 0620 | Send Request | ||||
 | 261403000 | 270 x 541 x 136 mm | Ex empty | PFExB 0630 | Send Request |
Art.
261403000
W x L x H
270 x 541 x 136 mm
Product Group
Ex empty
Product Type
PFExB 0630
Art.
261402000
W x L x H
270 x 270 x 136 mm
Product Group
Ex empty
Product Type
PFExB 0620
Art.
261401000
W x L x H
170 x 270 x 136 mm
Product Group
Ex empty
Product Type
PFExB 0610
Art.
161403000
W x L x H
270 x 541 x 136 mm
Product Group
Ex ia
Product Type
PFExi 0630
