ATEX Polyester Cabinets
Glass fiber reinforced polyester cabinets for use in ATEX areas
Features

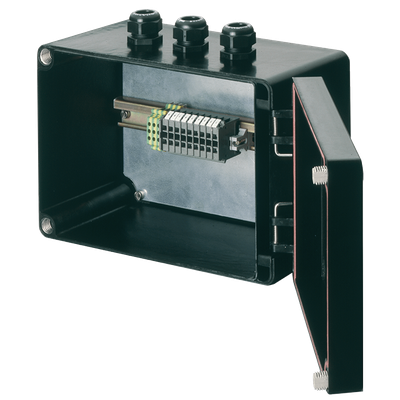

Polyester Ex enclosure with hinged Lid
Easy fitting of Ex components
Available fully assembled with terminals, cable glands, and accessories, or as component-certified empty enclosure
Technical Data
Material | |
|---|---|
| Enclosure: | Glass fiber reinforced, thermoset polyester with graphite additive |
Colour | |
|---|---|
| Similar to RAL 9011, graphite black | |
Protection Class | Impact Resistance | |
|---|---|
| IP 66 according to EN 60529 | |
| > 7 joules according to EN 60079-0 | |
Explosion Protection | |
|---|---|
| II 2G Ex eb IIC T6/T5/T4 Gb | |
| II 2G Ex ia IIC T6/T5/T4 Gb | |
| II 2G Ex db eb ia [ia] mb IIC T6/T5/T4 Gb | |
| II 3G Ex eb db mb ia [ia Ga] nA nC [op is] IIC T6, T5, T4 Gc | |
| II 2D Ex tb IIIC T85°C/T100°C/T135°C Db IP66 | |
Test Certificates | |
|---|---|
| ATEX, IECEx, Inmetro and UKCA | |
| Additional certificates under 'Product Certificates | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Group | Product Type | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 062020000 | 200 x 200 x 168 mm | Ex e | Pog Exe 1 | Send Request | ||||
 | 062030000 | 200 x 300 x 168 mm | Ex e | Pog Exe 2 | Send Request | ||||
 | 063040000 | 405 x 305 x 202 mm | Ex e | Pog Exe 3 | Send Request | ||||
 | 064060000 | 605 x 405 x 252 mm | Ex e | Pog Exe 4 | Send Request | ||||
 | 162020000 | 200 x 200 x 168 mm | Ex ia | Pog Exi 1 | Send Request | ||||
 | 162030000 | 200 x 300 x 168 mm | Ex ia | Pog Exi 2 | Send Request | ||||
 | 163040000 | 405 x 305 x 202 mm | Ex ia | Pog Exi 3 | Send Request | ||||
 | 164060000 | 605 x 405 x 252 mm | Ex ia | Pog Exi 4 | Send Request | ||||
 | 262020000 | 200 x 200 x 168 mm | Ex empty | Pog ExB 1 | Send Request | ||||
 | 262030000 | 200 x 300 x 168 mm | Ex empty | Pog ExB 2 | Send Request | ||||
 | 263040000 | 405 x 305 x 202 mm | Ex empty | Pog ExB 3 | Send Request | ||||
 | 264060000 | 605 x 405 x 252 mm | Ex empty | Pog ExB 4 | Send Request |
Art.
264060000
W x L x H
605 x 405 x 252 mm
Product Group
Ex empty
Product Type
Pog ExB 4
Art.
263040000
W x L x H
405 x 305 x 202 mm
Product Group
Ex empty
Product Type
Pog ExB 3
Art.
262030000
W x L x H
200 x 300 x 168 mm
Product Group
Ex empty
Product Type
Pog ExB 2
Art.
262020000
W x L x H
200 x 200 x 168 mm
Product Group
Ex empty
Product Type
Pog ExB 1
Services
Unlock the Benefits of Our Services for ATEX Enclosures
Discover how our expert services can elevate the performance and reliability of your ATEX enclosures. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece.
2
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired.
3
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution.
4
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution.
5
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number.
