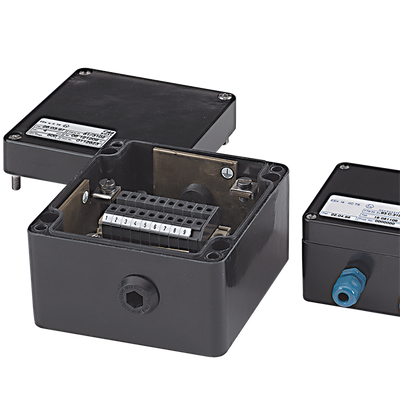

ATEX GRP polyester enclosures with cable glands and terminal block

ATEX Polyester Enclosures

Glass fibre reinforced enclosure system of polyester resin for use in all Ex-areas. Size of 75x80x56mm to 405x400x201mm

Features

  • Emtpty enclosures with U-approval for individual fittings and Ex eb/ Ex ia terminal enclosures

  • Optional version with window

  • ATEX directive 2014/34/EU

Send Request

Technical Data

Material

Enclosure:Glass fiber reinforced, thermoset polyester with graphite

Colour

Graphite black (RAL 9011)

Protection Class

IP 66 according to EN 60529

Explosion Protection

II 2G Ex eb IIC T6/T5/T4 Gb
II 2G Ex ia IIC T6/T5/T4 Gb
II 2G Ex db eb ia [ia] mb IIC T6/T5/T4 Gb
II 3 G Ex eb db mb ia [ia Ga] nA nC [op is] IIC T6, T5, T4 Gc
II 2D Ex tb IIIC T85°C/T100°C/T135°C Db IP66

Test Certificates

ATEX, IECEx, Inmetro and UKCA
Additional certificates under 'Product Certificates

Product Data & Accessories

  • Mounting plate for 02.4140xx

    Art. 100111190

  • HINGE EXTERNAL / GREY

    Art. 100270010

  • DIN rail 35/7,5 for xx.234011

    Art. 100614270

  • Mounting plate for 02.4140xx

    Art. 100111190

  • HINGE EXTERNAL / GREY

    Art. 100270010

  • DIN rail 35/7,5 for xx.234011

    Art. 100614270

  • HINGE EXTERNAL / GREY

    Art. 100270010

  • DIN rail 35/7,5 for xx.163609

    Art. 100614250

  • Mounting plate for 02.363609

    Art. 100811180

  • Mounting plate for 02.256012

    Art. 100111170

  • HINGE EXTERNAL / GREY

    Art. 100270010

  • DIN rail 35/7,5 for xx.236011

    Art. 100614280

Services

Unlock the Benefits of Our Services for ATEX Enclosures

Discover how our expert services can elevate the performance and reliability of your ATEX enclosures. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.

1

Mechanical Machining

We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece.

Mechanical processing

2

Engraving and Laser Marking

Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired.

Engraving and laser marking

3

Procurement of Components

As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution.

Procurement

4

Assembly

Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution.

Assembly

5

Packaging and Logistics

Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number.

Packing logistics
