Console Mounting
An additional housing is optionally available as a desk connection to accommodate built-in components or command devices.
SL 4000 Control Panel Enclosure
SL 4000 Control Panel Enclosure – a modular, IP65-rated system with flexible installation depths and 18 configuration options
Features
Variable Operator Enclosure for Automation Applications
Adjustable Height and Width with Handle and Innovative Back Panel
Ideal for Siemens Simatic or B&R Panel PC Installation
Technical Data
Material | |
|---|---|
| Profile: | DIN EN 573 EN AW-AlMgSi |
| Casting corners: | DIN EN 1706 EN AC-AlSi 12 Cu 1 (Fe) |
Colour | |
|---|---|
| Optionally RAL 7035 powder coated or natural anodized | |
| Special colours on request | |
Protection Class | |
|---|---|
| IP 65 according to EN 60529 | |
Temperature Resistance | |
|---|---|
| -30° C to +80° C | |
Seal | |
|---|---|
| PUR, CR | |
Scope of Delivery | |
|---|---|
| Enclosure body incl. corners, gaskets, fasteners, rear panel or door, front panel mounting kit and front panel. | |
Product Data & Accessories
| Expand | Art. | Product Type | Model | Installation Depth | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 1001 | SL 4000 | Body profile | 80 | Send Request | ||||
 | 1002 | SL 4000 | Handle profile | 80 | Send Request | ||||
 | 1003 | SL 4000 | Body profile | 130 | Send Request | ||||
 | 1004 | SL 4000 | Handle profile | 130 | Send Request | ||||
 | 1005 | SL 4000 | Body profile | 190 | Send Request | ||||
 | 1006 | SL 4000 | Handle profile | 190 | Send Request | ||||
 | 1007 | SL 4000 | Combination profile | 140 | Send Request | ||||
 | 1008 | SL 4000 | Combination profile | 140 | Send Request | ||||
 | 1009 | SL 4000 | Body profile | 55 | Send Request | ||||
 | 1010 | SL 4000 | Handle profile | 55 | Send Request | ||||
 | 1011 | SL 4000 | Combination profile | 80 | Send Request | ||||
 | 1012 | SL 4000 | Combination profile | 80 | Send Request |
Art.
1012
Product Type
SL 4000
Model
Combination profile
Installation Depth
80
Art.
1011
Product Type
SL 4000
Model
Combination profile
Installation Depth
80
Art.
1010
Product Type
SL 4000
Model
Handle profile
Installation Depth
55
Art.
1009
Product Type
SL 4000
Model
Body profile
Installation Depth
55

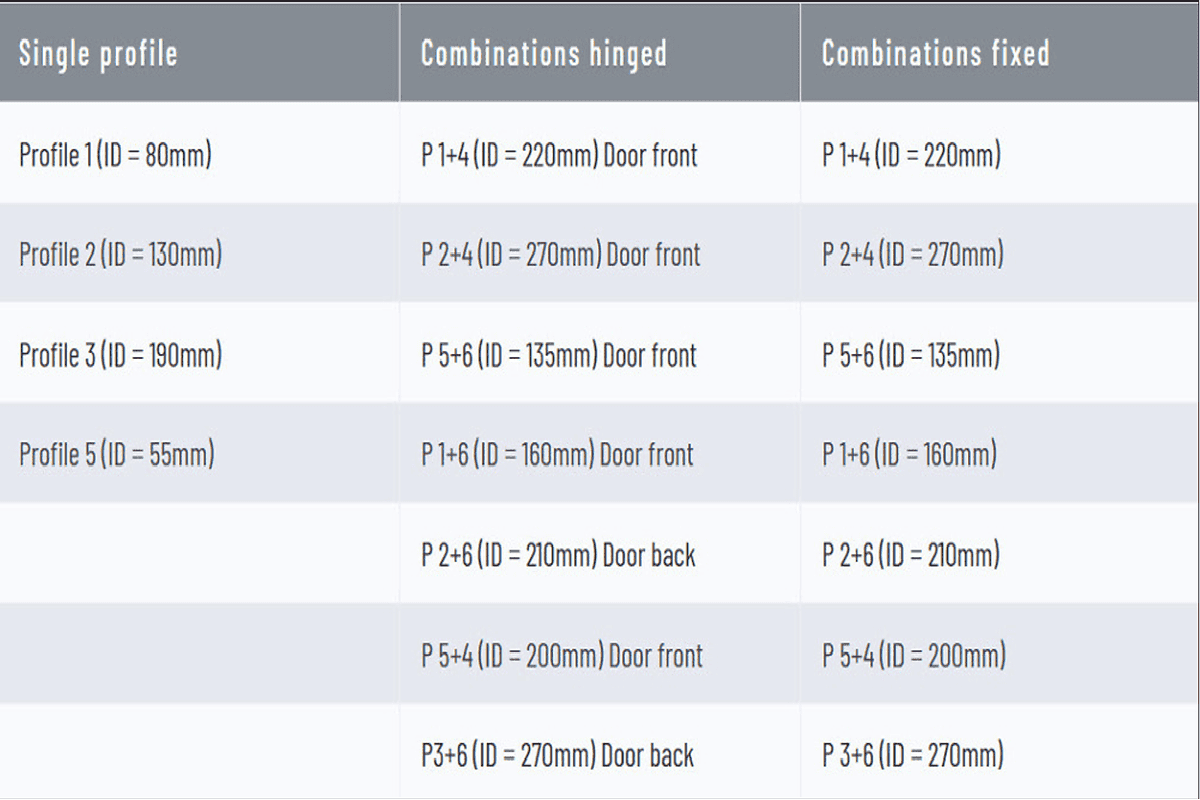

Profile combinations and installation depths
With 18 variants, the SL 4000 covers installation depths from 55 mm to 270 mm. The combinations can be hinged or fixed with screws. The rear panel can be hinged or screwed in place. The front frame concept of the operating enclosure allows controls from common manufacturers to be mounted directly via a mounting frame. Otherwise, the controls and operating units are mounted via a front panel.
Profile 2 + Profile 3 Hinged
Profile Combination
Rear Panel Screwed
The screwed rear wall is used to increase the stability of profile combinations as soon as the door is opened to the front.
Rear Panel Hinged
The hinged rear wall ensures easy access to the housing. Various turn bolt fasteners are available for this purpose.
Services
Unlock the Benefits of Our Services for Aluminium Control Panel Enclosures
Discover how our expert services can elevate the performance and reliability of your aluminium control panel enclosures. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece.
2
Painting in Special Colours
If our standard finish does not align with your vision or company branding, we can paint the enclosures in your chosen colour. Simply provide us with the desired RAL colour, texture, and gloss level.
3
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil.
