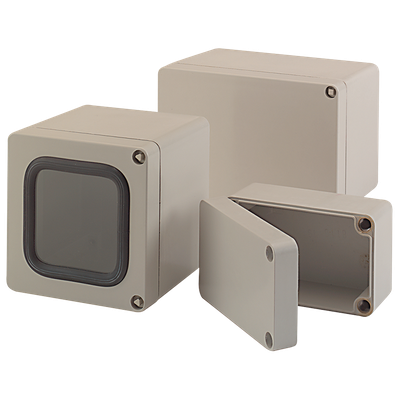

Mini Polyglas Control Cabinets
Small control cabinets with hidden external hinge
Features
Compact Design
Optional Viewing Pane
IP66
Technical Data
Material | |
|---|---|
| Enclosure: | Glass fibre-reinforced, thermoset polyester |
Colour | |
|---|---|
| RAL 7038, agate grey | |
Protection Class | |
|---|---|
| IP 66 according to EN 60529 | |
| Higher protection class available on request | |
Impact Resistance | |
|---|---|
| IK09 according to DIN EN 60068-2-75 | |
Temperature Resistance | |
|---|---|
| CR (Chloroprene) seal (standard): | -30°C to +90°C |
| VMQ (Silicone) seal (optional): | -60°C to +165°C |
Product Data & Accessories
| Expand | Art. | W x L x H | Colour | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|
 | 211220000 | 120 x 200 x 100 mm | Agate grey (RAL 7038) | Send Request | ||||
 | 211626000 | 160 x 260 x 100 mm | Agate grey (RAL 7038) | Send Request | ||||
 | 211634000 | 160 x 340 x 100 mm | Agate grey (RAL 7038) | Send Request | ||||
 | 212015000 | 200 x 150 x 100 mm | Agate grey (RAL 7038) | Send Request | ||||
 | 212020000 | 200 x 200 x 170 mm | Agate grey (RAL 7038) | Send Request | ||||
 | 212030000 | 200 x 300 x 170 mm | Agate grey (RAL 7038) | Send Request | ||||
 | 221220000 | 120 x 200 x 100 mm | Agate grey (RAL 7038) | Send Request | ||||
 | 221626000 | 160 x 260 x 100 mm | Agate grey (RAL 7038) | Send Request | ||||
 | 221634000 | 160 x 340 x 100 mm | Agate grey (RAL 7038) | Send Request | ||||
 | 222015000 | 200 x 150 x 100 mm | Agate grey (RAL 7038) | Send Request | ||||
 | 222020000 | 200 x 200 x 170 mm | Agate grey (RAL 7038) | Send Request | ||||
 | 222030000 | 200 x 300 x 170 mm | Agate grey (RAL 7038) | Send Request |
Art.
222030000
W x L x H
200 x 300 x 170 mm
Colour
Agate grey (RAL 7038)
Art.
222020000
W x L x H
200 x 200 x 170 mm
Colour
Agate grey (RAL 7038)
Art.
222015000
W x L x H
200 x 150 x 100 mm
Colour
Agate grey (RAL 7038)
Art.
221634000
W x L x H
160 x 340 x 100 mm
Colour
Agate grey (RAL 7038)
Services
Unlock the Benefits of Our Services for Electrical Control Cabinets
Discover how our expert services can elevate the performance and reliability of your Mini Polyglas Control Cabinets. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece.
2
Powder Coating in Custom Colours
If our standard finish does not align with your vision or company branding, we can powder coat the enclosures in your chosen colour. Simply provide us with the desired RAL colour, texture, and gloss level.
3
Passivation
Our enclosures are passivated using SurTec650, which protects the aluminium from corrosion and serves as an adhesion primer for painting. Alternatively, we can apply other surface treatments such as Alodine. Please contact us for further details.
4
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil.
5
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired.
6
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution.
7
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution.
8
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number.
