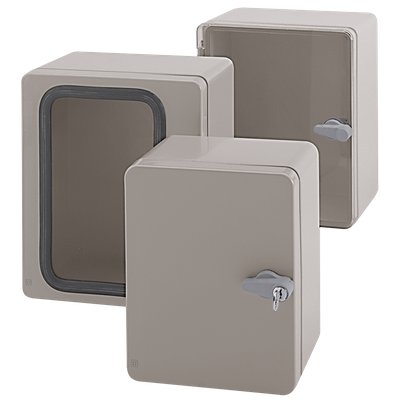

Polyester Small Switch Cabinets
Polyester control cabinets
Features
Standard Version or with Viewing Pane
Closure Ordered Separately
Technical Data
Material | |
|---|---|
| Enclosure: | Glass fibre-reinforced, thermoset polyester / ABS |
Colour | |
|---|---|
| Polyester: | RAL 7032, pebble grey |
| ABS | 7035, light grey |
Protection Class | |
|---|---|
| IP66 according to EN 60529 | |
Impact Resistance | |
|---|---|
| IK07 according to EN 60068-2-75 | |
Temperature Resistance | |
|---|---|
| CR (Chloroprene) seal (standard): | -30°C to +90°C |
| VMQ (Silicone) seal (optional): | -60°C to +165°C |
| ABS: | -30°C to +70°C |
| With viewing window: | -55°C to +80°C |
Burning Behaviour | |
|---|---|
| Polyester: | V0 / self-extinguishing, UL 94 |
| ABS: | HB, UL 94 |
Dielectric Strength | |
|---|---|
| Polyester: | 26 kV/mm, IEC 60243-1 |
| ABS: | 24 kV/mm, IEC 60243-1 |
Scope of Delivery | |
|---|---|
| Enclosure consisting of lower part and door; order door lock separately, press-in bushings in lower part for indoor and outdoor installation | |
Product Data & Accessories
| Expand | Art. | W x L x H | Model | Colour | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 212025000 | 200 x 250 x 150 mm | Pebble grey (RAL 7032) | Send Request | |||||
 | 212530000 | 250 x 300 x 170 mm | Pebble grey (RAL 7032) | Send Request | |||||
 | 222025000 | 200 x 250 x 150 mm | Pebble grey (RAL 7032) | Send Request | |||||
 | 222530000 | 250 x 300 x 170 mm | Pebble grey (RAL 7032) | Send Request |
Art.
222530000
W x L x H
250 x 300 x 170 mm
Colour
Pebble grey (RAL 7032)
Art.
222025000
W x L x H
200 x 250 x 150 mm
Colour
Pebble grey (RAL 7032)
Art.
212530000
W x L x H
250 x 300 x 170 mm
Colour
Pebble grey (RAL 7032)
Art.
212025000
W x L x H
200 x 250 x 150 mm
Colour
Pebble grey (RAL 7032)
