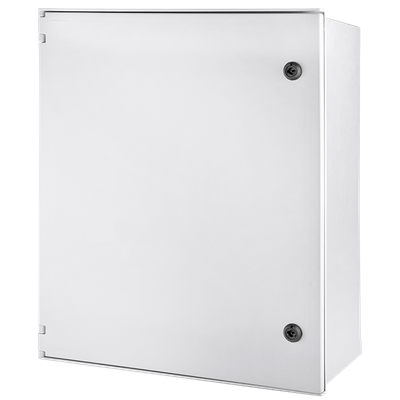

Polysafe Control Cabinet
Plastic control cabinet with and without viewing window
Features
Glass-Fibre-Reinforced Polyester
IP66
Light Grey RAL 7035
IK10
Technical Data
Material | |
|---|---|
| Enclosure: | Glass-fibre-reinforced polyester |
Colour | |
|---|---|
| Light grey, similar to RAL 7035 | |
Protection Class | |
|---|---|
| Up to IP 66/DIN EN 60529, depending on the model | |
| NEMA 3 / NEMA 250-2018 | |
Impact Resistance | |
|---|---|
| IK 10 / IEC 62262 | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Colour | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 42132100 | 250 x 300 x 140 mm | PS 321 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 42143200 | 300 x 400 x 200 mm | PS 432 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 42144200 | 400 x 400 x 200 mm | PS 442 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 42154200 | 400 x 500 x 200 mm | PS 542 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 42164200 | 400 x 600 x 230 mm | PS 642 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 42165200 | 500 x 600 x 230 mm | PS 652 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 42183200 | 300 x 800 x 230 mm | PS 832 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 42186300 | 600 x 800 x 300 mm | PS 863 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 42232100 | 250 x 300 x 140 mm | PS 321-T | Light grey, similar to RAL 7035 | Send Request | ||||
 | 42243200 | 300 x 400 x 200 mm | PS 432-T | Light grey, similar to RAL 7035 | Send Request | ||||
 | 42244200 | 400 x 400 x 200 mm | PS 442-T | Light grey, similar to RAL 7035 | Send Request | ||||
 | 42254200 | 400 x 500 x 200 mm | PS 542-T | Light grey, similar to RAL 7035 | Send Request | ||||
 | 42264200 | 400 x 600 x 230 mm | PS 642-T | Light grey, similar to RAL 7035 | Send Request | ||||
 | 42265200 | 500 x 600 x 230 mm | PS 652-T | Light grey, similar to RAL 7035 | Send Request | ||||
 | 42283200 | 300 x 800 x 230 mm | PS 832-T | Light grey, similar to RAL 7035 | Send Request | ||||
 | 42286300 | 600 x 800 x 300 mm | PS 863-T | Light grey, similar to RAL 7035 | Send Request |
Art.
42286300
W x L x H
600 x 800 x 300 mm
Product Type
PS 863-T
Colour
Light grey, similar to RAL 7035
Art.
42186300
W x L x H
600 x 800 x 300 mm
Product Type
PS 863
Colour
Light grey, similar to RAL 7035
Art.
42265200
W x L x H
500 x 600 x 230 mm
Product Type
PS 652-T
Colour
Light grey, similar to RAL 7035
Art.
42165200
W x L x H
500 x 600 x 230 mm
Product Type
PS 652
Colour
Light grey, similar to RAL 7035
Services
Unlock the Benefits of Our Services for Electrical Control Cabinet
Discover how our expert services can elevate the performance and reliability of your electrical control cabinet. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece.
2
Painting in Special Colour
If the colour does not match your concept or company design, we can also paint the enclosures in your desired hue. Simply inform us of the required RAL colour, texture, and gloss level. We also offer manufacturing of enclosures in special granules from approximately 250 pieces.
3
EMC Coating
To protect your electronics from electromagnetic interference, our plastic enclosures can be fitted with an EMC coating. We offer this coating using either a copper conductive lacquer or an aluminium vapour deposition process.
4
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil.
5
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired.
6
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution.
