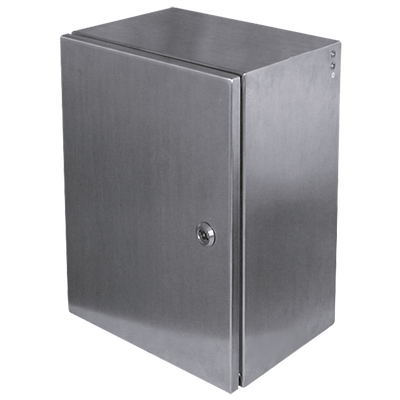

Stainless Steel IGS Enclosure
Compact wall cabinet IP66
Features
Individual Sizes and Designs Possible
Customisation Options Include Flange Openings
Viewing Window Available on Request
Technical Data
Material | |
|---|---|
| Stainless steel 1.25 mm or 1.5 mm; 1.4301/304 | |
| Other materials on request | |
Temperature Resistance | |
|---|---|
| VMQ (silicone) seal (standard): | -60 °C to +175 °C |
| EMC (silicone) seal optional: | -55°C to +200°C |
Protection Class | |
|---|---|
| IP 66 according to EN 60529 | |
| High pressure cleaner resistant (IP69K) on request | |
Surface | |
|---|---|
| Ground, grain 240 to 320 | |
| Other surface on request | |
Scope of Delivery | |
|---|---|
| Enclosure with hinged lid, double-bit lock, 4 bottom stampings with fastening holes and sealing plugs | |
Product Data & Accessories
| Expand | Art. | W x L x H | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|
 | 370022090 | 200 x 250 x 97 mm | Send Request | ||||
 | 370022150 | 200 x 250 x 157 mm | Send Request | ||||
 | 370032090 | 350 x 250 x 97 mm | Send Request | ||||
 | 370033160 | 300 x 300 x 167 mm | Send Request | ||||
 | 370044160 | 380 x 380 x 167 mm | Send Request | ||||
 | 370044210 | 380 x 380 x 217 mm | Send Request | ||||
 | 370053160 | 500 x 300 x 167 mm | Send Request | ||||
 | 370063160 | 600 x 300 x 167 mm | Send Request | ||||
 | 370064210 | 600 x 380 x 217 mm | Send Request |
Art.
370064210
W x L x H
600 x 380 x 217 mm
Art.
370063160
W x L x H
600 x 300 x 167 mm
Art.
370053160
W x L x H
500 x 300 x 167 mm
Art.
370044210
W x L x H
380 x 380 x 217 mm
