Variable profile enclosure in length and width with a slide-in aluminum front panel

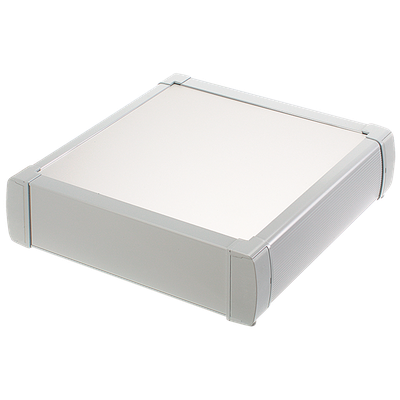

Aluplan Profile Enclosure

Ideal for wall, table or mobile use

Features

  • Profile in 2 heights

  • Length and width of the profiles according to customer requirements

  • Cover and base plates made of aluminum

  • 16 standard sizes for each height ex warehouse

Send Request

Technical Data

Material

Extruded profiles:Al Mg Si 0.5 powder-coated
Corners: Diecast zinc ZnAl 4 Cu 1, powder-coated
Corner caps:PA-GF 15
Corner part seal:TPV / TPE
Sponge rubber seal in profile groove:EPDM
For further details, see the technical information

Colour

Aluplan 50:Black, similar to RAL 9005
Aluplan 100:Light grey, similar to RAL 7035
Special colours available on request

Protection Class

IP65 (DIN EN 60529)

Scope of Delivery

2 front profiles including gasket, 2 side profiles including gasket, 4 die-cast corners, 4 corner piece gaskets, 4 cover caps, 16 screws and 4 rubber feet
Please order front panels separately

Product Data & Accessories

  • Unit foot for AP 10 | AP 10 GF

    Art. 64360060

  • Assembly kit and seal set for AP 10 | AP BFS 1

    Art. 64360010

  • Screw-on front panel for AP 10…, IP 65, 3 mm, natural-coloured anodised aluminium | AP 105050 FAS3-IP

    Art. 64345050

  • Hinge set for AP 10 | AP 10 SC1

    Art. 64360110

  • Hinge set for AP 10 | AP 10 SC4

    Art. 64360140

  • Assembly kit and seal set for AP 10 | AP FAS-IP

    Art. 64360040

  • Plug-in front panel for AP 10…, IP 65, 3 mm, natural-coloured anodised aluminium | AP 105050 FA3

    Art. 64325050

  • Lock set for AP 10 | AP 10 SHLO

    Art. 64360050

  • Handle for AP 10 | AP 10-50 HS

    Art. 64360250

  • Assembly kit and seal set for AP 10 | AP BFS 2

    Art. 64360020

  • Assembly kit and seal set for AP 10 | AP BFS 3

    Art. 64360030

  • For enclosures with front / side profile length 500 mm and higher | APW 50

    Art. 64350050

  • Hinge set for AP 10 | AP 10 SC3

    Art. 64360130

  • For AP 105050 | AP 105050 FAS3

    Art. 64335050

  • Hinge set for AP 10 | AP 10 SC2

    Art. 64360120

  • Unit foot for AP 10 | AP 10 GF

    Art. 64360060

  • Assembly kit and seal set for AP 10 | AP FAS-IP

    Art. 64360040

  • Assembly kit and seal set for AP 10 | AP BFS 1

    Art. 64360010

  • Hinge set for AP 10 | AP 10 SC3

    Art. 64360130

  • For AP 104040 | AP 104040 FAS3

    Art. 64334040

  • Lock set for AP 10 | AP 10 SHLO

    Art. 64360050

  • Handle for AP 10 | AP 10-40 HS

    Art. 64360240

  • Assembly kit and seal set for AP 10 | AP BFS 2

    Art. 64360020

  • Plug-in front panel for AP 10…, IP 65, 3 mm, natural-coloured anodised aluminium | AP 104040 FA3

    Art. 64324040

  • Hinge set for AP 10 | AP 10 SC1

    Art. 64360110

  • For enclosures with front / side profile length 400 mm and higher | APW 40

    Art. 64350040

  • Screw-on front panel for AP 10…, IP 65, 3 mm, natural-coloured anodised aluminium | AP 104040 FAS3-IP

    Art. 64344040

  • Hinge set for AP 10 | AP 10 SC2

    Art. 64360120

  • Hinge set for AP 10 | AP 10 SC4

    Art. 64360140

  • Assembly kit and seal set for AP 10 | AP BFS 3

    Art. 64360030

  • Assembly kit and seal set for AP 10 | AP BFS 1

    Art. 64360010

  • Assembly kit and seal set for AP 10 | AP BFS 3

    Art. 64360030

  • Hinge set for AP 10 | AP 10 SC4

    Art. 64360140

  • Handle for AP 10 | AP 10-30 HS

    Art. 64360230

  • Hinge set for AP 10 | AP 10 SC2

    Art. 64360120

  • Unit foot for AP 10 | AP 10 GF

    Art. 64360060

  • Assembly kit and seal set for AP 10 | AP FAS-IP

    Art. 64360040

  • Screw-on front panel for AP 10…, IP 65, 3 mm, natural-coloured anodised aluminium | AP 103030 FAS3-IP

    Art. 64343030

  • Lock set for AP 10 | AP 10 SHLO

    Art. 64360050

  • Hinge set for AP 10 | AP 10 SC1

    Art. 64360110

  • Assembly kit and seal set for AP 10 | AP BFS 2

    Art. 64360020

  • For AP 103030 | AP 103030 FAS3

    Art. 64333030

  • Plug-in front panel for AP 10…, IP 65, 3 mm, natural-coloured anodised aluminium | AP 103030 FA3

    Art. 64323030

  • For enclosures with front / side profile length 300 mm and higher | APW 30

    Art. 64350030

  • Hinge set for AP 10 | AP 10 SC3

    Art. 64360130

  • Hinge set for AP 10 | AP 10 SC2

    Art. 64360120

  • Assembly kit and seal set for AP 10 | AP BFS 3

    Art. 64360030

  • Handle for AP 10 | AP 10-20 HS

    Art. 64360220

  • For enclosures with front / side profile length 200 mm and higher | APW 20

    Art. 64350020

  • Unit foot for AP 10 | AP 10 GF

    Art. 64360060

  • Hinge set for AP 10 | AP 10 SC3

    Art. 64360130

  • Hinge set for AP 10 | AP 10 SC1

    Art. 64360110

  • Plug-in front panel for AP 10…, IP 65, 3 mm, natural-coloured anodised aluminium | AP 102020 FA3

    Art. 64322020

  • Assembly kit and seal set for AP 10 | AP FAS-IP

    Art. 64360040

  • Assembly kit and seal set for AP 10 | AP BFS 1

    Art. 64360010

  • Screw-on front panel for AP 10…, IP 65, 3 mm, natural-coloured anodised aluminium | AP 102020 FAS3-IP

    Art. 64342020

  • Hinge set for AP 10 | AP 10 SC4

    Art. 64360140

  • For AP 102020 | AP 102020 FAS3

    Art. 64332020

  • Assembly kit and seal set for AP 10 | AP BFS 2

    Art. 64360020

  • Lock set for AP 10 | AP 10 SHLO

    Art. 64360050

Services

Unlock the Benefits of Our Services for Aluplan Profile Enclosure

Discover how our expert services can elevate the performance and reliability of your Aluplan profil enclosure. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.

1

Mechanical Machining

We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece

Mechanical processing

2

Painting in Special Colour

If the colour does not match your concept or company design, we can also paint the enclosures in your desired hue. Simply inform us of the required RAL colour, texture, and gloss level. We also offer manufacturing of enclosures in special granules from approximately 250 pieces

Coating

3

Printing

If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil

Printing labeling

4

Engraving and Laser Marking

Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired

Engraving and laser marking

5

Procurement of Components

As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution

Procurement

6

Assembly

Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution

Assembly

7

Packaging and Logistics

Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number

Packing logistics
