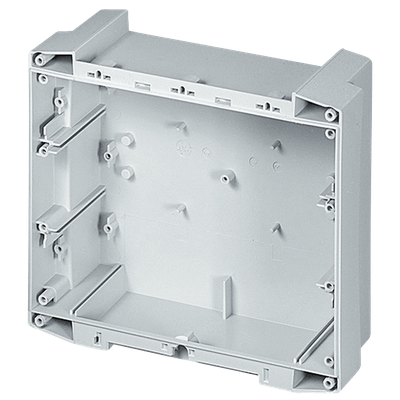

Bocard Base Parts
Protection class depending on combination IP40 up to IP66/IP68
Features
There are two different depths per size for the base parts
The enclosure color is similar to RAL7035
Technical Data
Material | |
|---|---|
| ABS, V-0 versions available on request. | |
Colour | |
|---|---|
| Light Grey, similar to RAL 7035 – special colours available on request. | |
Protection Class | |
|---|---|
| Depending on the model, ratings range from IP40 up to IP66, or IP68 (1.2 m immersion for 2 hours) according to DIN EN 60529. | |
Product data & accessories
| Expand | Art. | W x L x H | Product Type | Colour | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 20160124 | 173 x 195 x 70 mm | BCD 160 UT-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20160135 | 195 x 70 x 173 mm | BCD 160 UT-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20160224 | 195 x 35 x 173 mm | BCD 160 UT-0,5-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20160235 | 195 x 35 x 173 mm | BCD 160 UT-0,5-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20200124 | 198 x 225 x 80 mm | BCD 200 UT-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20200135 | 225 x 80 x 198 mm | BCD 200 UT-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20200224 | 225 x 40 x 198 mm | BCD 200 UT-0,5-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20200235 | 225 x 40 x 198 mm | BCD 200 UT-0,5-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20250124 | 260 x 105 x 228 mm | BCD 250 UT-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20250135 | 260 x 105 x 228 mm | BCD 250 UT-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20250224 | 260 x 50 x 228 mm | BCD 250 UT-0,5-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20250235 | 260 x 50 x 228 mm | BCD 250 UT-0,5-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20310135 | 320 x 105 x 283 mm | BCD 310 UT-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20310235 | 320 x 71 x 283 mm | BCD 310 UT-0,5-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20400135 | 400 x 120 x 338 mm | BCD 400 UT-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20400235 | 400 x 71,5 x 338 mm | BCD 400 UT-0,5-7035 | Light grey, similar to RAL 7035 | Send Request |
Art.
20400135
W x L x H
400 x 120 x 338 mm
Product Type
BCD 400 UT-7035
Colour
Light grey, similar to RAL 7035
Art.
20400235
W x L x H
400 x 71,5 x 338 mm
Product Type
BCD 400 UT-0,5-7035
Colour
Light grey, similar to RAL 7035
Art.
20310135
W x L x H
320 x 105 x 283 mm
Product Type
BCD 310 UT-7035
Colour
Light grey, similar to RAL 7035
Art.
20310235
W x L x H
320 x 71 x 283 mm
Product Type
BCD 310 UT-0,5-7035
Colour
Light grey, similar to RAL 7035
Services
Unlock the Benefits of Our Services for Bocard Base Parts
Discover how our expert services can elevate the performance and reliability of your Bocard base parts. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece
2
Powder Coating in Custom Colours
If our standard finish does not align with your vision or company branding, we can powder coat the enclosures in your chosen colour. Simply provide us with the desired RAL colour, texture, and gloss level
3
Passivation
Our enclosures are passivated using SurTec650, which protects the aluminium from corrosion and serves as an adhesion primer for painting. Alternatively, we can apply other surface treatments such as Alodine. Please contact us for further details
4
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil
5
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired
6
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution
7
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution
8
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number
)
