Bocard Clear Lid Hinged
Protection class IP66/IP68
Features

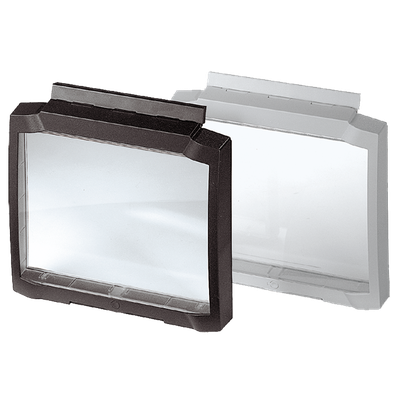

The upper section of the Clear Lid Hinged is available in two colour variants – one similar to RAL 7024 and the other to RAL 7035.
Technical Data
Material | |
|---|---|
| ABS and PC, V-0 versions available on request | |
| Seal: | CR/PU foamed |
Colour | |
|---|---|
| Graphite Grey, similar to RAL 7024, or Light Grey, similar to RAL 7035 – special colours available on request. | |
Protection Class | |
|---|---|
| IP66, IP68 (1.2 m immersion for 2 hours) DIN EN60529 | |
Accessories | |
|---|---|
| Lock SHLO 402 | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Colour | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 20171024 | 199 x 36,5 x 179,2 mm | BCD 165 OT-G-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20171035 | 199 x 36,5 x 179,2 mm | BCD 165 OT-G-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20211024 | 229 x 36,1 x 204,2 mm | BCD 205 OT-G-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20211035 | 229 x 36,1 x 204,2 mm | BCD 205 OT-G-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20261024 | 264 x 36 x 234,2 mm | BCD 255 OT-G-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20261035 | 264 x 36 x 234,2 mm | BCD 255 OT-G-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20321024 | 324 x 37,2 x 289,2 mm | BCD 315 OT-G-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20321035 | 324 x 37,2 x 289,2 mm | BCD 315 OT-G-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20411024 | 404 x 37,5 x 344,2 mm | BCD 405 OT-G-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20411035 | 404 x 37,5 x 344,2 mm | BCD 405 OT-G-7035 | Light grey, similar to RAL 7035 | Send Request |
Art.
20411035
W x L x H
404 x 37,5 x 344,2 mm
Product Type
BCD 405 OT-G-7035
Colour
Light grey, similar to RAL 7035
Art.
20411024
W x L x H
404 x 37,5 x 344,2 mm
Product Type
BCD 405 OT-G-7024
Colour
Graphite grey, similar to RAL 7024
Art.
20321035
W x L x H
324 x 37,2 x 289,2 mm
Product Type
BCD 315 OT-G-7035
Colour
Light grey, similar to RAL 7035
Art.
20321024
W x L x H
324 x 37,2 x 289,2 mm
Product Type
BCD 315 OT-G-7024
Colour
Graphite grey, similar to RAL 7024
Services
Unlock the Benefits of Our Services for Bocard Clear Lid Hinged
Discover how our expert services can elevate the performance and reliability of your Bocard clear lid hinged. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece
2
Powder Coating in Custom Colours
If our standard finish does not align with your vision or company branding, we can powder coat the enclosures in your chosen colour. Simply provide us with the desired RAL colour, texture, and gloss level
3
Passivation
Our enclosures are passivated using SurTec650, which protects the aluminium from corrosion and serves as an adhesion primer for painting. Alternatively, we can apply other surface treatments such as Alodine. Please contact us for further details
4
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil
5
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired
6
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution
7
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution
8
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number
)
