Bocard Foil Lid Hinged
Protection class IP66/IP68
Features

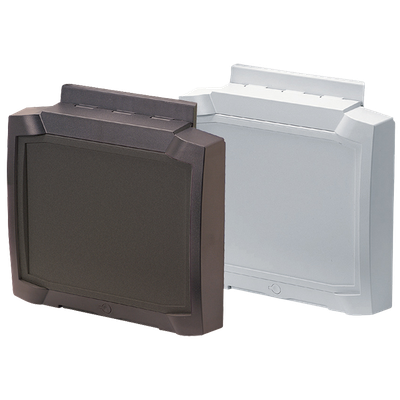

The hinged foil lid is available in two colours – one similar to RAL 7024 and the other similar to RAL 7035.
Technical Data
Material | |
|---|---|
| ABS, V-0 versions available on request | |
| Seal: | CR/PU foamed |
Colour | |
|---|---|
| Graphite Grey, similar to RAL 7024, or Light Grey, similar to RAL 7035 – special colours available on request. | |
Protection Class | |
|---|---|
| IP66, IP68 (1.2 m immersion for 2 hours) according to DIN EN 60529. | |
Accessories | |
|---|---|
| Lock SHLO 402 | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Colour | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 20161524 | 199 x 36,5 x 179,2 mm | BCD 160 OT-FSC-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20161535 | 199 x 36,5 x 179,2 mm | BCD 160 OT-FSC-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20201524 | 229 x 36,1 x 204,2 mm | BCD 200 OT-FSC-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20201535 | 229 x 36,1 x 204,2 mm | BCD 200 OT-FSC-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20251524 | 264 x 36 x 234,2 mm | BCD 250 OT-FSC-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20251535 | 264 x 36 x 234,2 mm | BCD 250 OT-FSC-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20311524 | 324 x 37,2 x 289,2 mm | BCD 310 OT-FSC-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20311535 | 324 x 37,2 x 289,2 mm | BCD 310 OT-FSC-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 20401524 | 404 x 37,5 x 344,2 mm | BCD 400 OT-FSC-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 20401535 | 404 x 37,5 x 344,2 mm | BCD 400 OT-FSC-7035 | Light grey, similar to RAL 7035 | Send Request |
Art.
20401535
W x L x H
404 x 37,5 x 344,2 mm
Product Type
BCD 400 OT-FSC-7035
Colour
Light grey, similar to RAL 7035
Art.
20401524
W x L x H
404 x 37,5 x 344,2 mm
Product Type
BCD 400 OT-FSC-7024
Colour
Graphite grey, similar to RAL 7024
Art.
20311535
W x L x H
324 x 37,2 x 289,2 mm
Product Type
BCD 310 OT-FSC-7035
Colour
Light grey, similar to RAL 7035
Art.
20311524
W x L x H
324 x 37,2 x 289,2 mm
Product Type
BCD 310 OT-FSC-7024
Colour
Graphite grey, similar to RAL 7024
