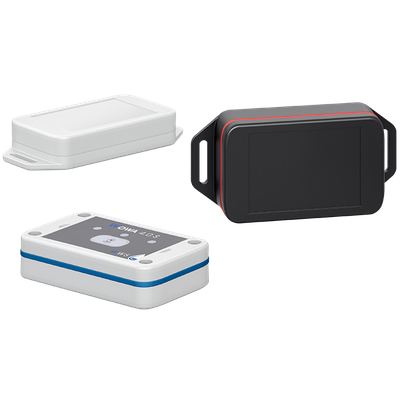

BoLink IoT Enclosure
Sensor Enclosure
Features
3 basic sizes & 4 heights
2 colours: similar to black RAL 9005, white similar to RAL 9003
5 variants: without wall brackets, with wall brackets, with wall brackets and lid fixing on top, with ventilation, with ventilation and wall brackets
Design seal optional
PC material suitable for outdoor use due to f1-listing according to UL 746C
Technical Data
Material | |
|---|---|
| Enclosure: | PC UL 94 V0 |
| Seal: | TPE |
| For further details, see the technical information | |
Colour | |
|---|---|
| Black similar to RAL 9005 | |
| White similar to RAL 9003 | |
| Special colours on request | |
Protection Class | |
|---|---|
| IP40 | With seal IP65 / DIN EN 60529 |
| NEMA 1 | With seal NEMA 3 / NEMA 250-2018 |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Colour | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 16174303 | 42.400000000000006 x 70.4 x 15.5 mm | BL 704015-9003 | White, similar to RAL 9003 | Send Request | ||||
 | 16174305 | 42.400000000000006 x 70.4 x 15.5 mm | BL 704015-9005 | Black, similar to RAL 9005 | Send Request | ||||
 | 16174333 | 42.400000000000006 x 70.4 x 15.5 mm | BL 704015 WL2-9003 | White, similar to RAL 9003 | Send Request | ||||
 | 16174335 | 42.400000000000006 x 70.4 x 15.5 mm | BL 704015 WL2-9005 | Black, similar to RAL 9005 | Send Request | ||||
 | 16174363 | 42.400000000000006 x 70.4 x 15.5 mm | BL 704015 WL2 DO-9003 | White, similar to RAL 9003 | Send Request | ||||
 | 16174365 | 42.400000000000006 x 70.4 x 15.5 mm | BL 704015 WL2 DO-9005 | Black, similar to RAL 9005 | Send Request | ||||
 | 16174403 | 42.9 x 70.9 x 22 mm | BL 704020-9003 | White, similar to RAL 9003 | Send Request | ||||
 | 16174405 | 42.9 x 70.9 x 22 mm | BL 704020-9005 | Black, similar to RAL 9005 | Send Request | ||||
 | 16174433 | 42.9 x 70.9 x 22 mm | BL 704020 WL2-9003 | White, similar to RAL 9003 | Send Request | ||||
 | 16174435 | 42.9 x 70.9 x 22 mm | BL 704020 WL2-9005 | Black, similar to RAL 9005 | Send Request | ||||
 | 16174463 | 42.9 x 70.8 x 22 mm | BL 704020 WL2 DO-9003 | White, similar to RAL 9003 | Send Request | ||||
 | 16174465 | 42.9 x 70.8 x 22 mm | BL 704020 WL2 DO-9005 | Black, similar to RAL 9005 | Send Request | ||||
 | 16174503 | 43.2 x 71.2 x 26 mm | BL 704025-9003 | White, similar to RAL 9003 | Send Request | ||||
 | 16174505 | 43.2 x 71.2 x 26 mm | BL 704025-9005 | Black, similar to RAL 9005 | Send Request | ||||
 | 16174533 | 43.2 x 71.2 x 26 mm | BL 704025 WL2-9003 | White, similar to RAL 9003 | Send Request | ||||
 | 16174535 | 43.2 x 71.2 x 26 mm | BL 704025 WL2-9005 | Black, similar to RAL 9005 | Send Request | ||||
 | 16174563 | 43.2 x 71.1 x 26 mm | BL 704025 WL2 DO-9003 | White, similar to RAL 9003 | Send Request | ||||
 | 16174565 | 43.2 x 71.1 x 26 mm | BL 704025 WL2 DO-9005 | Black, similar to RAL 9005 | Send Request | ||||
 | 35150015 | 75 x 130 x 26 mm | BOP 500-9005 | Black, similar to RAL 9005 | Send Request | ||||
 | 35150016 | 75 x 130 x 26 mm | BOP 500-9016 | White, similar to RAL 9016 | Send Request | ||||
 | 35150025 | 75 x 130 x 26 mm | BOP 500 BE4MC-9005 | Black, similar to RAL 9005 | Send Request | ||||
 | 35150026 | 75 x 130 x 26 mm | BOP 500 BE4MC-9016 | White, similar to RAL 9016 | Send Request | ||||
 | 35152015 | 75 x 130 x 17.5 mm | BOP 520-9005 | Black, similar to RAL 9005 | Send Request | ||||
 | 35152016 | 75 x 130 x 17.5 mm | BOP 520-9016 | White, similar to RAL 9016 | Send Request | ||||
 | 35170015 | 90 x 165 x 34 mm | BOP 700-9005 | Black, similar to RAL 9005 | Send Request | ||||
 | 35170016 | 90 x 165 x 34 mm | BOP 700-9016 | White, similar to RAL 9016 | Send Request | ||||
 | 35170025 | 90 x 165 x 34 mm | BOP 700 BE4MN-9005 | Black, similar to RAL 9005 | Send Request | ||||
 | 35170026 | 90 x 165 x 34 mm | BOP 700 BE4MN-9016 | White, similar to RAL 9016 | Send Request |
Art.
16174535
W x L x H
43.2 x 71.2 x 26 mm
Product Type
BL 704025 WL2-9005
Colour
Black, similar to RAL 9005
Art.
16174533
W x L x H
43.2 x 71.2 x 26 mm
Product Type
BL 704025 WL2-9003
Colour
White, similar to RAL 9003
Art.
16174505
W x L x H
43.2 x 71.2 x 26 mm
Product Type
BL 704025-9005
Colour
Black, similar to RAL 9005
Art.
16174503
W x L x H
43.2 x 71.2 x 26 mm
Product Type
BL 704025-9003
Colour
White, similar to RAL 9003
Services
Unlock the Benefits of Our Services for BoLink IoT Electronics Enclosure
Discover how our expert services can elevate the performance and reliability of your BoLink IoT electronics enclosure. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece
2
Painting in Special Colour
If the colour does not match your concept or company design, we can also paint the enclosures in your desired hue. Simply inform us of the required RAL colour, texture, and gloss level. We also offer manufacturing of enclosures in special granules from approximately 250 pieces
3
EMC Coating
To protect your electronics from electromagnetic interference, our plastic enclosures can be fitted with an EMC coating. We offer this coating using either a copper conductive lacquer or an aluminium vapour deposition process
4
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil
5
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired
6
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution
7
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution
8
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number
)
