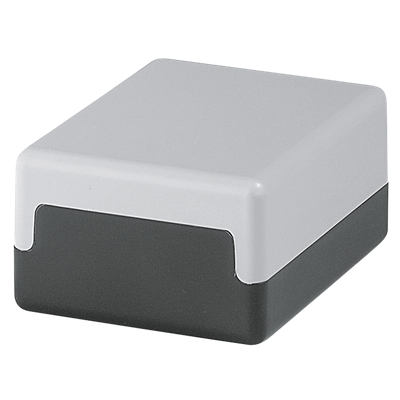

Element Electronics Enclosure
Cost-effective electronics enclosure
Features
Easy access to your electronics
Components can be installed very quickly
Enclosure with or without air vents
Technical Data
Material | |
|---|---|
| Enclosure: | PS (polystyrene) |
| For further details, see the technical information | |
Colour | |
|---|---|
| Lid: | Light grey, similar to RAL 7035 |
| Base: | Graphite grey, similar to RAL 7038 |
| Special colours available on request | |
Protection Class | |
|---|---|
| Plain: | IP 40 (DIN EN 60529) |
| With air vents: | IP30 (DIN EN 60529) |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Colour | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 05406000 | 50 x 65 x 30 mm | E 406 | light grey/graphite grey | Send Request | ||||
 | 05406700 | 50 x 65 x 31 mm | E 406 F | grey | Send Request | ||||
 | 05408000 | 50 x 65 x 45 mm | E 408 | light grey/graphite grey | Send Request | ||||
 | 05410002 | 50 x 100 x 25 mm | E 410 | light grey/graphite grey | Send Request | ||||
 | 05410700 | 50 x 100 x 26 mm | E 410 F | grey | Send Request | ||||
 | 05420002 | 50 x 100 x 40 mm | E 420 | light grey/graphite grey | Send Request | ||||
 | 05420700 | 50 x 100 x 41 mm | E 420 F | grey | Send Request | ||||
 | 05430002 | 65 x 120 x 40 mm | E 430 | light grey/graphite grey | Send Request | ||||
 | 05430500 | 65 x 120 x 40 mm | E 430 A | grey | Send Request | ||||
 | 05430700 | 65 x 120 x 41 mm | E 430 F | grey | Send Request | ||||
 | 05435000 | 65 x 120 x 65 mm | E 435 | light grey/graphite grey | Send Request | ||||
 | 05440002 | 80 x 150 x 55 mm | E 440 | light grey/graphite grey | Send Request | ||||
 | 05440700 | 80 x 150 x 56 mm | E 440 F | grey | Send Request | ||||
 | 05445000 | 80 x 150 x 80 mm | E 445 | light grey/graphite grey | Send Request | ||||
 | 05450002 | 110 x 188 x 70 mm | E 450 | light grey/graphite grey | Send Request | ||||
 | 05450700 | 110 x 188 x 71 mm | E 450 F | grey | Send Request | ||||
 | 05460000 | 110 x 188 x 100 mm | E 460 | light grey/graphite grey | Send Request | ||||
 | 05470000 | 110 x 188 x 120 mm | E 470 | grey | Send Request |
Art.
05470000
W x L x H
110 x 188 x 120 mm
Product Type
E 470
Colour
grey
Art.
05460000
W x L x H
110 x 188 x 100 mm
Product Type
E 460
Colour
light grey/graphite grey
Art.
05450700
W x L x H
110 x 188 x 71 mm
Product Type
E 450 F
Colour
grey
Art.
05450002
W x L x H
110 x 188 x 70 mm
Product Type
E 450
Colour
light grey/graphite grey
Services
Unlock the Benefits of Our Services for Element Electronics Enclosure
Discover how our expert services can elevate the performance and reliability of your Element electronics enclosure. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece
2
Painting in Special Colour
If the colour does not match your concept or company design, we can also paint the enclosures in your desired hue. Simply inform us of the required RAL colour, texture, and gloss level. We also offer manufacturing of enclosures in special granules from approximately 250 pieces
3
EMC Coating
To protect your electronics from electromagnetic interference, our plastic enclosures can be fitted with an EMC coating. We offer this coating using either a copper conductive lacquer or an aluminium vapour deposition process
4
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil
5
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired
6
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution
7
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution
8
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number
)
