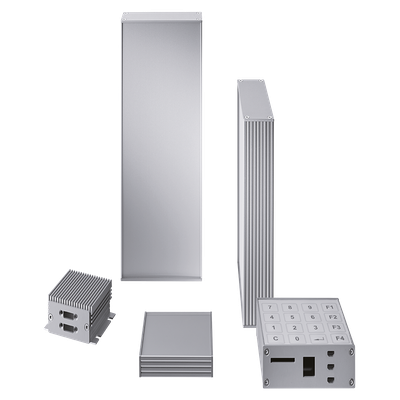

Filotec Profile Enclosure
Aluminium profile enclosure series in many variants
Features
More than 100 standard enclosures, combinations of different widths or heights
Special lenghts available on request
Anodised aluminium end cover
Technical Data
Material | |
|---|---|
| Enclosure: | Al Mg Si 0.5 anodized |
| For further details, see the technical information | |
Colour | |
|---|---|
| Natural-coloured anodised | |
Protection Class | |
|---|---|
| IP40 / DIN EN 60529 | Rated up to IP65 (DIN EN 60529) |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|
 | 97113000 | 1000 x 105 x 24 mm | F 1024-1000 | Send Request | ||||
 | 97114000 | 1000 x 105 x 28 mm | F 1028-1000 | Send Request | ||||
 | 97115000 | 1000 x 105 x 32 mm | F 1032-1000 | Send Request | ||||
 | 97116000 | 1000 x 105 x 36 mm | F 1036-1000 | Send Request | ||||
 | 97117000 | 1000 x 105 x 40 mm | F 1040-1000 | Send Request | ||||
 | 97118000 | 1000 x 105 x 48 mm | F 1048-1000 | Send Request | ||||
 | 97131000 | 1000 x 33.6 x 16.4 mm | F 316-1000 | Send Request | ||||
 | 97132000 | 1000 x 33.6 x 20.4 mm | F 320-1000 | Send Request | ||||
 | 97133000 | 1000 x 33.6 x 24.4 mm | F 324-1000 | Send Request | ||||
 | 97141000 | 1000 x 41.6 x 16.4 mm | F 416-1000 | Send Request | ||||
 | 97142000 | 1000 x 41.6 x 20.4 mm | F 420-1000 | Send Request | ||||
 | 97143000 | 1000 x 41.6 x 24.4 mm | F 424-1000 | Send Request | ||||
 | 97151000 | 1000 x 55.3 x 16.4 mm | F 516-1000 | Send Request | ||||
 | 97152000 | 1000 x 55.3 x 20.4 mm | F 520-1000 | Send Request | ||||
 | 97153000 | 1000 x 55.3 x 24.4 mm | F 524-1000 | Send Request | ||||
 | 97171000 | 1000 x 71.8 x 16.4 mm | F 716-1000 | Send Request | ||||
 | 97172000 | 1000 x 71.8 x 20.4 mm | F 720-1000 | Send Request | ||||
 | 97173000 | 1000 x 71.8 x 24.4 mm | F 724-1000 | Send Request | ||||
 | 97185000 | 1000 x 165 x 33 mm | F 1632-1000 | Send Request | ||||
 | 97216000 | 1000 x 105 x 36 mm | F 1036-1000 WL | Send Request | ||||
 | 97217000 | 1000 x 105 x 40 mm | F 1040-1000 WL | Send Request | ||||
 | 97218000 | 1000 x 105 x 48 mm | F 1048-1000 WL | Send Request | ||||
 | 97252000 | 1000 x 55.3 x 20.4 mm | F 520-1000 WL | Send Request | ||||
 | 97253000 | 1000 x 55.3 x 24.4 mm | F 524-1000 WL | Send Request | ||||
 | 97418000 | 1000 x 105 x 48 mm | F 1048-1000 KWL | Send Request | ||||
 | 97453000 | 1000 x 55.3 x 24.4 mm | F 524-1000 KWL | Send Request |
Art.
97185000
W x L x H
1000 x 165 x 33 mm
Product Type
F 1632-1000
Art.
97418000
W x L x H
1000 x 105 x 48 mm
Product Type
F 1048-1000 KWL
Art.
97218000
W x L x H
1000 x 105 x 48 mm
Product Type
F 1048-1000 WL
Art.
97118000
W x L x H
1000 x 105 x 48 mm
Product Type
F 1048-1000
Filotec in motion
Services
Unlock the Benefits of Our Services for Filotec Profile Enclosure
Discover how our expert services can elevate the performance and reliability of your Filotec profile enclosure. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece
2
Painting in Special Colour
If the colour does not match your concept or company design, we can also paint the enclosures in your desired hue. Simply inform us of the required RAL colour, texture, and gloss level. We also offer manufacturing of enclosures in special granules from approximately 250 pieces
3
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil
4
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired
5
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution
6
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution
7
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number
)
