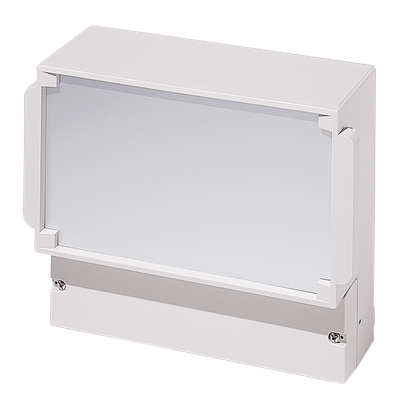

RegloCard Plus Wall-Mounted Enclosure with Aluminum Front Plate
Features
Front panel thickness up to 3 mm
Front panel screws integrated in cover frame
Pre-punchings in the terminal block
Technical Data
Material | |
|---|---|
| Enclosure: | ABS |
Colour | |
|---|---|
| Light gray, similar to RAL 7035, special colours on request | |
Protection Class | |
|---|---|
| Depending on the model up to IP65 (DIN EN60529) | |
Scope of Delivery | |
|---|---|
| Base, covering frame, terminal compartment lid, screws | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Colour | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 41130009 | 186 x 131 x 81 mm | RCP 130 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 41131009 | 186 x 131 x 81 mm | RCPM 130 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 41160009 | 161 x 166 x 71 mm | RCP 160 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 41161009 | 161 x 166 x 71 mm | RCPM 160 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 41170009 | 161 x 166 x 99 mm | RCP 170 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 41171009 | 161 x 166 x 99 mm | RCPM 170 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 41200009 | 185 x 213 x 82.5 mm | RCP 200 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 41201009 | 185 x 213 x 82.5 mm | RCPM 200 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 41250009 | 217 x 257 x 110.5 mm | RCP 250 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 41251009 | 217 x 257 x 110.5 mm | RCPM 250 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 41310009 | 261 x 296 x 110.5 mm | RCP 310 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 41311009 | 261 x 296 x 110.5 mm | RCPM 310 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 41350009 | 281 x 296 x 136 mm | RCP 350 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 41400009 | 318.6 x 363.4 x 128.5 mm | RCP 400 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 41401009 | 318.6 x 363.4 x 128.5 mm | RCPM 400 | Light grey, similar to RAL 7035 | Send Request |
Art.
41401009
W x L x H
318.6 x 363.4 x 128.5 mm
Product Type
RCPM 400
Colour
Light grey, similar to RAL 7035
Art.
41400009
W x L x H
318.6 x 363.4 x 128.5 mm
Product Type
RCP 400
Colour
Light grey, similar to RAL 7035
Art.
41350009
W x L x H
281 x 296 x 136 mm
Product Type
RCP 350
Colour
Light grey, similar to RAL 7035
Art.
41311009
W x L x H
261 x 296 x 110.5 mm
Product Type
RCPM 310
Colour
Light grey, similar to RAL 7035
Services
Unlock the Benefits of Our Services for RegloCard Plus Wall-Mounted Enclosure with Aluminum Front Plate
Discover how our expert services can elevate the performance and reliability of your RegloCard Plus wall-mounted enclosure with aluminum front plate. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece
2
Painting in Special Colour
If the colour does not match your concept or company design, we can also paint the enclosures in your desired hue. Simply inform us of the required RAL colour, texture, and gloss level. We also offer manufacturing of enclosures in special granules from approximately 250 pieces
3
EMC Coating
To protect your electronics from electromagnetic interference, our plastic enclosures can be fitted with an EMC coating. We offer this coating using either a copper conductive lacquer or an aluminium vapour deposition process
4
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil
5
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired
6
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution
7
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution
8
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number
)
