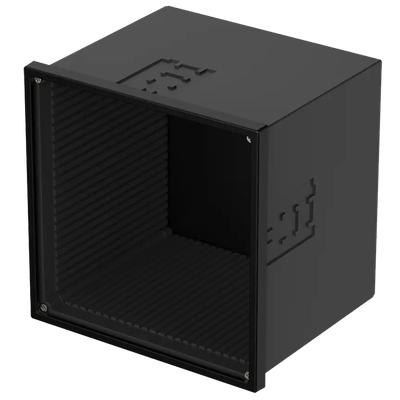

Uninorm Electronics Enclosure

Panel mounting enclosure according to DIN IEC61554

Features

DIN 43700-compliant plastic enclosure with easy assembly
36 versions per DIN IEC 61554 for the perfect fit
Versatile mounting with clips and optional clear rubber covers (IP65)

Technical Data

Material
Enclosure:	Modified PPE+PS (SE1 GFN1)
For further details, see technical information

Colour
Black, similar to RAL 9005 (special colours on request)

Protection Class
Depending on the model:	IP40 or IP65

Scope of Delivery
NGS...:	Enclosure, standard front frame, back cover and screws
NGS 9806-GR:	Enclosure, standard front frame and 2 clamping elements

Product Data & Accessories

Art.	W x L x H	Product Type	Colour
17480601	48 x 48 x 63 mm	NGS 4806	Black, similar to RAL 9005	Send Request
17480801	48 x 48 x 85 mm	NGS 4808	Black, similar to RAL 9005	Send Request
17481001	48 x 48 x 109.5 mm	NGS 4810	Black, similar to RAL 9005	Send Request
17481101	48 x 48 x 119 mm	NGS 4811	Black, similar to RAL 9005	Send Request
17481301	48 x 48 x 141 mm	NGS 4813	Black, similar to RAL 9005	Send Request
17740601	72 x 144 x 64 mm	NGS 7406	Black, similar to RAL 9005	Send Request
17740801	72 x 144 x 86 mm	NGS 7408	Black, similar to RAL 9005	Send Request
17741001	72 x 144 x 110.5 mm	NGS 7410	Black, similar to RAL 9005	Send Request
17741101	72 x 144 x 120 mm	NGS 7411	Black, similar to RAL 9005	Send Request
17741301	72 x 144 x 142 mm	NGS 7413	Black, similar to RAL 9005	Send Request
17741601	72 x 144 x 166.5 mm	NGS 7416	Black, similar to RAL 9005	Send Request
17770601	72 x 72 x 63 mm	NGS 7706	Black, similar to RAL 9005	Send Request
17770801	72 x 72 x 85 mm	NGS 7708	Black, similar to RAL 9005	Send Request
17771001	72 x 72 x 109.5 mm	NGS 7710	Black, similar to RAL 9005	Send Request
17771101	72 x 72 x 119 mm	NGS 7711	Black, similar to RAL 9005	Send Request
17771301	72 x 72 x 141 mm	NGS 7713	Black, similar to RAL 9005	Send Request
17771601	72 x 72 x 165.5 mm	NGS 7716	Black, similar to RAL 9005	Send Request
17940601	48 x 96 x 63 mm	NGS 9406	Black, similar to RAL 9005	Send Request
17940801	48 x 96 x 85 mm	NGS 9408	Black, similar to RAL 9005	Send Request
17941001	48 x 96 x 109.5 mm	NGS 9410	Black, similar to RAL 9005	Send Request
17941101	48 x 96 x 119 mm	NGS 9411	Black, similar to RAL 9005	Send Request
17941301	48 x 96 x 141 mm	NGS 9413	Black, similar to RAL 9005	Send Request
17941601	48 x 96 x 165.5 mm	NGS 9416	Black, similar to RAL 9005	Send Request
17960601	96 x 96 x 63 mm	NGS 9606	Black, similar to RAL 9005	Send Request
17960801	96 x 96 x 85 mm	NGS 9608	Black, similar to RAL 9005	Send Request
17961001	96 x 96 x 109.5 mm	NGS 9610	Black, similar to RAL 9005	Send Request
17961101	96 x 96 x 119 mm	NGS 9611	Black, similar to RAL 9005	Send Request
17961301	96 x 96 x 141 mm	NGS 9613	Black, similar to RAL 9005	Send Request
17961601	96 x 96 x 165.5 mm	NGS 9616	Black, similar to RAL 9005	Send Request
17981001	144 x 144 x 110.5 mm	NGS 9810	Black, similar to RAL 9005	Send Request
17981101	144 x 144 x 120 mm	NGS 9811	Black, similar to RAL 9005	Send Request
17981301	144 x 144 x 142 mm	NGS 9813	Black, similar to RAL 9005	Send Request
17981601	144 x 144 x 166.5 mm	NGS 9816	Black, similar to RAL 9005	Send Request

Art.

17981601

W x L x H

144 x 144 x 166.5 mm

Product Type

NGS 9816

Colour

Black, similar to RAL 9005

Send Request

Art.

17981301

W x L x H

144 x 144 x 142 mm

Product Type

NGS 9813

Colour

Black, similar to RAL 9005

Send Request

Art.

17981101

W x L x H

144 x 144 x 120 mm

Product Type

NGS 9811

Colour

Black, similar to RAL 9005

Send Request

Art.

17981001

W x L x H

144 x 144 x 110.5 mm

Product Type

NGS 9810

Colour

Black, similar to RAL 9005

Send Request

Services

Unlock the Benefits of Our Services for Uninorm Electronics Enclosure

Discover how our expert services can elevate the performance and reliability of your Uninorm electronics enclosure. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.

Mechanical Machining

We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece

Painting in Special Colour

If the colour does not match your concept or company design, we can also paint the enclosures in your desired hue. Simply inform us of the required RAL colour, texture, and gloss level. We also offer manufacturing of enclosures in special granules from approximately 250 pieces

EMC Coating

To protect your electronics from electromagnetic interference, our plastic enclosures can be fitted with an EMC coating. We offer this coating using either a copper conductive lacquer or an aluminium vapour deposition process

Printing

If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil

Engraving and Laser Marking

Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired

Procurement of Components

As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution

Assembly

Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution

Packaging and Logistics

Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number
