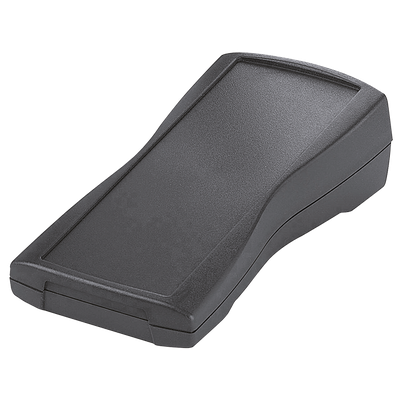

BOS-Streamline with Membrane Keypad Surface
Handheld enclosure featuring a seamless foil finish for an integrated, sleek appearance ideal for membrane keypad applications
Features
Three Basic Sizes Available
IP40 or IP65 with Optional Design Seal
Mountable in Console or Parallel Configuration
Technical Data
Material | |
|---|---|
| Enclosure: | ABS |
| Decor seal: | TPE |
| For further details, see the technical information | |
Colour | |
|---|---|
| 2 colours (graphite grey similar to RAL7024, light grey similar to RAL7035) | |
| Special colours on request | |
Protection Class | |
|---|---|
| IP40, depending on enclosure design up to IP65, DIN EN 60529 | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Colour | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 82200124 | 44.1 x 79.4 x 22.199999999999996 mm | BS 200 F-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 82200135 | 44.1 x 79.4 x 22.199999999999996 mm | BS 200 F-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 82202124 | 44.1 x 79.4 x 22.199999999999996 mm | BS 202 F-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 82202135 | 44.1 x 79.4 x 22.199999999999996 mm | BS 202 F-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 82400124 | 64.9 x 119.3 x 26.5 mm | BS 400 F-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 82400135 | 64.9 x 119.3 x 26.5 mm | BS 400 F-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 82402124 | 64.9 x 119.3 x 26.5 mm | BS 402 F-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 82402135 | 64.9 x 119.3 x 26.5 mm | BS 402 F-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 82500124 | 72.9 x 140.3 x 31.299999999999997 mm | BS 500 F-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 82500135 | 72.9 x 140.3 x 31.299999999999997 mm | BS 500 F-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 82502124 | 72.9 x 140.3 x 31.299999999999997 mm | BS 502 F-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 82502135 | 72.9 x 140.3 x 31.299999999999997 mm | BS 502 F-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 82600124 | 77.9 x 159.4 x 33.5 mm | BS 600 F-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 82600135 | 77.9 x 159.4 x 33.5 mm | BS 600 F-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 82602124 | 77.9 x 159.4 x 33.5 mm | BS 602 F-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 82602135 | 77.9 x 159.4 x 33.5 mm | BS 602 F-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 82700124 | 93 x 184.3 x 35.4 mm | BS 700 F-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 82700135 | 93 x 184.3 x 35.4 mm | BS 700 F-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 82702124 | 93 x 184.3 x 35.4 mm | BS 702 F-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 82702135 | 93 x 184.3 x 35.4 mm | BS 702 F-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 82800124 | 98 x 209.3 x 34.8 mm | BS 800 F-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 82800135 | 98 x 209.3 x 34.8 mm | BS 800 F-7035 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 82802124 | 98 x 209.3 x 34.8 mm | BS 802 F-7024 | Graphite grey, similar to RAL 7024 | Send Request | ||||
 | 82802135 | 98 x 209.3 x 34.8 mm | BS 802 F-7035 | Light grey, similar to RAL 7035 | Send Request |
Art.
82802135
W x L x H
98 x 209.3 x 34.8 mm
Product Type
BS 802 F-7035
Colour
Light grey, similar to RAL 7035
Art.
82802124
W x L x H
98 x 209.3 x 34.8 mm
Product Type
BS 802 F-7024
Colour
Graphite grey, similar to RAL 7024
Art.
82800135
W x L x H
98 x 209.3 x 34.8 mm
Product Type
BS 800 F-7035
Colour
Light grey, similar to RAL 7035
Art.
82800124
W x L x H
98 x 209.3 x 34.8 mm
Product Type
BS 800 F-7024
Colour
Graphite grey, similar to RAL 7024
Services
Unlock the Benefits of Our Services for BOS-Streamline with Membrane Keypad Surface
Discover how our expert services can elevate the performance and reliability of your BOS-Streamline with membrane keypad surface. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece.
2
Painting in Special Colour
If the colour does not match your concept or company design, we can also paint the enclosures in your desired hue. Simply inform us of the required RAL colour, texture, and gloss level. We also offer manufacturing of enclosures in special granules from approximately 250 pieces.
3
EMC Coating
To protect your electronics from electromagnetic interference, our plastic enclosures can be fitted with an EMC coating. We offer this coating using either a copper conductive lacquer or an aluminium vapour deposition process.
4
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil.
5
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired.
6
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution.
7
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution.
8
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number.
