Limanda Handheld Enclosure
Ideal for MSR, automation technology and data acquisition applications
Features
For Mobile and Stationary Installations
Variable Mounting Depths
Available in Two Sizes
Large Occupancy Area
Technical Data
Material | |
|---|---|
| Enclosure: | Polyamide |
| Butt edge: | NBR, black |
Colour | |
|---|---|
| Similar to RAL 7021, black-grey | |
Protection Class | |
|---|---|
| IP65 according to EN60529 | |
Impact Resistance | |
|---|---|
| > 7 joules according to EN50014 | |
Temperature Resistance: | |
|---|---|
| -20° C to +60° C | |
Scope of Delivery | |
|---|---|
| Double-shell enclosure with upper and lower shell, each with mounting domes incl. seals and butt edge profile. 3 cover flaps for interface garages, screws and fastening material for front panel mounting. | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | RAL | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 270302000 | 248 x 270 x 64 mm | Limanda II | black-grey (RAL 7021) | Send Request | ||||
 | 270302010 | 248 x 270 x 64 mm | Limanda II EMV | black-grey (RAL 7021) | Send Request | ||||
 | 270303000 | 311 x 281 x 72 mm | Limanda I | black-grey (RAL 7021) | Send Request | ||||
 | 270303010 | 311 x 281 x 72 mm | Limanda I EMV | black-grey (RAL 7021) | Send Request | ||||

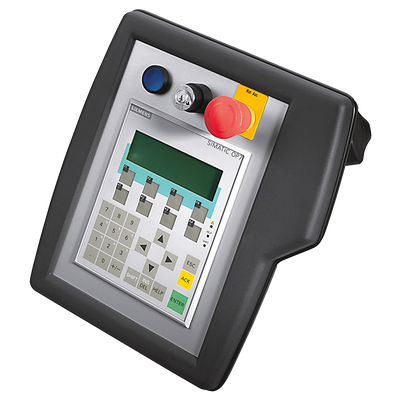

 | 270303170 | 311 x 281 x 97 mm | Limanda I for OP17 | black-grey (RAL 7021) | Send Request |
Art.
270303170
W x L x H
311 x 281 x 97 mm
Product Type
Limanda I for OP17
RAL
black-grey (RAL 7021)
Art.
270303010
W x L x H
311 x 281 x 72 mm
Product Type
Limanda I EMV
RAL
black-grey (RAL 7021)
Art.
270303000
W x L x H
311 x 281 x 72 mm
Product Type
Limanda I
RAL
black-grey (RAL 7021)
Art.
270302010
W x L x H
248 x 270 x 64 mm
Product Type
Limanda II EMV
RAL
black-grey (RAL 7021)
Services
Unlock the Benefits of Our Services for Limanda Handheld Enclosure
Discover how our expert services can elevate the performance and reliability of your Limanda handheld enclosures. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece.
2
Painting in Special Colour
If the colour does not match your concept or company design, we can also paint the enclosures in your desired hue. Simply inform us of the required RAL colour, texture, and gloss level. We also offer manufacturing of enclosures in special granules from approximately 250 pieces.
3
EMC Coating
To protect your electronics from electromagnetic interference, our plastic enclosures can be fitted with an EMC coating. We offer this coating using either a copper conductive lacquer or an aluminium vapour deposition process.
4
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil.
5
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired.
6
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution.
7
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution.
8
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number.
