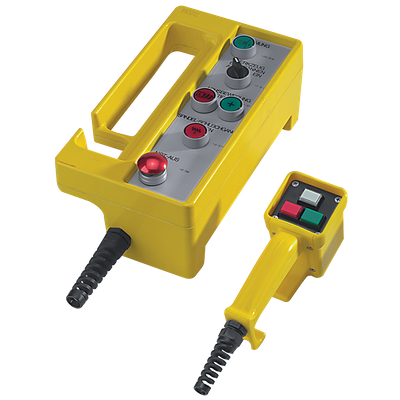

Pilot 10 / 20 / 30 Handheld Enclosure
Handheld enclosures for I&C and automation technology
Features
Robust Design
Polyamide or Polyester
Handle and Integrated Cable Passage
Technical Data
Material | |
|---|---|
| Pilot 10 and Pilot 20: | Polyamide |
| Pilot 30: | Polyester |
Colour | |
|---|---|
| Pilot 10 and Pilot 20: | signal yellow, RAL 1003 |
| Pilot 30: | rape yellow, RAL 1021 |
Protection Class | |
|---|---|
| IP 65 according to EN 60529 | |
Impact Resistance | |
|---|---|
| > 7 joules according to EN 60079-0 | |
Temperature Resistance | |
|---|---|
| -40° C to +60° C | |
Scope of Delivery | |
|---|---|
| Pilot 10 and 20: | enclosure with handle, including cable entry M20x1.5; front panel with mounting screws and wall bracket |
| Pilot 30: | two-piece polyester housing with self-adhesive aluminum front plate, enclosure screws and wall bracket |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Model | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 293001000 | 200 x 115 x 93 mm | Pilot 20 | Send Request | |||||
 | 294002000 | 190 x 70 x 93 mm | Pilot 10 | Send Request | |||||
 | 295001000 | 164 x 116 x 295 mm | Pilot 30 | Send Request |
Art.
295001000
W x L x H
164 x 116 x 295 mm
Product Type
Pilot 30
Art.
294002000
W x L x H
190 x 70 x 93 mm
Product Type
Pilot 10
Art.
293001000
W x L x H
200 x 115 x 93 mm
Product Type
Pilot 20
Services
Unlock the Benefits of Our Services for Handheld Enclosures
Discover how our expert services can elevate the performance and reliability of your handheld enclosures. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece.
2
Painting in Special Colour
If the colour does not match your concept or company design, we can also paint the enclosures in your desired hue. Simply inform us of the required RAL colour, texture, and gloss level. We also offer manufacturing of enclosures in special granules from approximately 250 pieces.
3
EMC Coating
To protect your electronics from electromagnetic interference, our plastic enclosures can be fitted with an EMC coating. We offer this coating using either a copper conductive lacquer or an aluminium vapour deposition process.
4
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil.
5
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired.
6
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution.
7
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution.
8
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number.
