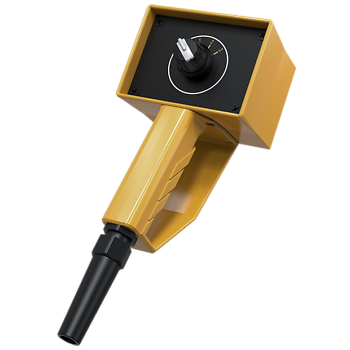

Pilot 110 / 150 Handheld Enclosure
Polyamide handheld operating enclosure for automation and control technology
Features
Robust Enclosure with High Protection Class
Grip Area for Mobile Use
Preconfigured for Cable Gland Integration
Ideal for Mounting Switches, Pushbuttons, and Controls
Technical Data
Material | |
|---|---|
| Enclosure: | Polyamid |
Colour | |
|---|---|
| Similar to RAL 1003, signal yellow | |
Protection Class | |
|---|---|
| IP 65 according to EN 60529 | |
Impact Resistance | |
|---|---|
| > 7 joules according to EN 60079-0 | |
Temperature Resistance | |
|---|---|
| From -40 °C to +60 °C | |
Scope of Delivery: | |
|---|---|
| Enclosure with handle, including cable entry M20x1.5; front panel, wall bracket, enclosure and front panel screws | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|
 | 292110000 | 85 x 85 x 191 mm | Pilot 110 | Send Request | ||||
 | 292120000 | 115 x 85 x 191 mm | Pilot 120 | Send Request | ||||
 | 292130000 | 85 x 85 x 221 mm | Pilot 130 | Send Request | ||||
 | 292140000 | 160 x 85 x 211 mm | Pilot 140 | Send Request | ||||
 | 292150000 | 105 x 85 x 266 mm | Pilot 150 | Send Request |
Art.
292150000
W x L x H
105 x 85 x 266 mm
Product Type
Pilot 150
Art.
292140000
W x L x H
160 x 85 x 211 mm
Product Type
Pilot 140
Art.
292130000
W x L x H
85 x 85 x 221 mm
Product Type
Pilot 130
Art.
292120000
W x L x H
115 x 85 x 191 mm
Product Type
Pilot 120
Services
Unlock the Benefits of Our Services for Handheld Enclosures
Discover how our expert services can elevate the performance and reliability of your handheld enclosures. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece.
2
Painting in Special Colour
If the colour does not match your concept or company design, we can also paint the enclosures in your desired hue. Simply inform us of the required RAL colour, texture, and gloss level. We also offer manufacturing of enclosures in special granules from approximately 250 pieces.
3
EMC Coating
To protect your electronics from electromagnetic interference, our plastic enclosures can be fitted with an EMC coating. We offer this coating using either a copper conductive lacquer or an aluminium vapour deposition process.
4
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil.
5
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired.
6
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution.
7
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution.
8
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number.
