Idea / Concept
Send a sketch, CAD data or we visit you on site and record the requirements
Keypad Layout on FR4 Printed Circuit Board
The membrane keypad with a strong haptics
Features
Very good tactile feedback
Tactile key element
For large keys and key rockers
FR4 Circuit Board
Keypad Layout on FR4 Printed Circuit Board
When keypads are combined directly with printed circuit board, an additional carrier pad can often be dispensed with.
The thickness of the PCB material (FR4 etc.) is then selected so that the stability is comparable to that of a metal carrier plate. Threaded bolts can also be accommodated, as can apertures.

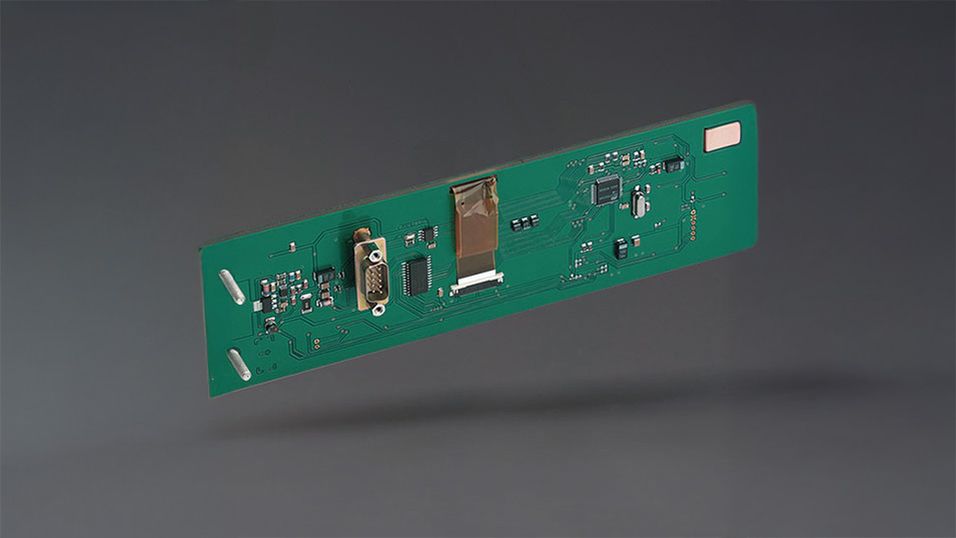

Due to this design, additional electronic components can be mounted directly on the back of the keypad, which often results in a significant cost reduction.
Project Process
How to Make your Keypad Layout on FR4 Printed Circuit Board a Complete Success
After the feasibility check and the quotation phase, our specialists create a detailed release drawing (good for printing) with all relevant data of your keypad layout on FR4 printed circuit board. This drawing shows materials, color definitions (in RAL or Pantone) as well as the conductor paths and the electrical circuit diagram. During this phase, any changes you wish to make can be incorporated into the design without incurring any costs. After approval we start the production of the pilot series. Ideally we like to combine our membrane keypads directly with one of our enclosures to a complete operating unit. If this cut is made directly by us, you can be sure that the membrane keypad has been assembled correctly and you will not have any rejects due to possible assembly errors. In addition, your stock-keeping is reduced.
