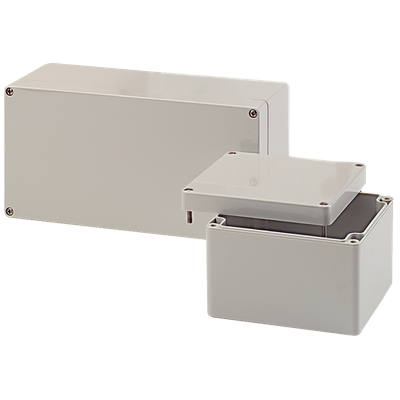

ABS Plastic Junction Box
Universal enclosure made of ABS plastic
Features
Optionally in EMC version with coating
Use as junction box and terminal box
We equip individually with terminals, cable glands, switches, etc.
Optionally with quick release cover screws
Technical Data
Material & Colour | |
|---|---|
| ABS | |
| Light grey similar to RAL 7035 | |
| Black similar to RAL 9005 | |
| Special colours on request | |
Protection Class | |
|---|---|
| IP 66 according to EN 60529 | |
| IP68 (1.2 m- 2 h) on request from some sizes possible | |
Special versions on request | |
|---|---|
| Silicone seal | |
| EMC version | |
Temperature resistance | |
|---|---|
| - 25° C to +70° C | |
Burning behavior | |
|---|---|
| HB / UL 94 | |
Scope of delivery | |
|---|---|
| Plastic enclosure consisting of a lid, a gasket, including V2A stainless steel lid screws, and two self-tapping screws per part for mounting the base plate. | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Colour | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 03205000 | 50 x 52 x 35 mm | T 205 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03206000 | 50 x 65 x 35 mm | T 206 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03208000 | 64 x 98 x 36.4 mm | T 208 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03210000 | 80 x 82 x 55 mm | T 210 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03215000 | 80 x 120 x 55 mm | T 215 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03216000 | 80 x 120 x 60 mm | T 216 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03217000 | 120 x 122 x 55 mm | T 217 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03219000 | 80 x 160 x 60 mm | T 219 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03220000 | 80 x 160 x 55 mm | T 220 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03221000 | 120 x 200 x 75 mm | T 221 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03223000 | 150 x 200 x 75 mm | T 223 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03225000 | 80 x 82 x 85 mm | T 225 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03226000 | 80 x 120 x 85 mm | T 226 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03227000 | 120 x 122 x 85 mm | T 227 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03228000 | 120 x 122 x 105 mm | T 228 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03230000 | 80 x 120 x 90 mm | T 230 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03231000 | 80 x 160 x 85 mm | T 231 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03235000 | 80 x 160 x 90 mm | T 235 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03237000 | 120 x 200 x 90 mm | T 237 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03238000 | 120 x 160 x 90 mm | T 238 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03238200 | 120 x 160 x 75 mm | T 2381 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03240000 | 160 x 250 x 90 mm | T 240 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03240200 | 160.3 x 240.3 x 90 mm | T 2401 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03241000 | 160 x 250 x 119 mm | T 241 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03242000 | 120 x 240.5 x 100.5 mm | T 242 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03243000 | 160.3 x 240.3 x 120 mm | T 243 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03244000 | 150 x 340 x 100 mm | T 244 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03245000 | 150 x 340 x 120 mm | T 245 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03246000 | 120 x 160 x 140 mm | T 246 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03250000 | 160 x 250 x 150 mm | T 250 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03251000 | 160 x 360 x 100 mm | T 251 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03253000 | 230 x 300 x 85 mm | T 253 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03254000 | 230 x 300 x 110 mm | T 254 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03255000 | 200 x 360 x 149.5 mm | T 255 | Light grey, similar to RAL 7035 | Send Request | ||||
 | 03260000 | 400 x 360 x 150 mm | T 260 | Light grey, similar to RAL 7035 | Send Request |
Art.
03260000
W x L x H
400 x 360 x 150 mm
Product Type
T 260
Colour
Light grey, similar to RAL 7035
Art.
03254000
W x L x H
230 x 300 x 110 mm
Product Type
T 254
Colour
Light grey, similar to RAL 7035
Art.
03253000
W x L x H
230 x 300 x 85 mm
Product Type
T 253
Colour
Light grey, similar to RAL 7035
Art.
03255000
W x L x H
200 x 360 x 149.5 mm
Product Type
T 255
Colour
Light grey, similar to RAL 7035
Services
Unlock the Benefits of Our Services for ABS Plastic Junction Box
Discover how our expert services can elevate the performance and reliability of your ABS plastic junction box. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece
2
Powder Coating in Custom Colours
If our standard finish does not align with your vision or company branding, we can powder coat the enclosures in your chosen colour. Simply provide us with the desired RAL colour, texture, and gloss level
3
Passivation
Our enclosures are passivated using SurTec650, which protects the aluminium from corrosion and serves as an adhesion primer for painting. Alternatively, we can apply other surface treatments such as Alodine. Please contact us for further details
4
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil
5
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired
6
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution
7
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution
8
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number
)
