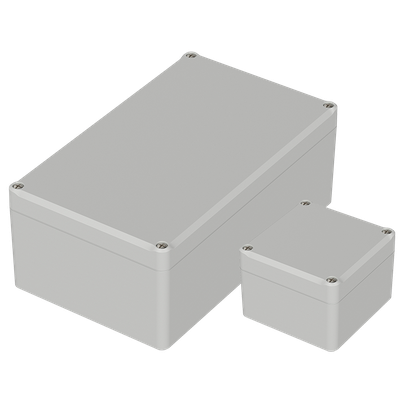

Euromas II ABS Plastic Enclosure

ABS enclosure in elegant design

Features

2 lid variants: smooth or recessed with membrane keypad surface (F version)
Insertion grooves for printed circuit boards (LP version)
Offset cams for clamping rectangular printed circuit boards
Particularly recyclable due to use of pure plastics without injected metal parts

Technical Data

Enclosure Material
ABS

Colour
Light grey similar to RAL 7035
Special colors on request

Protection Class
IP 65, DIN EN 60529

Scope of delivery
Upper and lower part, self-forming steep thread cover screws made of V2A

Product Data & Accessories

Art.	W x L x H	Product Type	Colour
63205000	50 x 52 x 37 mm	ET 205	Light grey, similar to RAL 7035	Send Request
63205200	50 x 52 x 37 mm	ET 205 F	Light grey, similar to RAL 7035	Send Request
63206000	50 x 65 x 37 mm	ET 206	Light grey, similar to RAL 7035	Send Request
63206200	50 x 65 x 37 mm	ET 206 F	Light grey, similar to RAL 7035	Send Request
63207300	60 x 82 x 57 mm	ET 207 LP	Light grey, similar to RAL 7035	Send Request
63207400	60 x 82 x 57 mm	ET 207 F-LP	Light grey, similar to RAL 7035	Send Request
63208000	64 x 98 x 38 mm	ET 208	Light grey, similar to RAL 7035	Send Request
63208200	64 x 98 x 38 mm	ET 208 F	Light grey, similar to RAL 7035	Send Request
63210000	80 x 82 x 57 mm	ET 210	Light grey, similar to RAL 7035	Send Request
63210200	80 x 82 x 57 mm	ET 210 F	Light grey, similar to RAL 7035	Send Request
63212000	100 x 100 x 57 mm	ET 212	Light grey, similar to RAL 7035	Send Request
63212200	100 x 100 x 57 mm	ET 212 F	Light grey, similar to RAL 7035	Send Request
63213000	120 x 122 x 37 mm	ET 213	Light grey, similar to RAL 7035	Send Request
63213200	120 x 122 x 37 mm	ET 213 F	Light grey, similar to RAL 7035	Send Request
63214300	120 x 200 x 57 mm	ET 214 LP	Light grey, similar to RAL 7035	Send Request
63214400	120 x 200 x 57 mm	ET 214 F-LP	Light grey, similar to RAL 7035	Send Request
63215200	80 x 120 x 57 mm	ET 215 F	Light grey, similar to RAL 7035	Send Request
63217000	120 x 122 x 57 mm	ET 217	Light grey, similar to RAL 7035	Send Request
63217200	120 x 122 x 57 mm	ET 217 F	Light grey, similar to RAL 7035	Send Request
63218300	150 x 150 x 57 mm	ET 218 LP	Light grey, similar to RAL 7035	Send Request
63218400	150 x 150 x 57 mm	ET 218 F-LP	Light grey, similar to RAL 7035	Send Request
63220000	80 x 160 x 57 mm	ET 220	Light grey, similar to RAL 7035	Send Request
63220200	80 x 160 x 57 mm	ET 220 F	Light grey, similar to RAL 7035	Send Request
63221000	120 x 200 x 77 mm	ET 221	Light grey, similar to RAL 7035	Send Request
63221200	120 x 200 x 77 mm	ET 221 F	Light grey, similar to RAL 7035	Send Request
63223000	150 x 200 x 77 mm	ET 223	Light grey, similar to RAL 7035	Send Request
63223200	150 x 200 x 77 mm	ET 223 F	Light grey, similar to RAL 7035	Send Request
63224300	80 x 240 x 60 mm	ET 224 LP	Light grey, similar to RAL 7035	Send Request
63224400	80 x 240 x 60 mm	ET 224 F-LP	Light grey, similar to RAL 7035	Send Request
63225000	80 x 82 x 87 mm	ET 225	Light grey, similar to RAL 7035	Send Request
63225200	80 x 82 x 87 mm	ET 225 F	Light grey, similar to RAL 7035	Send Request
63227000	120 x 122 x 87 mm	ET 227	Light grey, similar to RAL 7035	Send Request
63227200	120 x 122 x 87 mm	ET 227 F	Light grey, similar to RAL 7035	Send Request
63229000	80 x 160 x 37 mm	ET 229	Light grey, similar to RAL 7035	Send Request
63229200	80 x 160 x 37 mm	ET 229 F	Light grey, similar to RAL 7035	Send Request
63231000	80 x 160 x 87 mm	ET 231	Light grey, similar to RAL 7035	Send Request
63231200	80 x 160 x 87 mm	ET 231 F	Light grey, similar to RAL 7035	Send Request
63232000	150 x 200 x 37 mm	ET 232	Light grey, similar to RAL 7035	Send Request
63232200	150 x 200 x 37 mm	ET 232 F	Light grey, similar to RAL 7035	Send Request
63233000	160 x 250 x 37 mm	ET 233	Light grey, similar to RAL 7035	Send Request
63233200	160 x 250 x 37 mm	ET 233 F	Light grey, similar to RAL 7035	Send Request
63236300	80 x 240 x 80 mm	ET 236 LP	Light grey, similar to RAL 7035	Send Request
63236400	80 x 240 x 80 mm	ET 236 F-LP	Light grey, similar to RAL 7035	Send Request
63237000	120 x 200 x 92 mm	ET 237	Light grey, similar to RAL 7035	Send Request
63237200	120 x 200 x 92 mm	ET 237 F	Light grey, similar to RAL 7035	Send Request
63238000	120 x 160 x 92 mm	ET 238	Light grey, similar to RAL 7035	Send Request
63238200	120 x 160 x 92 mm	ET 238 F	Light grey, similar to RAL 7035	Send Request
63239000	160 x 250 x 57 mm	ET 239	Light grey, similar to RAL 7035	Send Request
63239200	160 x 250 x 57 mm	ET 239 F	Light grey, similar to RAL 7035	Send Request
63240000	160 x 250 x 92 mm	ET 240	Light grey, similar to RAL 7035	Send Request
63240200	160 x 250 x 92 mm	ET 240 F	Light grey, similar to RAL 7035	Send Request
63241000	160 x 250 x 122 mm	ET 241	Light grey, similar to RAL 7035	Send Request
63241200	160 x 250 x 122 mm	ET 241 F	Light grey, similar to RAL 7035	Send Request
63242000	120 x 240 x 102 mm	ET 242	Light grey, similar to RAL 7035	Send Request
63242200	120 x 240 x 102 mm	ET 242 F	Light grey, similar to RAL 7035	Send Request
63247300	160 x 300 x 120 mm	ET 247 LP	Light grey, similar to RAL 7035	Send Request
63247400	160 x 300 x 120 mm	ET 247 F-LP	Light grey, similar to RAL 7035	Send Request

Art.

63247400

W x L x H

160 x 300 x 120 mm

Product Type

ET 247 F-LP

Colour

Light grey, similar to RAL 7035

Send Request

Art.

63247300

W x L x H

160 x 300 x 120 mm

Product Type

ET 247 LP

Colour

Light grey, similar to RAL 7035

Send Request

Art.

63241200

W x L x H

160 x 250 x 122 mm

Product Type

ET 241 F

Colour

Light grey, similar to RAL 7035

Send Request

Art.

63241000

W x L x H

160 x 250 x 122 mm

Product Type

ET 241

Colour

Light grey, similar to RAL 7035

Send Request

Services

Unlock the Benefits of Our Services for Euromas II ABS Plastic Enclosures

Discover how our expert services can elevate the performance and reliability of your Euromas II ABS plastic enclosure. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.

Mechanical Machining

We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece

Powder Coating in Custom Colours

If our standard finish does not align with your vision or company branding, we can powder coat the enclosures in your chosen colour. Simply provide us with the desired RAL colour, texture, and gloss level

Passivation

Our enclosures are passivated using SurTec650, which protects the aluminium from corrosion and serves as an adhesion primer for painting. Alternatively, we can apply other surface treatments such as Alodine. Please contact us for further details

Printing

If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil

Engraving and Laser Marking

Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired

Procurement of Components

As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution

Assembly

Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution

Packaging and Logistics

Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number
