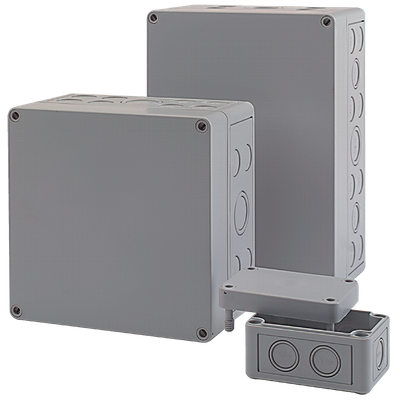

PCI Thermoplastic Enclosure
Thermoplastic enclosures with knockouts for cable glands
Features
Bottom part with knock-outs for cable glands
Easy machining possibility
Extensive range of accessories
Technical Data
Material | |
|---|---|
| Thermoplastic PS | |
Colour | |
|---|---|
| Light grey similar to RAL 7035 (special color on request) | |
Protection Class | |
|---|---|
| IP 66 according to EN 60529 | |
Burning Behavior | |
|---|---|
| HB / UL 94 | |
Impact Resistance | |
|---|---|
| IK07 according to EN 60068-2-75 | |
Temperature Resistance | |
|---|---|
| -25° C to +40° C | |
Scope of Delivery | |
|---|---|
| Enclosure consisting of cover, seal, incl. captive +/- cover screws, screw set for fastening incl. sealing caps | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Colour | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 600707150 | 65 x 65 x 57 mm | PCI 01-6M | Light grey (RAL 7035) | Send Request | ||||
 | 600709150 | 65 x 94 x 57 mm | PCI 02-6M | Light grey (RAL 7035) | Send Request | ||||
 | 600909150 | 94 x 94 x 57 mm | PCI 03-6M | Light grey (RAL 7035) | Send Request | ||||
 | 600913150 | 94 x 130 x 57 mm | PCI 06-6M | Light grey (RAL 7035) | Send Request | ||||
 | 600918150 | 94 x 180 x 57 mm | PCI 07-6M | Light grey (RAL 7035) | Send Request | ||||
 | 601111150 | 110 x 110 x 90 mm | PCI 05-9M | Light grey (RAL 7035) | Send Request | ||||
 | 601118150 | 110 x 180 x 90 mm | PCI 08-9M | Light grey (RAL 7035) | Send Request | ||||
 | 601118250 | 110 x 180 x 110 mm | PCI 08-11M | Light grey (RAL 7035) | Send Request | ||||
 | 601313150 | 130 x 130 x 75 mm | PCI 06-7M | Light grey (RAL 7035) | Send Request | ||||
 | 601818150 | 180 x 182 x 90 mm | PCI 09-9M | Light grey (RAL 7035) | Send Request | ||||
 | 601818250 | 180 x 182 x 111 mm | PCI 09-11M | Light grey (RAL 7035) | Send Request | ||||
 | 601825050 | 180 x 254 x 63 mm | PCI 10-6M | Light grey (RAL 7035) | Send Request | ||||
 | 601825150 | 180 x 254 x 90 mm | PCI 10-9M | Light grey (RAL 7035) | Send Request | ||||
 | 601825250 | 180 x 254 x 111 mm | PCI 10-11M | Light grey (RAL 7035) | Send Request | ||||
 | 602536150 | 254 x 361 x 111 mm | PCI 11-11M | Light grey (RAL 7035) | Send Request |
Art.
602536150
W x L x H
254 x 361 x 111 mm
Product Type
PCI 11-11M
Colour
Light grey (RAL 7035)
Art.
601825250
W x L x H
180 x 254 x 111 mm
Product Type
PCI 10-11M
Colour
Light grey (RAL 7035)
Art.
601825150
W x L x H
180 x 254 x 90 mm
Product Type
PCI 10-9M
Colour
Light grey (RAL 7035)
Art.
601825050
W x L x H
180 x 254 x 63 mm
Product Type
PCI 10-6M
Colour
Light grey (RAL 7035)
Services
Unlock the Benefits of Our Services for PCI Thermoplastic Enclosures
Discover how our expert services can elevate the performance and reliability of your PCI thermoplastic enclosure. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece
2
Powder Coating in Custom Colours
If our standard finish does not align with your vision or company branding, we can powder coat the enclosures in your chosen colour. Simply provide us with the desired RAL colour, texture, and gloss level
3
Passivation
Our enclosures are passivated using SurTec650, which protects the aluminium from corrosion and serves as an adhesion primer for painting. Alternatively, we can apply other surface treatments such as Alodine. Please contact us for further details
4
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil
5
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired
6
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution
7
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution
8
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number
