Plastic enclosure Bocube with clear lid in material polycarbonat

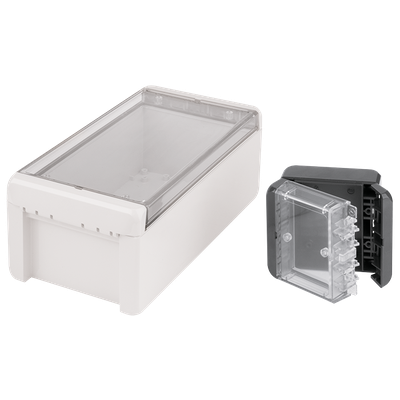

Bocube Polycarbonate Enclosure with Clear Lid

Elegant polycarbonate enclosure IP66 / IP68 (1.2 m - 2 h) with clear cover

Features

PC UL 94 V0, flame retardant and self-extinguishing
Innovative hinge closure technology: open by screwdriver, close by hand
Elegant design with color variations of the hinge locks
Transparent lid

Technical Data

Material
Enclosure	Polycarbonate PC Lexan945U
Cover	PC Lexan945AU

Colour
Graphite grey similar to RAL 7024
Light grey similar to RAL 7035

Protection Class
IP66 / IP68 (1,2 m - 2 h) DIN EN 60529

Burning Behavior
PC UL 94 V0, flame retardant and self-extinguishing

Product Data & Accessories

Art.	W x L x H	Product Type	Colour
96021114	89 x 47 x 80 mm	B 080805 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96021115	89 x 47 x 80 mm	B 080805 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96022124	80 x 113 x 60 mm	B 100806 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96022125	80 x 113 x 60 mm	B 100806 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96022134	80 x 113 x 90 mm	B 100809 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96022135	80 x 113 x 90 mm	B 100809 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96022144	80 x 113 x 40 mm	B 100804 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96022145	80 x 113 x 40 mm	B 100804 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96023124	80 x 151 x 60 mm	B 140806 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96023125	80 x 151 x 60 mm	B 140806 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96023134	80 x 151 x 90 mm	B 140809 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96023135	80 x 151 x 90 mm	B 140809 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96023144	151 x 40 x 80 mm	B 140804 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96023145	151 x 40 x 80 mm	B 140804 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96023224	125 x 151 x 60 mm	B 141306 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96023225	125 x 151 x 60 mm	B 141306 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96023234	125 x 151 x 90 mm	B 141309 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96023235	125 x 151 x 90 mm	B 141309 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96024124	191 x 60 x 80 mm	B 180806 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96024125	191 x 60 x 80 mm	B 180806 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96024134	191 x 90 x 80 mm	B 180809 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96024135	191 x 90 x 80 mm	B 180809 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96024224	191 x 60 x 125 mm	B 181306 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96024225	191 x 60 x 125 mm	B 181306 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96024234	191 x 90 x 125 mm	B 181309 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96024235	191 x 90 x 125 mm	B 181309 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96024244	191 x 40 x 125 mm	B 181304 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96024245	191 x 40 x 125 mm	B 181304 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96025224	125 x 231 x 60 mm	B 221306 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96025225	125 x 231 x 60 mm	B 221306 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96025234	125 x 231 x 90 mm	B 221309 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96025235	125 x 231 x 90 mm	B 221309 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96025244	231 x 40 x 125 mm	B 221304 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96025245	231 x 40 x 125 mm	B 221304 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96026224	125 x 271 x 60 mm	B 261306 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96026225	125 x 271 x 60 mm	B 261306 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96026324	170 x 271 x 60 mm	B 261706 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96026325	170 x 271 x 60 mm	B 261706 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96026334	170 x 271 x 90 mm	B 261709 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96026335	170 x 271 x 90 mm	B 261709 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96026344	271 x 40 x 170 mm	B 261704 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96026345	271 x 40 x 170 mm	B 261704 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96026364	170 x 271 x 120 mm	B 261712 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96026365	170 x 271 x 120 mm	B 261712 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96027664	284 x 120 x 364 mm	B 273612 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96027665	284 x 120 x 364 mm	B 273612 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96027674	284 x 160 x 364 mm	B 273616 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96027675	284 x 160 x 364 mm	B 273616 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96028564	239 x 120 x 300 mm	B 233012 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96028565	239 x 120 x 300 mm	B 233012 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request
96028574	239 x 160 x 300 mm	B 233016 PC-V0-G 7024	Graphite grey, similar to RAL 7024	Send Request
96028575	239 x 160 x 300 mm	B 233016 PC-V0-G 7035	Light grey, similar to RAL 7035	Send Request

Art.

96027675

W x L x H

284 x 160 x 364 mm

Product Type

B 273616 PC-V0-G 7035

Colour

Light grey, similar to RAL 7035

Send Request

Art.

96027674

W x L x H

284 x 160 x 364 mm

Product Type

B 273616 PC-V0-G 7024

Colour

Graphite grey, similar to RAL 7024

Send Request

Art.

96027665

W x L x H

284 x 120 x 364 mm

Product Type

B 273612 PC-V0-G 7035

Colour

Light grey, similar to RAL 7035

Send Request

Art.

96027664

W x L x H

284 x 120 x 364 mm

Product Type

B 273612 PC-V0-G 7024

Colour

Graphite grey, similar to RAL 7024

Send Request

Services

Unlock the Benefits of Our Services for Bocube Plastic Enclosure with Clear Lid

Discover how our expert services can elevate the performance and reliability of your bocube plastic enclosure with clear lid. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.

Mechanical Machining

We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece

Powder Coating in Custom Colours

If our standard finish does not align with your vision or company branding, we can powder coat the enclosures in your chosen colour. Simply provide us with the desired RAL colour, texture, and gloss level

Passivation

Our enclosures are passivated using SurTec650, which protects the aluminium from corrosion and serves as an adhesion primer for painting. Alternatively, we can apply other surface treatments such as Alodine. Please contact us for further details

Printing

If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil

Engraving and Laser Marking

Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired

Procurement of Components

As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution

Assembly

Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution

Packaging and Logistics

Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number
