Euromas ll Polycarbonat plastic enclosures

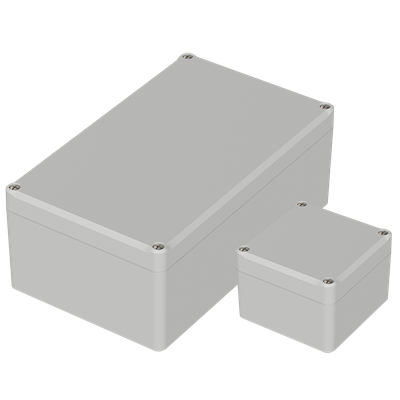

Euromas II Polycarbonate Enclosure

Polycarbonate enclosure in elegant design

Features

2 lid variants: smooth or recessed with membrane keypad surface (F version)
With insertion grooves for printed circuit boards (LP version)
Offset cams for clamping rectangular PCBs
Recyclable due to use of pure plastics without injected metal parts

Technical Data

Material
Polycarbonate

Colour
Light grey similar to RAL 7035
Special colors on request

Protection Class
IP 65, DIN EN 60529

Scope of delivery
Upper and lower part, self-forming steep thread cover screws made of V2A

Product Data & Accessories

Art.	W x L x H	Product Type	Colour
62205000	50 x 52 x 37 mm	EM 205	Light grey, similar to RAL 7035	Send Request
62205200	50 x 52 x 37 mm	EM 205 F	Light grey, similar to RAL 7035	Send Request
62206000	50 x 65 x 37 mm	EM 206	Light grey, similar to RAL 7035	Send Request
62206200	50 x 65 x 37 mm	EM 206 F	Light grey, similar to RAL 7035	Send Request
62207300	60 x 82 x 57 mm	EM 207 LP	Light grey, similar to RAL 7035	Send Request
62207400	60 x 82 x 57 mm	EM 207 F-LP	Light grey, similar to RAL 7035	Send Request
62208000	64 x 98 x 38 mm	EM 208	Light grey, similar to RAL 7035	Send Request
62208200	64 x 98 x 38 mm	EM 208 F	Light grey, similar to RAL 7035	Send Request
62210000	80 x 82 x 57 mm	EM 210	Light grey, similar to RAL 7035	Send Request
62210200	80 x 82 x 57 mm	EM 210 F	Light grey, similar to RAL 7035	Send Request
62212000	100 x 100 x 57 mm	EM 212	Light grey, similar to RAL 7035	Send Request
62212200	100 x 100 x 57 mm	EM 212 F	Light grey, similar to RAL 7035	Send Request
62213000	120 x 122 x 37 mm	EM 213	Light grey, similar to RAL 7035	Send Request
62213200	120 x 122 x 37 mm	EM 213 F	Light grey, similar to RAL 7035	Send Request
62214300	120 x 200 x 57 mm	EM 214 LP	Light grey, similar to RAL 7035	Send Request
62214400	120 x 200 x 57 mm	EM 214 F-LP	Light grey, similar to RAL 7035	Send Request
62215000	80 x 120 x 57 mm	EM 215	Light grey, similar to RAL 7035	Send Request
62215200	80 x 120 x 57 mm	EM 215 F	Light grey, similar to RAL 7035	Send Request
62217000	120 x 122 x 57 mm	EM 217	Light grey, similar to RAL 7035	Send Request
62217200	120 x 122 x 57 mm	EM 217 F	Light grey, similar to RAL 7035	Send Request
62218300	150 x 150 x 57 mm	EM 218 LP	Light grey, similar to RAL 7035	Send Request
62218400	150 x 150 x 57 mm	EM 218 F-LP	Light grey, similar to RAL 7035	Send Request
62220000	80 x 160 x 57 mm	EM 220	Light grey, similar to RAL 7035	Send Request
62220200	80 x 160 x 57 mm	EM 220 F	Light grey, similar to RAL 7035	Send Request
62221000	120 x 200 x 77 mm	EM 221	Light grey, similar to RAL 7035	Send Request
62221200	120 x 200 x 77 mm	EM 221 F	Light grey, similar to RAL 7035	Send Request
62223000	150 x 200 x 77 mm	EM 223	Light grey, similar to RAL 7035	Send Request
62223200	150 x 200 x 77 mm	EM 223 F	Light grey, similar to RAL 7035	Send Request
62224300	80 x 240 x 60 mm	EM 224 LP	Light grey, similar to RAL 7035	Send Request
62224400	80 x 240 x 60 mm	EM 224 F-LP	Light grey, similar to RAL 7035	Send Request
62225000	80 x 82 x 87 mm	EM 225	Light grey, similar to RAL 7035	Send Request
62225200	80 x 82 x 87 mm	EM 225 F	Light grey, similar to RAL 7035	Send Request
62227000	120 x 122 x 87 mm	EM 227	Light grey, similar to RAL 7035	Send Request
62227200	120 x 122 x 87 mm	EM 227 F	Light grey, similar to RAL 7035	Send Request
62229000	80 x 160 x 37 mm	EM 229	Light grey, similar to RAL 7035	Send Request
62229200	80 x 160 x 37 mm	EM 229 F	Light grey, similar to RAL 7035	Send Request
62231000	80 x 160 x 87 mm	EM 231	Light grey, similar to RAL 7035	Send Request
62231200	80 x 160 x 87 mm	EM 231 F	Light grey, similar to RAL 7035	Send Request
62232000	150 x 200 x 37 mm	EM 232	Light grey, similar to RAL 7035	Send Request
62232200	150 x 200 x 37 mm	EM 232 F	Light grey, similar to RAL 7035	Send Request
62233000	160 x 250 x 37 mm	EM 233	Light grey, similar to RAL 7035	Send Request
62233200	160 x 250 x 37 mm	EM 233 F	Light grey, similar to RAL 7035	Send Request
62236300	80 x 240 x 80 mm	EM 236 LP	Light grey, similar to RAL 7035	Send Request
62236400	80 x 240 x 80 mm	EM 236 F-LP	Light grey, similar to RAL 7035	Send Request
62237000	120 x 200 x 92 mm	EM 237	Light grey, similar to RAL 7035	Send Request
62237200	120 x 200 x 92 mm	EM 237 F	Light grey, similar to RAL 7035	Send Request
62238000	120 x 160 x 92 mm	EM 238	Light grey, similar to RAL 7035	Send Request
62238200	120 x 160 x 92 mm	EM 238 F	Light grey, similar to RAL 7035	Send Request
62239000	160 x 250 x 57 mm	EM 239	Light grey, similar to RAL 7035	Send Request
62239200	160 x 250 x 57 mm	EM 239 F	Light grey, similar to RAL 7035	Send Request
62240000	160 x 250 x 92 mm	EM 240	Light grey, similar to RAL 7035	Send Request
62240200	160 x 250 x 92 mm	EM 240 F	Light grey, similar to RAL 7035	Send Request
62241000	160 x 250 x 122 mm	EM 241	Light grey, similar to RAL 7035	Send Request
62241200	160 x 250 x 122 mm	EM 241 F	Light grey, similar to RAL 7035	Send Request
62242000	120 x 240 x 102 mm	EM 242	Light grey, similar to RAL 7035	Send Request
62242200	120 x 240 x 102 mm	EM 242 F	Light grey, similar to RAL 7035	Send Request
62247300	160 x 300 x 120 mm	EM 247 LP	Light grey, similar to RAL 7035	Send Request
62247400	160 x 300 x 120 mm	EM 247 F-LP	Light grey, similar to RAL 7035	Send Request

Art.

62247400

W x L x H

160 x 300 x 120 mm

Product Type

EM 247 F-LP

Colour

Light grey, similar to RAL 7035

Send Request

Art.

62247300

W x L x H

160 x 300 x 120 mm

Product Type

EM 247 LP

Colour

Light grey, similar to RAL 7035

Send Request

Art.

62241200

W x L x H

160 x 250 x 122 mm

Product Type

EM 241 F

Colour

Light grey, similar to RAL 7035

Send Request

Art.

62241000

W x L x H

160 x 250 x 122 mm

Product Type

EM 241

Colour

Light grey, similar to RAL 7035

Send Request

Services

Unlock the Benefits of Our Services for Euromas II Polycarbonate Enclosures

Discover how our expert services can elevate the performance and reliability of your Euromas II polycarbonate enclosure. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.

Mechanical Machining

We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece

Powder Coating in Custom Colours

If our standard finish does not align with your vision or company branding, we can powder coat the enclosures in your chosen colour. Simply provide us with the desired RAL colour, texture, and gloss level

Passivation

Our enclosures are passivated using SurTec650, which protects the aluminium from corrosion and serves as an adhesion primer for painting. Alternatively, we can apply other surface treatments such as Alodine. Please contact us for further details

Printing

If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil

Engraving and Laser Marking

Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired

Procurement of Components

As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution

Assembly

Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution

Packaging and Logistics

Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number

Mechanical Machining

Powder Coating in Custom Colours

Passivation

Printing

Engraving and Laser Marking

Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired
