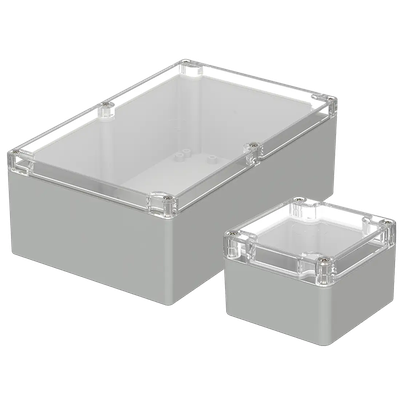

Polycarbonate Enclosure with Clear Lid

Plastic polycarbonate enclosure with transparent lid

Features

Optionally as EMC version with coating
To be equipped with terminals, cable glands or electrotechnical components

Technical Data

Material & Colour
Polycarbonate
Light grey similar to RAL 7035 (special color on request)

Protection Class
IP 66 according to EN 60529

Temperature Resistance
-40° C to +100° C

Burning Behavior
V2 / UL 94

Special Versions on Request
Silicone seal
EMC version

Dielectric Strength
Enclosure:	18 KV / mm
Clear cover:	> 30KV / mm

Scope of Delivery
Plastic enclosure consisting of cover, seal, incl. captive +/- stainless steel screws, lower part with 2 self-forming fixing screws for internal mounting.

Product Data & Accessories

Art.	W x L x H	Product Type	Colour
02205400	50 x 52 x 35 mm	M 205 G	Light grey, similar to RAL 7035	Send Request
02206200	50 x 65 x 35 mm	M 206 G	Light grey, similar to RAL 7035	Send Request
02210100	80 x 82 x 55 mm	M 210 G	Light grey, similar to RAL 7035	Send Request
02215100	80 x 120 x 55 mm	M 215 G	Light grey, similar to RAL 7035	Send Request
02216100	80 x 120 x 60 mm	M 216 G	Light grey, similar to RAL 7035	Send Request
02217200	120 x 122 x 55 mm	M 217 G	Light grey, similar to RAL 7035	Send Request
02220100	80 x 160 x 55 mm	M 220 G	Light grey, similar to RAL 7035	Send Request
02221100	120 x 200 x 75 mm	M 221 G	Light grey, similar to RAL 7035	Send Request
02223100	150 x 200 x 75 mm	M 223 G	Light grey, similar to RAL 7035	Send Request
02225100	80 x 82 x 85 mm	M 225 G	Light grey, similar to RAL 7035	Send Request
02226100	80 x 120 x 85 mm	M 226 G	Light grey, similar to RAL 7035	Send Request
02227100	120 x 122 x 85 mm	M 227 G	Light grey, similar to RAL 7035	Send Request
02228100	120 x 122 x 105 mm	M 228 G	Light grey, similar to RAL 7035	Send Request
02231100	80 x 160 x 85 mm	M 231 G	Light grey, similar to RAL 7035	Send Request
02237100	120 x 200 x 90 mm	M 237 G	Light grey, similar to RAL 7035	Send Request
02238100	120 x 160 x 90 mm	M 238 G	Light grey, similar to RAL 7035	Send Request
02238300	120 x 160 x 75 mm	M 2381 G	Light grey, similar to RAL 7035	Send Request
02240100	160 x 250 x 90 mm	M 240 G	Light grey, similar to RAL 7035	Send Request
02240300	160.3 x 240.3 x 90 mm	M 2401 G	Light grey, similar to RAL 7035	Send Request
02242100	120 x 240.5 x 100.5 mm	M 242 G	Light grey, similar to RAL 7035	Send Request
02243100	160.3 x 240.3 x 120 mm	M 243 G	Light grey, similar to RAL 7035	Send Request
02244100	150 x 340 x 100 mm	M 244 G	Light grey, similar to RAL 7035	Send Request
02246100	120 x 160 x 140 mm	M 246 G	Light grey, similar to RAL 7035	Send Request
02253100	230 x 300 x 85 mm	M 253 G	Light grey, similar to RAL 7035	Send Request
02254100	230 x 300 x 110 mm	M 254 G	Light grey, similar to RAL 7035	Send Request
02255100	200 x 360 x 149.5 mm	M 255 G	Light grey, similar to RAL 7035	Send Request

Art.

02254100

W x L x H

230 x 300 x 110 mm

Product Type

M 254 G

Colour

Light grey, similar to RAL 7035

Send Request

Art.

02253100

W x L x H

230 x 300 x 85 mm

Product Type

M 253 G

Colour

Light grey, similar to RAL 7035

Send Request

Art.

02255100

W x L x H

200 x 360 x 149.5 mm

Product Type

M 255 G

Colour

Light grey, similar to RAL 7035

Send Request

Art.

02243100

W x L x H

160.3 x 240.3 x 120 mm

Product Type

M 243 G

Colour

Light grey, similar to RAL 7035

Send Request

Services

Unlock the Benefits of Our Services for Polycarbonate Enclosures with Clear Lid

Discover how our expert services can elevate the performance and reliability of your polycarbonate enclosure with clear lid. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.

Mechanical Machining

We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece

Powder Coating in Custom Colours

If our standard finish does not align with your vision or company branding, we can powder coat the enclosures in your chosen colour. Simply provide us with the desired RAL colour, texture, and gloss level

Passivation

Our enclosures are passivated using SurTec650, which protects the aluminium from corrosion and serves as an adhesion primer for painting. Alternatively, we can apply other surface treatments such as Alodine. Please contact us for further details

Printing

If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil

Engraving and Laser Marking

Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired

Procurement of Components

As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution

Assembly

Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution

Packaging and Logistics

Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number
