Railway Polyester Enclosure
Enclosures for railway technology - Reliable products from a competent and innovative partner
Features
Meet railway industry requirements
Comply with the European fire protection standard DIN EN 45545

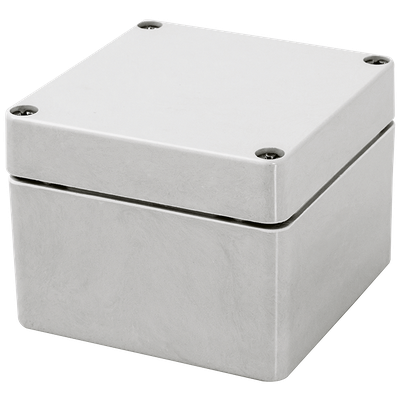

Engineered Polyester Enclosures for the Railway Industry
Polyester enclosures for the railway industry are engineered to meet industry requirements and comply with the European fire protection standard DIN EN 45545.
They are manufactured from a specialised thermosetting polyester material that does not melt or drip in the event of a fire and exhibits moderate smoke emission.
Accredited laboratory tests have demonstrated that the material performs excellently in terms of smoke density, lateral flame spread, and heat release during fire incidents. This ensures that the enclosures are suitable for use in nearly all rail projects.
Technical Data
Material & Colour | |
|---|---|
| Glass fibre reinforced thermosetting plastic polyester | |
| Light grey similar to RAL 7047 | |
Protection Class | |
|---|---|
| IP 66 | |
IK Code & Impact Resistance | |
|---|---|
| 07 according to IEC 62262 | |
Temperature Resistance | |
|---|---|
| -40° C to +130° C with silicone seal | |
Lateral Flame Spread & Rate of Heat Dispersion | |
|---|---|
| HL 3 according to DIN EN 45545 | |
Smoke Gas Concentration | |
|---|---|
| HL 3 according to DIN EN 45545 | |
Smoke Gas Density | |
|---|---|
| HL 2 according to DIN EN 45545 | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Colour | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 620808060 | 75 x 80 x 56 mm | POB 62020 | Telegrey 4 (RAL 7047) | Send Request | ||||
 | 620808080 | 75 x 80 x 75 mm | POB 62025 | Telegrey 4 (RAL 7047) | Send Request | ||||
 | 620811060 | 75 x 110 x 56 mm | POB 62030 | Telegrey 4 (RAL 7047) | Send Request | ||||
 | 620811080 | 75 x 110 x 75 mm | POB 62035 | Telegrey 4 (RAL 7047) | Send Request | ||||
 | 620816080 | 75 x 160 x 75 mm | POB 62045 | Telegrey 4 (RAL 7047) | Send Request | ||||
 | 620819080 | 75 x 190 x 75 mm | POB 62055 | Telegrey 4 (RAL 7047) | Send Request | ||||
 | 620823080 | 75 x 230 x 75 mm | POB 62065 | Telegrey 4 (RAL 7047) | Send Request | ||||
 | 621212090 | 120 x 122 x 91 mm | POB 62075 | Telegrey 4 (RAL 7047) | Send Request | ||||
 | 621222090 | 120 x 220 x 91 mm | POB 62080 | Telegrey 4 (RAL 7047) | Send Request | ||||
 | 621616090 | 160 x 160 x 91 mm | POB 62085 | Telegrey 4 (RAL 7047) | Send Request | ||||
 | 621626090 | 160 x 260 x 91 mm | POB 62090 | Telegrey 4 (RAL 7047) | Send Request | ||||
 | 622526120 | 250 x 255 x 121 mm | POB 62105 | Telegrey 4 (RAL 7047) | Send Request | ||||
 | 622540120 | 250 x 400 x 121 mm | POB 62115 | Telegrey 4 (RAL 7047) | Send Request | ||||
 | 622540160 | 250 x 400 x 161 mm | POB 62120 | Telegrey 4 (RAL 7047) | Send Request |
Art.
622540160
W x L x H
250 x 400 x 161 mm
Product Type
POB 62120
Colour
Telegrey 4 (RAL 7047)
Art.
622540120
W x L x H
250 x 400 x 121 mm
Product Type
POB 62115
Colour
Telegrey 4 (RAL 7047)
Art.
622526120
W x L x H
250 x 255 x 121 mm
Product Type
POB 62105
Colour
Telegrey 4 (RAL 7047)
Art.
621626090
W x L x H
160 x 260 x 91 mm
Product Type
POB 62090
Colour
Telegrey 4 (RAL 7047)
Services
Unlock the Benefits of Our Services for Railway Polyester Enclosures
Discover how our expert services can elevate the performance and reliability of your railway polyester enclosure. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece
2
Powder Coating in Custom Colours
If our standard finish does not align with your vision or company branding, we can powder coat the enclosures in your chosen colour. Simply provide us with the desired RAL colour, texture, and gloss level
3
Passivation
Our enclosures are passivated using SurTec650, which protects the aluminium from corrosion and serves as an adhesion primer for painting. Alternatively, we can apply other surface treatments such as Alodine. Please contact us for further details
4
Printing
If you wish to display your company logo or inscription on the enclosure, that’s no problem. We offer printing services using pad printing or screen printing processes. For designs featuring detailed colour gradients, we utilise digital printing on a front foil
5
Engraving and Laser Marking
Do you require durable enclosure labelling for harsh environments? Engraving or laser marking is the ideal solution. Engravings can subsequently be colour-filled if desired
6
Procurement of Components
As a full-service supplier of terminal boxes, we also source the components for you and assemble them into a complete enclosure. Simply send us your parts list, and you’ll receive a ready-assembled solution
7
Assembly
Our assembly process is designed to deliver terminal boxes fully assembled. Terminal blocks and cable glands from well-known manufacturers are available from stock; however, we can source any required component to provide you with a seamless, full-service solution
8
Packaging and Logistics
Please specify how you would like your enclosures packaged. We offer bulk packaging for efficient on-site processing, or individual packaging in protective foil or your custom final packaging. Additionally, we can label each enclosure with your part number or serial number
