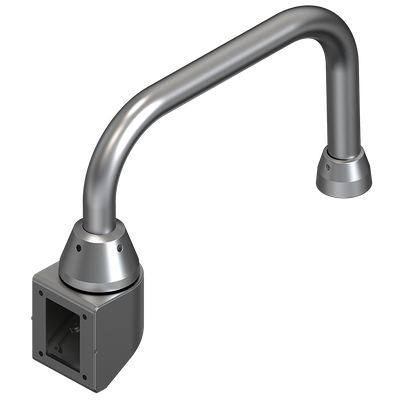

GTH 48 Easy / GTH 60 Easy
Stainless steel support arm
Features
IP65 / IP69K Protection for High-Pressure Cleaning
Tube Diameter: 48 mm and 60 mm
Higher Load Range than GTH48/60
Greatly Reduced Installation Effort
Technical Data
Material | |
|---|---|
| Connecting Tube: | Stainless steel 1.4301 |
| System components: | Stainless steel 1.4301 |
Free Cable Passage: | |
|---|---|
| GTH 48: | 41 mm |
| GTH 60: | 53 mm |
Protection Class | |
|---|---|
| IP65 / IP69K | |
Surface | |
|---|---|
| Tube: | ground, grain 240 |
| Pressure equalization membrane DAE | |
Temperature Resistance | |
|---|---|
| -25° C to +60° C | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Product Type | Rotable | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|---|
 | 570300050 | 49 x 49 x 500 mm | GTH easy 48 | Tube type I 0.5m | No | Send Request | ||||
 | 570300100 | 49 x 49 x 1000 mm | GTH easy 48 | Tube type I 1m | No | Send Request | ||||
 | 570300150 | 49 x 49 x 1500 mm | GTH easy 48 | Tube type I 1.5m | No | Send Request | ||||
 | 570300998 | Length to your specification | GTH easy 48 | Pipe type I, special length | No | Send Request | ||||
 | 570301050 | 300 x 49 x 500 mm | GTH easy 48 | Tube type J 0.5/0.3/0.3m | No | Send Request | ||||
 | 570301070 | 750 x 49 x 750 mm | GTH easy 48 | Tube type J 0.75/0.75/0.3m | No | Send Request | ||||
 | 570301100 | 750 x 49 x 1000 mm | GTH easy 48 | Tube type J 1.0/0.75/0.3m | No | Send Request | ||||
 | 570301998 | Length to your specification | GTH easy 48 | Pipe type J, special length | No | Send Request | ||||
 | 570302050 | 600 x 49 x 500 mm | GTH easy 48 | Tube type S 0.5/0.3/0.3m | No | Send Request | ||||
 | 570302100 | 600 x 49 x 1000 mm | GTH easy 48 | Tube type S 1.0/0.3/0.3m | No | Send Request | ||||
 | 570302998 | Length to your specification | GTH easy 48 | Pipe type S, special length | No | Send Request | ||||
 | 570366000 | 81 x 119 x 119 mm | GTH easy 48 | Top-mounted joint | Yes | Send Request | ||||
 | 570373000 | 57 x 82 x 82 mm | GTH easy 48 | Coupling | Yes | Send Request | ||||
 | 570376000 | 30 x 82 x 82 mm | GTH easy 48 | Console adapter | No | Send Request | ||||
 | 570379000 | 150 x 130 x 140 mm | GTH easy 48 | Wall console | No | Send Request | ||||
 | 570400050 | 61 x 61 x 500 mm | GTH easy 60 | Tube type I 0.5m | No | Send Request | ||||
 | 570400100 | 61 x 61 x 1000 mm | GTH easy 60 | Tube type I 1m | No | Send Request | ||||
 | 570400150 | 61 x 61 x 1500 mm | GTH easy 60 | Tube type I 1.5m | No | Send Request | ||||
 | 570400998 | Length to your specification | GTH easy 60 | Pipe type I, special length | No | Send Request | ||||
 | 570401050 | 300 x 61 x 500 mm | GTH easy 60 | Tube type J 0.5/0.3/0.3m | No | Send Request | ||||
 | 570401070 | 750 x 61 x 750 mm | GTH easy 60 | Tube type J 0.75/0.75/0.3m | No | Send Request | ||||
 | 570401100 | 750 x 61 x 1000 mm | GTH easy 60 | Tube type J 1.0/0.75/0.3m | No | Send Request | ||||
 | 570401998 | Length to your specification | GTH easy 60 | Pipe type J, special length | No | Send Request | ||||
 | 570402050 | 600 x 61 x 500 mm | GTH easy 60 | Tube type S 0.5/0.3/0.3m | No | Send Request | ||||
 | 570402100 | 600 x 61 x 1000 mm | GTH easy 60 | Tube type S 1.0/0.3/0.3m | No | Send Request | ||||
 | 570402998 | Length to your specification | GTH easy 60 | Pipe type S, special length | No | Send Request | ||||
 | 570466000 | 96 x 119 x 119 mm | GTH easy 60 | Top-mounted joint | Yes | Send Request | ||||
 | 570473000 | 76 x 112 x 112 mm | GTH easy 60 | Coupling | Yes | Send Request | ||||
 | 570476000 | 33 x 112 x 112 mm | GTH easy 60 | Console adapter | No | Send Request | ||||
 | 570479000 | 150 x 130 x 140 mm | GTH easy 60 | Wall console | No | Send Request |
Art.
570479000
W x L x H
150 x 130 x 140 mm
Product Type
GTH easy 60
Product Type
Wall console
Rotable
No
Art.
570476000
W x L x H
33 x 112 x 112 mm
Product Type
GTH easy 60
Product Type
Console adapter
Rotable
No
Art.
570473000
W x L x H
76 x 112 x 112 mm
Product Type
GTH easy 60
Product Type
Coupling
Rotable
Yes
Art.
570466000
W x L x H
96 x 119 x 119 mm
Product Type
GTH easy 60
Product Type
Top-mounted joint
Rotable
Yes
