GTH 48 / GTH 60

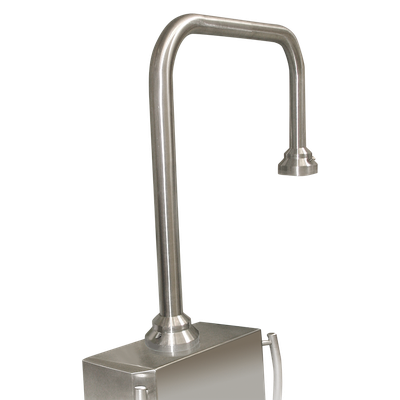

The GTH 48 and GTH 60 stainless-steel supporting-arm systems have been developed for use in particularly harsh and particularly sensitive areas. Their applications can primarily be found in the fields of hygiene, foodstuffs, chemicals and pharmaceuticals, and in all other sectors in which stainless steel is indispensable for a supporting-arm system.
Features
Hygienic Design with High-Quality Pipe Material
Pipe Diameter: 48 mm and 60 mm
Pipe Design in S, J, and I Shapes
Custom Pipe Lengths and Geometry on Request
Technical Data
Material | |
|---|---|
| Connecting Tube: | Stainless steel 1.4301 |
| System components: | Stainless steel 1.4305 |
Free Cable Passage | |
|---|---|
| GTH 48: | 41 mm |
| GTH 60: | 53 mm |
Protection Class | |
|---|---|
| IP 69 according to EN 60529 | |
Surface | |
|---|---|
| Tube: | Ground, grain 240 |
Temperature Resistance | |
|---|---|
| -25° C to +60° C | |
Scope of Delivery | |
|---|---|
| Components and pipe completely assembled on reques | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Product Type | Rotable | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|---|
 | 570100050 | 49 x 49 x 500 mm | GTH 48 | Tube type I (500 mm) | No | Send Request | ||||
 | 570100100 | 49 x 49 x 1000 mm | GTH 48 | Tube type I (1000 mm) | No | Send Request | ||||
 | 570100150 | 49 x 49 x 1500 mm | GTH 48 | Tube type I (1500 mm) | No | Send Request | ||||
 | 570100998 | Length to your specification | GTH 48 | Connection pipe I, special length | No | Send Request | ||||
 | 570101050 | 300 x 49 x 500 mm | GTH 48 | Tube type J (500 mm) | No | Send Request | ||||
 | 570101070 | 750 x 49 x 750 mm | GTH 48 | Tube type J (1000 mm) | No | Send Request | ||||
 | 570101100 | 750 x 49 x 1000 mm | GTH 48 | Tube type J (1500 mm) | No | Send Request | ||||
 | 570101998 | Length to your specification | GTH 48 | Connection pipe J, special length | No | Send Request | ||||
 | 570102050 | 600 x 49 x 500 mm | GTH 48 | Tube type S (500 mm) | No | Send Request | ||||
 | 570102100 | 600 x 49 x 1000 mm | GTH 48 | Tube type S (1000 mm) | No | Send Request | ||||
 | 570102998 | Length to your specification | GTH 48 | Connection pipe S, special length | No | Send Request | ||||
 | 570166000 | 70 x 118 x 118 mm | GTH 48 | Top-mounted joint standard | Yes | Send Request | ||||
 | 570166010 | GTH 48 | Top-mounted joint EMC | Yes | Send Request | |||||
 | 570166020 | 82 x 118 x 118 mm | GTH 48 | Top joint for external clamping | Yes | Send Request | ||||
 | 570172000 | 110 x 118 x 118 mm | GTH 48 | Base with cable outlet (hanging / standing) | No | Send Request | ||||
 | 570173000 | 70 x 118 x 118 mm | GTH 48 | Coupling standard | Yes | Send Request | ||||
 | 570173010 | 70 x 118 x 118 mm | GTH 48 | Coupling EMC | Yes | Send Request | ||||
 | 570173020 | 82 x 118 x 118 mm | GTH 48 | Coupling for external clamping | Yes | Send Request | ||||
 | 570174000 | 80 x 118 x 118 mm | GTH 48 | Base (hanging / standing) | No | Send Request | ||||
 | 570176000 | 40 x 118 x 118 mm | GTH 48 | Console adapter | No | Send Request | ||||
 | 570179000 | 138 x 178 x 130 mm | GTH 48 | Wall console | No | Send Request | ||||
 | 570200050 | 61 x 61 x 500 mm | GTH 60 | Tube type I (500 mm) | No | Send Request | ||||
 | 570200100 | 61 x 61 x 1000 mm | GTH 60 | Tube type I (1000 mm) | No | Send Request | ||||
 | 570200150 | 61 x 61 x 1500 mm | GTH 60 | Tube type I (1500 mm) | No | Send Request | ||||
 | 570200998 | Length to your specification | GTH 60 | Connection pipe I, special length | No | Send Request | ||||
 | 570201050 | 300 x 61 x 500 mm | GTH 60 | Tube type J (500 mm) | No | Send Request | ||||
 | 570201070 | 750 x 61 x 750 mm | GTH 60 | Tube type J (1000 mm) | No | Send Request | ||||
 | 570201100 | 750 x 61 x 1000 mm | GTH 60 | Tube type J (1500 mm) | No | Send Request | ||||
 | 570201998 | Length to your specification | GTH 60 | Connection pipe J, special length | No | Send Request | ||||
 | 570202050 | 600 x 61 x 500 mm | GTH 60 | Tube type S (500 mm) | No | Send Request | ||||
 | 570202100 | 600 x 61 x 1000 mm | GTH 60 | Tube type S (1000 mm) | No | Send Request | ||||
 | 570202998 | Length to your specification | GTH 60 | Connection pipe S, special length | No | Send Request | ||||
 | 570266000 | 81 x 130 x 130 mm | GTH 60 | Top-mounted joint standard | Yes | Send Request | ||||
 | 570266010 | GTH 60 | Top-mounted joint EMC | Yes | Send Request | |||||
 | 570266020 | 92 x 130 x 130 mm | GTH 60 | Top joint for external clamping | Yes | Send Request | ||||
 | 570272000 | 115 x 130 x 130 mm | GTH 60 | Base with cable outlet (hanging / standing) | No | Send Request | ||||
 | 570273000 | 81 x 130 x 130 mm | GTH 60 | Coupling standard | Yes | Send Request | ||||
 | 570273010 | GTH 60 | Coupling EMC | Yes | Send Request | |||||
 | 570273020 | 92 x 130 x 130 mm | GTH 60 | Coupling for external clamping | Yes | Send Request | ||||
 | 570274000 | 85 x 130 x 130 mm | GTH 60 | Base (hanging / standing) | No | Send Request | ||||
 | 570276000 | 40 x 130 x 130 mm | GTH 60 | Console adapter | No | Send Request | ||||
 | 570279000 | 149 x 192 x 130 mm | GTH 60 | Wall console | No | Send Request |
Art.
570279000
W x L x H
149 x 192 x 130 mm
Product Type
GTH 60
Product Type
Wall console
Rotable
No
Art.
570276000
W x L x H
40 x 130 x 130 mm
Product Type
GTH 60
Product Type
Console adapter
Rotable
No
Art.
570274000
W x L x H
85 x 130 x 130 mm
Product Type
GTH 60
Product Type
Base (hanging / standing)
Rotable
No
Art.
570273020
W x L x H
92 x 130 x 130 mm
Product Type
GTH 60
Product Type
Coupling for external clamping
Rotable
Yes
