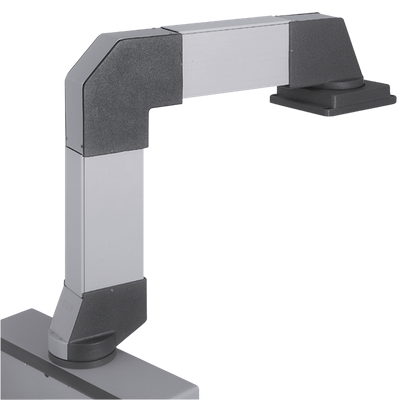

GTK 80 Support Arm
Industrial GTK 80 square gear tray with open cable duct for heavy loads. Maximum load is 200 kg at a reach of 1.20 m.
Features
Modular Design for Wall, Top, or Floor Mounting
Open Cable Duct for Easy Access
Technical Data
Material | |
|---|---|
| Connecting tube: | Square ST 37 similar to DIN EN 10305-5 |
| Components: | Cast iron with nodular graphite or cast aluminum |
| Cable duct / cover: | Extruded aluminum profile |
| Bearing: | Ball bearing |
| Bellows: | Textile fabric |
| Wall thickness: | 5 mm or 8 mm |
Colour | |
|---|---|
| Cable duct / cover: | RAL 7035, light grey |
| Components: | RAL 7043, traffic grey B powder-coated |
| (special color on request) | |
Protection Class | |
|---|---|
| IP 54 according to EN 60529 | |
| Only connection top flange, enclosures | |
Free Cable Passage | |
|---|---|
| 57 cm⊃2; | |
Scope of Delivery | |
|---|---|
| Individual system component incl. cable duct cover and mounting material | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Rotable | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 100941658 | Length to your specification | Cable duct (variable length) | No | Send Request | ||||
 | 100941688 | Length to your specification | Steel tube 80 x 80 x 8 mm (variable length) | No | Send Request | ||||
 | 100942310 | 80 x 80 x 500 mm | Steel tube 80 x 80 x 8 mm (0,5 m) | No | Send Request | ||||
 | 100942320 | 80 x 80 x 1000 mm | Steel tube 80 x 80 x 8 mm (1 m) | No | Send Request | ||||
 | 100942330 | 80 x 80 x 2000 mm | Steel tube 80 x 80 x 8 mm (2 m) | No | Send Request | ||||
 | 100942340 | 80 x 80 x 3000 mm | Steel tube 80 x 80 x 8 mm (3 m) | No | Send Request | ||||
 | 100942350 | 163 x 92 x 500 mm | Cable duct (0,5 m) | No | Send Request | ||||
 | 100942360 | 163 x 92 x 1000 mm | Cable duct (1 m) | No | Send Request | ||||
 | 100942370 | 163 x 92 x 2000 mm | Cable duct (2 m) | No | Send Request | ||||
 | 100942380 | 163 x 92 x 3000 mm | Cable duct (3 m) | No | Send Request | ||||
 | 499000200 | 64 x 190 x 190 mm | Top-flange type B | No | Send Request | ||||
 | 499000300 | 64 x 190 x 190 mm | Top-flange type A | No | Send Request | ||||
 | 499066010 | 232 x 215 x 305 mm | Top-mounted joint | Yes | Send Request | ||||
 | 499067010 | 184 x 130 x 325 mm | Intermediate joint | Yes | Send Request | ||||
 | 499070010 | 263 x 205 x 274 mm | Wall hinge | Yes | Send Request | ||||
 | 499071110 | 266 x 104 x 262 mm | Angle (FH) | No | Send Request | ||||
 | 499071200 | 216 x 104 x 216 mm | Angle (AS) | No | Send Request | ||||
 | 499073010 | 164 x 158 x 227 mm | Coupling | Yes | Send Request | ||||
 | 499074010 | 106 x 208 x 188 mm | Base / wall flange | No | Send Request | ||||
 | 499075010 | 221 x 158 x 253 mm | Angle coupling | Yes | Send Request |
Art.
499075010
W x L x H
221 x 158 x 253 mm
Product Type
Angle coupling
Rotable
Yes
Art.
499074010
W x L x H
106 x 208 x 188 mm
Product Type
Base / wall flange
Rotable
No
Art.
499073010
W x L x H
164 x 158 x 227 mm
Product Type
Coupling
Rotable
Yes
Art.
499071200
W x L x H
216 x 104 x 216 mm
Product Type
Angle (AS)
Rotable
No
