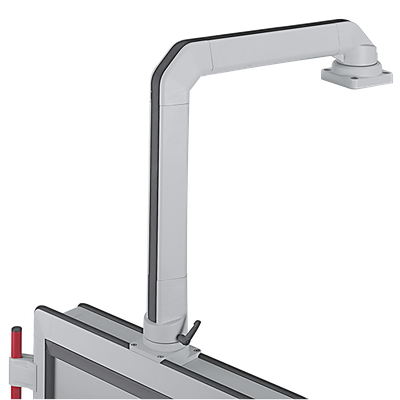

GTK Electronic Support Arm
The GTKe suspension system is a modular industrial aluminium-profile supporting-arm system for integration of control enclosures. It is designed for smaller loads of a maximum of 30 kg, with a reach of 1.0 m.
Features
Elegant Support Arm for Panels up to 30 kg
Modular Design with Wall, Top or Floor Adaptation
Aluminium Profile with Cable Access
Technical Data
Material | |
|---|---|
| Connecting tube: | DIN EN 573 EN AW-AlMgSi |
| Components: | DIN EN 1706 EN AC-AlSi 12 (Fe) |
| Cover profile: | TPE |
Colour | |
|---|---|
| Aluminum parts: | RAL 7035, light grey powder-coated |
| Cover profile: | RAL 9005, deep black |
Protection Class | |
|---|---|
| IP 54 according to EN 60529 | |
Free Cable Passage | |
|---|---|
| Connecting tube: | 18 mm opening |
| System elements: | 53 mm |
Scope of Delivery | |
|---|---|
| Individual system components incl. cable duct cover and mounting material | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Rotable | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 494500010 | 15 x 80 x 80 mm | Adapter plate Siemens-PRO | No | Send Request | ||||
 | 494510008 | Length to your specification | Aluminium profile (variable length) | No | Send Request | ||||
 | 494510010 | 64 x 63 x 500 mm | Aluminium profile (0,5 m) | No | Send Request | ||||
 | 494510020 | 64 x 63 x 1000 mm | Aluminium profile (1 m) | No | Send Request | ||||
 | 494510030 | 64 x 63 x 2000 mm | Aluminium profile (2 m) | No | Send Request | ||||
 | 494566000 | 125 x 106 x 125 mm | Top-mounted joint | Yes | Send Request | ||||
 | 494569000 | 7 x 25 x 2500 mm | Spare-profile cover 2,5 m | No | Send Request | ||||
 | 494570000 | 184 x 109 x 152 mm | Wall hinge | Yes | Send Request | ||||
 | 494571000 | 101 x 64 x 101 mm | Angle | No | Send Request | ||||
 | 494572000 | 90 x 105 x 105 mm | Stand (base) | No | Send Request | ||||
 | 494573000 | 119 x 78 x 78 mm | Coupling | Yes | Send Request | ||||
 | 494573020 | 134 x 80 x 80 mm | Coupling Siemens-PRO | Yes | Send Request | ||||
 | 494575000 | 99 x 78 x 111 mm | Angle coupling | Yes | Send Request | ||||
 | 494575020 | 114 x 80 x 112 mm | Angle coupling Siemens-PRO | Yes | Send Request | ||||
 | 494577000 | 135 x 79 x 79 mm | Flange coupling | Yes | Send Request | ||||
 | 494578000 | 115 x 79 x 112 mm | Flange angle coupling | Yes | Send Request |
Art.
494578000
W x L x H
115 x 79 x 112 mm
Product Type
Flange angle coupling
Rotable
Yes
Art.
494577000
W x L x H
135 x 79 x 79 mm
Product Type
Flange coupling
Rotable
Yes
Art.
494575020
W x L x H
114 x 80 x 112 mm
Product Type
Angle coupling Siemens-PRO
Rotable
Yes
Art.
494575000
W x L x H
99 x 78 x 111 mm
Product Type
Angle coupling
Rotable
Yes
