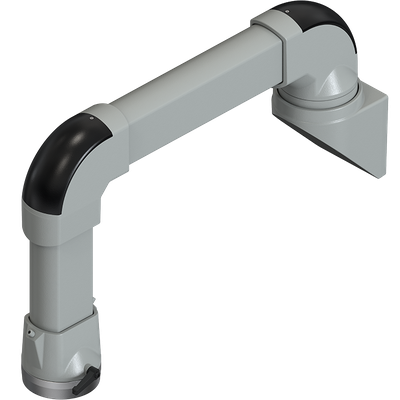

GTL Support Arm
With a static load of max. 125 kg, the new GTL equipment carrier system meets all requirements in the industrial sector
Features
Adjustment function for horizontal alignment
Combinable with GTN II Carrier and GTV Height Adjustment
Max. Static Load: 125 kg, Projection up to 3 Metres
Large Cable Entry Area
Technical Data
Material | |
|---|---|
| Connecting tube: | DIN EN 573 EN AW-AlMgSi; |
| Components: | DIN EN 1706 EN AC-AlSi 12 (Fe) |
Colour | |
|---|---|
| Tube and components in RAL 7035, light grey | |
Coating | |
|---|---|
| Powder coating | |
Protection Class | |
|---|---|
| IP 54 according to EN 60529 | |
Scope of Delivery | |
|---|---|
| Tube and components Ø 70 mm | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Rotable | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 496220010 | 120 x 78 x 500 mm | Aluminium profile closed (0,5 m) | No | Send Request | ||||
 | 496220020 | 120 x 78 x 1000 mm | Aluminium profile closed (1 m) | No | Send Request | ||||
 | 496220030 | 120 x 78 x 2000 mm | Aluminium profile closed (2 m) | No | Send Request | ||||
 | 496220040 | 120 x 78 x 3000 mm | Aluminium profile closed (3 m) | No | Send Request | ||||
 | 496220110 | 120 x 78 x 500 mm | Aluminium profile for coupling (0.5m) | No | Send Request | ||||
 | 496220120 | 120 x 78 x 1000 mm | Aluminium profile for coupling (1m) | No | Send Request | ||||
 | 496220988 | Length to your specification | Aluminium profile for coupling (variable length) | No | Send Request | ||||
 | 496220998 | Length to your specification | Aluminium profile closed (variable length) | No | Send Request | ||||
 | 496221010 | 120 x 78 x 500 mm | Aluminium profile closed anodized (0,5 m) | No | Send Request | ||||
 | 496221020 | 120 x 78 x 1000 mm | Aluminium profile closed anodized (1 m) | No | Send Request | ||||
 | 496221030 | 120 x 78 x 2000 mm | Aluminium profile closed anodized (2 m) | No | Send Request | ||||
 | 496221040 | 120 x 78 x 3000 mm | Aluminium profile closed anodized (3 m) | No | Send Request | ||||
 | 496221110 | 120 x 78 x 500 mm | Aluminium profile for anodised coupling (0.5m) | No | Send Request | ||||
 | 496221120 | 120 x 78 x 1000 mm | Anodised aluminium profile for coupling (1m) | No | Send Request | ||||
 | 496221988 | Length to your specification | Anodised aluminium profile for coupling (variable length) | No | Send Request | ||||
 | 496221998 | Length to your specification | Anodised aluminium profile (variable length) | No | Send Request | ||||
 | 496266000 | 254 x 200 x 240 mm | Top-mounted joint | Yes | Send Request | ||||
 | 496267000 | 436 x 150 x 280 mm | Intermediate joint | Yes | Send Request | ||||
| 496267010 | Reinforced intermediate joint | Yes | Send Request | |||||
 | 496270000 | 415 x 177 x 240 mm | Wall hinge | Yes | Send Request | ||||
 | 496271000 | 210 x 101 x 215 mm | Angle | No | Send Request | ||||
 | 496271470 | 210 x 101 x 215 mm | Angle | No | Send Request | ||||
 | 496272000 | 75 x 200 x 200 mm | Stand (base) | No | Send Request | ||||
 | 496273000 | 143 x 150 x 150 mm | Coupling | Yes | Send Request | ||||
 | 496275000 | 230 x 150 x 215 mm | Angle coupling | Yes | Send Request |
Art.
496275000
W x L x H
230 x 150 x 215 mm
Product Type
Angle coupling
Rotable
Yes
Art.
496273000
W x L x H
143 x 150 x 150 mm
Product Type
Coupling
Rotable
Yes
Art.
496272000
W x L x H
75 x 200 x 200 mm
Product Type
Stand (base)
Rotable
No
Art.
496271470
W x L x H
210 x 101 x 215 mm
Product Type
Angle
Rotable
No
Services
Unlock the Benefits of Our Services for Support Arm Systems
Discover how our expert services can elevate the performance and reliability of your Support Arm Systems. With our hands-on approach and proven expertise, we deliver tailored solutions that streamline every step – from design and production through to assembly and logistics – ensuring you get the best quality and value every time.
1
Mechanical Machining
We machine enclosures to your precise drawings. You bear no risk of rejects and benefit from cost-effective production, fast delivery times, and consistent quality – with a minimum order quantity of just one piece.
2
Painting in Special Colour
If the colour does not match your concept or company design, we can also paint the enclosures in your desired hue. Simply inform us of the required RAL colour, texture, and gloss level. We also offer manufacturing of enclosures in special granules from approximately 250 pieces.
