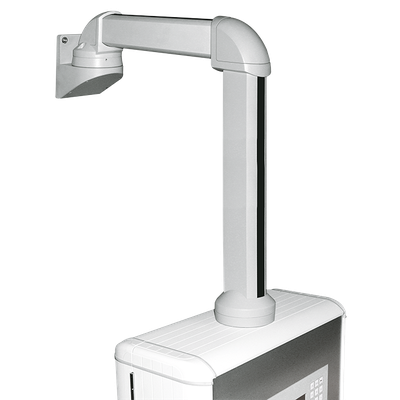

GTN II Support Arm
The GTN II is the modular all-rounder among the aluminium-profile supporting-arm systems and is designed for medium to heavy loads of up to 80 kg, with a reach of 1.00 m.
Features
Design Aluminium Suspension System
Max. Load up to 80 kg, Projection up to 2 Metres
Combinable with Smaller GTS Support Arm
Technical Data
Material | |
|---|---|
| Connecting tube: | DIN EN 573 EN AW-AlMgSi |
| Components: | DIN EN 1706 EN AC-AlSi 12 (Fe) |
| Cover profile: | Plastic TPE |
Colour | |
|---|---|
| Tube, components: | RAL 7035, light grey |
| Cover profile: | RAL 9005, jet black |
Protection Class | |
|---|---|
| IP 54 according to EN 60529 | |
Painting | |
|---|---|
| Powder coating | |
Free Cable Passage | |
|---|---|
| Connecting tube open: | 27 x 32 mm |
| Connecting tube closed: | 51 mm Ø |
| System components: | 51 mm Ø |
Scope of Delivery | |
|---|---|
| Individual system components incl. cable duct cover and mounting material | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Rotable | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 494700010 | 15 x 125 x 125 mm | Adapter plate Siemens-PRO | No | Send Request | ||||
 | 494700048 | Support column | No | Send Request | |||||
 | 494700060 | Adjustment set | No | Send Request | |||||
 | 494710010 | 90 x 65 x 500 mm | Aluminium profile open (0,5 m) | No | Send Request | ||||
 | 494710020 | 90 x 65 x 1000 mm | Aluminium profile open (1 m) | No | Send Request | ||||
 | 494710030 | 90 x 65 x 2000 mm | Aluminium profile open (2 m) | No | Send Request | ||||
 | 494710998 | Length to your specification | Aluminium profile open (variable length) | No | Send Request | ||||
 | 494711010 | 90 x 65 x 500 mm | Aluminium profile open anodized (0,5 m) | No | Send Request | ||||
 | 494711020 | 90 x 65 x 1000 mm | Aluminium profile open anodized (1 m) | No | Send Request | ||||
 | 494711030 | 90 x 65 x 2000 mm | Aluminium profile open anodized (2 m) | No | Send Request | ||||
 | 494711998 | Length to your specification | Anodised aluminium profile (variable length) | No | Send Request | ||||
 | 494720010 | 90 x 65 x 500 mm | Aluminium profile closed (0,5 m) | No | Send Request | ||||
 | 494720020 | 90 x 65 x 1000 mm | Aluminium profile closed (1 m) | No | Send Request | ||||
 | 494720030 | 90 x 65 x 2000 mm | Aluminium profile closed (2 m) | No | Send Request | ||||
 | 494720998 | Length to your specification | Aluminium profile closed (variable length) | No | Send Request | ||||
 | 494721010 | 90 x 65 x 500 mm | Aluminium profile closed anodized (0,5 m) | No | Send Request | ||||
 | 494721020 | 90 x 65 x 1000 mm | Aluminium profile closed anodized (1 m) | No | Send Request | ||||
 | 494721030 | 90 x 65 x 2000 mm | Aluminium profile closed anodized (2 m) | No | Send Request | ||||
 | 494721998 | Length to your specification | Anodised aluminium profile (variable length) | No | Send Request | ||||
 | 494730010 | 664 x 78 x 78 mm | Height adjustment GTN II / GT 48/2 | Yes | Send Request | ||||
 | 494730020 | 1137 x 160 x 136 mm | GTN II height adjustment, suspended carriage | Yes | Send Request | ||||
 | 494730030 | 1137 x 160 x 136 mm | Height adjustment GTN II, carriage upright | Yes | Send Request | ||||
 | 494766000 | 183 x 145 x 195 mm | Top-mounted joint | Yes | Send Request | ||||
 | 494766010 | 183 x 145 x 195 mm | Top-mounted joint light | Yes | Send Request | ||||
 | 494766200 | 183 x 145 x 195 mm | Top-mounted joint (ceiling mounting) | Yes | Send Request | ||||
 | 494766300 | 332 x 145 x 195 mm | Vertical attachment joint 250mm | Yes | Send Request | ||||
 | 494767000 | 292 x 136 x 152 mm | Intermediate joint ‘Z | Yes | Send Request | ||||
 | 494767010 | 292 x 136 x 152 mm | Intermediate joint ‘Z’ light | Yes | Send Request | ||||
 | 494767020 | 292 x 136 x 152 mm | Intermediate joint ‘S’ | Yes | Send Request | ||||
 | 494767030 | 292 x 136 x 152 mm | Intermediate joint ‘S’ light | Yes | Send Request | ||||
 | 494770000 | 254 x 141 x 167 mm | Wall hinge | Yes | Send Request | ||||
 | 494770010 | 254 x 141 x 167 mm | Wall hinge light | Yes | Send Request | ||||
 | 494770200 | 254 x 141 x 167 mm | Wall hinge hanging | Yes | Send Request | ||||
 | 494770300 | 400 x 143 x 162 mm | Wall hinge vertical | Yes | Send Request | ||||
 | 494771000 | 131 x 83 x 131 mm | Angle | No | Send Request | ||||
 | 494771440 | 136 x 83 x 131 mm | Angle GTN II / GTS | No | Send Request | ||||
 | 494771450 | 136 x 83 x 136 mm | Angle GTN II / GTK electronic | No | Send Request | ||||
 | 494771490 | 186 x 83 x 131 mm | Angle GTN II / GT 48/2 | No | Send Request | ||||
 | 494772000 | 49 x 195 x 145 mm | Fixed base | No | Send Request | ||||
 | 494772200 | 64 x 145 x 195 mm | Swivelling base with adapter plate | Yes | Send Request | ||||
 | 494772210 | 34 x 146 x 146 mm | Swivelling stand | Yes | Send Request | ||||
 | 494772220 | 34 x 146 x 146 mm | Swivelling stand light | Yes | Send Request | ||||
 | 494773000 | 69 x 125 x 125 mm | Coupling | Yes | Send Request | ||||
 | 494773020 | 84 x 129 x 129 mm | Coupling Siemens-PRO | Yes | Send Request | ||||
 | 494773030 | 47 x 129 x 129 mm | Coupling fixed | No | Send Request | ||||
 | 494775000 | 150 x 129 x 129 mm | Angle coupling | Yes | Send Request | ||||
 | 494775020 | 165 x 129 x 129 mm | Angle coupling Siemens-PRO | Yes | Send Request | ||||
 | 494775490 | 265 x 136 x 143 mm | Angle coupling to GT 48/2 | Yes | Send Request | ||||
 | 494776000 | 44 x 125 x 125 mm | Desk flange 15° | No | Send Request | ||||
 | 494780000 | 110 x 162 x 162 mm | Inclinationadapter | No | Send Request |
Art.
494780000
W x L x H
110 x 162 x 162 mm
Product Type
Inclinationadapter
Rotable
No
Art.
494776000
W x L x H
44 x 125 x 125 mm
Product Type
Desk flange 15°
Rotable
No
Art.
494775490
W x L x H
265 x 136 x 143 mm
Product Type
Angle coupling to GT 48/2
Rotable
Yes
Art.
494775020
W x L x H
165 x 129 x 129 mm
Product Type
Angle coupling Siemens-PRO
Rotable
Yes
