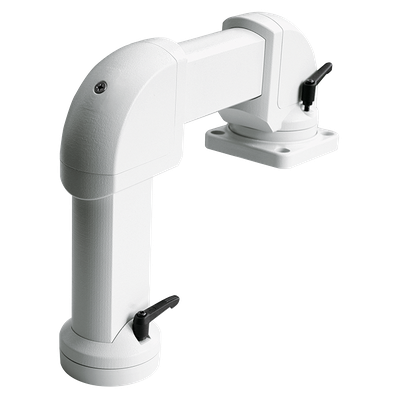

GTS Support Arm
The GTS is a modular aluminium-profile supporting-arm system with an attractive styling for integration of control enclosures of low load levels up to a maximal of 30 kg and with a reach of 1 m.
Features
Maximum Reach of 1.5 m at 20 kg Load
With VESA Adapter
Combinable with Larger GTN II Support Arm
Closed Cable Duct (Unlike GTKe)
Technical Data
Material | |
|---|---|
| Connecting tube: | DIN EN 573 EN AW-AlMgSi |
| Components: | DIN EN 1706 EN AC-AlSi 12 (Fe) |
Colour | |
|---|---|
| Tube, components: RAL 7035, light grey | |
| Special colors on request | |
Protection Class | |
|---|---|
| IP 54 according to EN 60529 | |
Painting | |
|---|---|
| Powder coating | |
Seal | |
|---|---|
| CR or PU foam 0° C to +50° C | |
Free Cable Passage | |
|---|---|
| Connecting tube: 53 x 19 mm System components: 53 x 19 mm | |
Scope of Delivery | |
|---|---|
| Individual system components incl. mounting material | |
Accessories | |
|---|---|
| Adapter for signal lamp M 20 x 1.5 mm | |
| Adapter for signal lamp M 22 x 1.5 mm | |
Product Data & Accessories
| Expand | Art. | W x L x H | Product Type | Rotable | 3D | Accessories | |||
|---|---|---|---|---|---|---|---|---|---|
 | 494410010 | 70 x 45 x 500 mm | Aluminium profile (0,5 m) | No | Send Request | ||||
 | 494410020 | 70 x 45 x 1000 mm | Aluminium profile (1 m) | No | Send Request | ||||
 | 494410030 | 70 x 45 x 2000 mm | Aluminium profile (2 m) | No | Send Request | ||||
 | 494410998 | Length to your specification | Aluminium profile (variable length) | No | Send Request | ||||
 | 494411010 | 70 x 45 x 500 mm | Aluminium profile anodized (0,5 m) | No | Send Request | ||||
 | 494411020 | 70 x 45 x 1000 mm | Aluminium profile anodized (1 m) | No | Send Request | ||||
 | 494411030 | 70 x 45 x 2000 mm | Aluminium profile anodized (2 m) | No | Send Request | ||||
 | 494462000 | 166 x 133 x 133 mm | Swivel/incline coupling | Yes | Send Request | ||||
 | 494466000 | 151 x 105 x 123 mm | Top-mounted joint | Yes | Send Request | ||||
 | 494470000 | 236 x 119 x 135 mm | Wall hinge W | Yes | Send Request | ||||
 | 494470300 | 153 x 119 x 110 mm | Wall hinge S | Yes | Send Request | ||||
 | 494471000 | 117 x 59 x 117 mm | Angle | No | Send Request | ||||
 | 494471490 | 117 x 59 x 117 mm | Angle GTS to GT 48/2 | No | Send Request | ||||
 | 494472000 | 37 x 105 x 105 mm | Stand (base) | No | Send Request | ||||
 | 494472210 | 51 x 105 x 105 mm | Swivelling stand | Yes | Send Request | ||||
 | 494473000 | 65 x 90 x 90 mm | Coupling | Yes | Send Request | ||||
 | 494473020 | 56 x 96 x 96 mm | Coupling Siemens-PRO | Yes | Send Request | ||||
 | 494473760 | 101 x 90 x 90 mm | Coupling 15° | Yes | Send Request | ||||
 | 494475000 | 135 x 59 x 117 mm | Angle coupling | Yes | Send Request | ||||
 | 494475020 | 151 x 59 x 117 mm | Angle coupling Siemens-PRO | Yes | Send Request | ||||
 | 494475760 | 169 x 59 x 117 mm | Angled coupling 15° | Yes | Send Request | ||||
 | 494477000 | 84 x 105 x 105 mm | Flange coupling | Yes | Send Request | ||||
 | 494480000 | 88 x 133 x 133 mm | Inclinationadapter | No | Send Request | ||||
 | 494499998 | Length to your specification | Aluminium profile (variable length) | No | Send Request |
Art.
494499998
W x L x H
Length to your specification
Product Type
Aluminium profile (variable length)
Rotable
No
Art.
494480000
W x L x H
88 x 133 x 133 mm
Product Type
Inclinationadapter
Rotable
No
Art.
494477000
W x L x H
84 x 105 x 105 mm
Product Type
Flange coupling
Rotable
Yes
Art.
494475760
W x L x H
169 x 59 x 117 mm
Product Type
Angled coupling 15°
Rotable
Yes
