B-Series Heavy Duty Lifting Column
Load: max. 12,000 N | Stroke: max. 3,000 mm | Speed max. 250 mm/s
Features
Low friction and great offset capacity
Great offset capacity
Push/Pull
2/3-sections
Customized

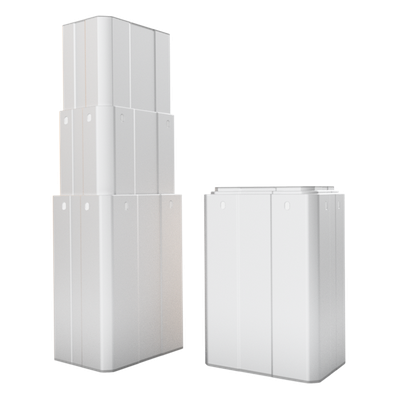

High Duty Lifting Column – B-Series
The B-Series lifting column is a robust, high-performance solution built for demanding applications with both centric and offset loads. Commonly used in industrial automation, it delivers a flexible and heavy-duty option for a wide range of motion control needs. Available in 2- or 3-stage configurations with either a brushed or brushless motor, the B-Series supports up to a 100% duty cycle—making it ideal for continuous operation in industrial environments. Available with control electronics for manual control, Modbus RTU, CAN, EtherCAT and PROFINET.
Technical Data
General Info | |
|---|---|
| Stroke | Max. 3,000 mm |
| Push Load | Max. 12,000 N |
| Side Load | Max. 2,500 Nm |
| Speed | Max. 250 mm/s |
