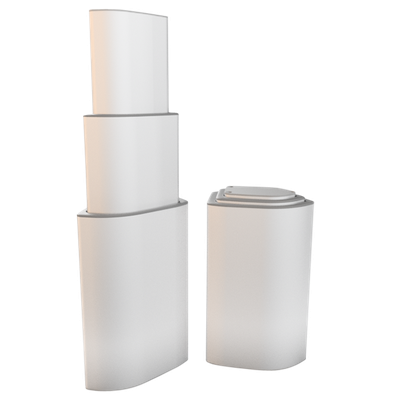

F-Series Slim Lifting Column
Load: max. 2,500 N | Stroke: max. 800 mm | Speed max. 35 mm/s
Features
Robust
Slim asymmetric design
Very low friction
Customized
2/3-sections
Slim Lifting Column – F-Series
The F-Series lifting column is made of asymmetrical tubes with a softer design compared to conventional lifting columns. With its small size and asymmetrical shape, F-Series lifting columns are suitable for applications that require a compact lifting column with a dynamic design that fits into the design of the application. The F-Series lifting columns are mainly used for medical chairs and tables.
Technical Data
General Info | |
|---|---|
| Stroke | Max. 800 mm |
| Push Load | Max. 2,500 N |
| Side Load | Max. 800 Nm |
| Speed | Max. 35 mm/s |
