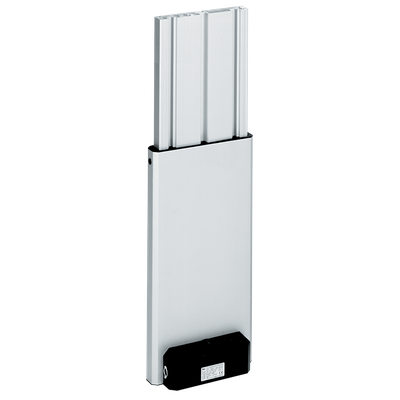

Multilift Lifting Columns
Load: max. 3,000 N | Stroke: max. 498 mm | Speed max. 16 mm/s
Features
Quadruple bearings with POM slide bearing shells
High-performance DC motor
Integrated limit switches
Self-locking, even under max. load
Lifting Column – Mulitlift
The Multilift lifting column is used for stepless height adjustment of tables, fixtures, assembly workstations and similar applications. The lifting column can be operated individually or in pairs in parallel. For precise synchronization of several drives (up to max. 4), a synchronous version with special drive control is available.
Technical Data
General Info | |
|---|---|
| Stroke | Max. 498 mm |
| Push Load | Max. 3,000 N |
| Pull Load | Max. 1,000 N |
| Speed | 8 - 16 mm/s |
| Degree of Protection | IP20 |
