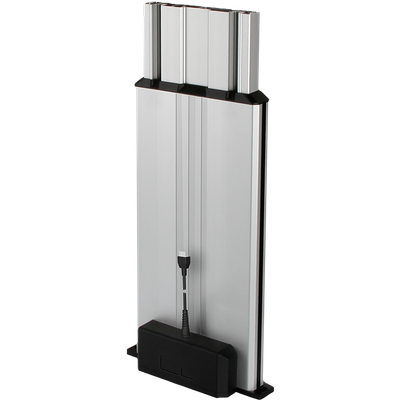

Multilift II Lifting Columns
Load: max. 3,000 N | Stroke: max. 498 mm | Speed max. 8 mm/s
Features
Integrated limit switches
Slim design
Self-locking, even at max. load
Lateral fixing slot in external profile
Position feedback by hall sensor
Mulitlift ll - Electric Lifting Column with Internal Cushioning
Thanks to its internal damping system, the Multilift II impact electric lifting column absorbs high impact forces that can occur, for example, when unloading a workpiece. This makes the new lifting column particularly suitable for adjusting the height of industrial assembly tables. The damping system prevents overloading due to strong dynamic stress. Such a system is so far unique on the market.
Technical Data
General Info | |
|---|---|
| Stroke | Max. 498 mm |
| Push Load | Max. 3,000 N |
| Pull Load | Max. 3,000 N |
| Speed | 8 mm/s |
| Degree of Protection | IP20 |
