Multilift II - Telescope Lifting Column
Load: max. 3,000 N | Stroke: max. 650 mm | Speed max. 8 mm/s
Features
Integrated limit switches
Self-locking, even at max. load
Lateral fixing slot in external profile
Position feedback by hall sensor
Optimised height / stroke length ratio conforms to the ergonomic standard for workbenches (DIN EN 527-1:2011)

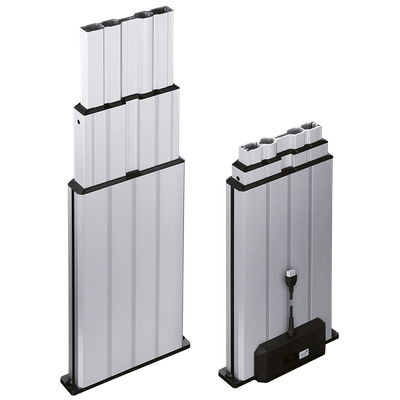

Telescope Lifting Column – Mulitlift ll
The installation dimension of the three-stage telescope lifting column is only 560 millimeters in the retracted position, with a maximum stroke of 650 millimeters and a maximum lifting force of up to 3,000 N per drive. The 1,210 millimeters that can thus be achieved in the extended position covers the valid standards of workplace ergonomics in many applications of assembly workstations, fixtures, control rooms, and much more.
Technical Data
General Info | |
|---|---|
| Stroke | Max. 650 mm |
| Push Load | Max. 3,000 N |
| Pull Load | Max. 3,000 N |
| Speed | 8 - 16 mm/s |
| Degree of Protection | IP30 |
