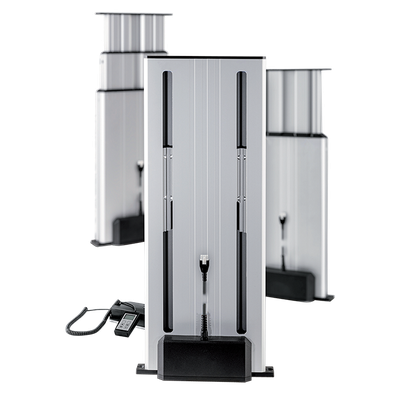

Multilift II with Internal Carriage
Load: max. 3,000 N | Stroke: max. 500 mm | Speed max. 16 mm/s
Features
Integrated limit switches
Self-locking, even at max. load
Lateral fixing slot in external profile
Position feedback by hall sensor
Lifting Column – Mulitlift ll
For vertical adjustment movements with a fixed installation dimension. The two-column lifting system with internal slides is suitable for material lifting devices. The load is guided laterally by the outer profile. In combination with the MultiControl II quadro drive control, the lifting columns can be moved individually, in parallel or synchronously using the drive group management of the control.
Technical Data
General Info | |
|---|---|
| Stroke | Max. 500 mm |
| Push Load | Max. 3,000 N |
| Pull Load | Max. 3,000 N |
| Speed | 8 - 1 6 mm/s |
| Degree of Protection | IP10 |
