Linear Actuator BGR 010
Stroke: max. 100 mm | Force: max. 500 N | Speed max. 38 mm/s
Features
End switch integrated (adjustable)
Signal contact executed
Potentiometer

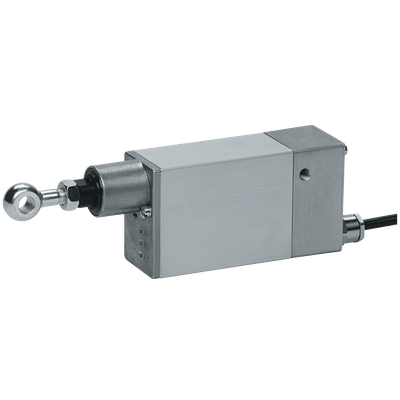

Linear Actuator BGR 010 – The Compact and Robust Linear Actuator
The BGR 010 linear actuator is a compact and robust actuator, originally developed for throttle adjustments in diesel engines and now widely used in various industries. Designed for confined spaces and harsh conditions, it features an impact-resistant aluminum housing with IP54 protection, high durability, and a duty cycle of up to 40%. The actuator offers customizable options such as stroke length, gearing, and voltage (12V or 24V), as well as flexible position feedback configurations for seamless integration into any system.
Common applications for the BGR 010 include adjusting agricultural machinery internal components, positioning chaff spreaders, regulating ventilation flaps, and tilting GPS antennas on various vehicles. Its versatility and reliable performance make it ideal for use in industrial equipment and inside off-highway vehicles, where compact, durable, and remote-controlled motion is required.
Technical Data
General Data | |
|---|---|
| Force | Max. 500 N |
| Speed | Max. 38 mm/s |
| Stroke Length | Min. 30 mm – max. 100 mm or min. 1 mm – max. 70 mm |
| Installation Dimension (A) | 138mm (Typ M10) | 238mm (Typ LH10) | 270mm (Typ LH11, LH950) |
| Motor Voltage | 12V DC, 24V DC |
| Degree of Protection | IP 54 or IP40 (Static) |
| Duty Cycle | 40% |
| Position Feedback | Optional Integrated Limit Switch or Potentiometer |
Configure Your Own Linear Actuator And Get The CAD Data
With our 3D CAD Product Configurator, you can create customized 3D STEP files for all our linear actuators to match your needs and requirements. The files are rendered and output directly, enabling you to incorporate them into your design and development processes. You receive the generated STEP files by e-mail. These can then be integrated directly into your application.
