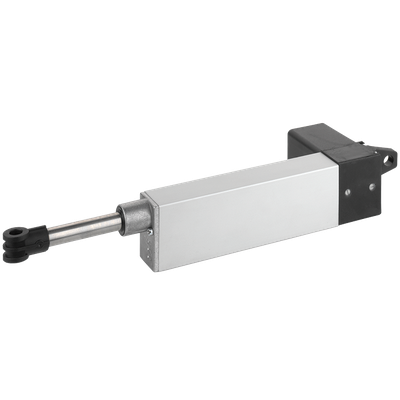

Linear Actuator BGR 015
Stroke: max. 300 mm | Force: max. 1,000 N | Speed max. 100 mm/s
Features
Position Feedback by Integrated Limit Switch or Potentiometer options
Direction of movement selection by supply voltage polarity
Current Limitation for additional safety
Compact, Robust Housing Design with IP54 Protection class
Linear Actuator BGR 015 – The flexible Actuator
The BGR 015 linear actuator is a flexible, compact actuator designed for industrial applications with stroke lengths up to 300 mm and adjustment speeds of up to 100 mm/s. It offers precise, repeatable movements with accuracy of less than 1 mm, a robust IP54-rated housing, and maintenance-free durability. Its modular design allows for customizable features such as stroke length, gearing, and position feedback, making it ideal for confined spaces and varied systems.
This actuator is particularly suitable for tasks in industries like logistics, mobile machinery, and marine technology, where reliable, space-saving solutions are required. Common applications include adjusting ventilation hatches, regulating shading, and opening storage compartments, where the BGR 015 can be tailored to meet specific operational needs.
Technical Data
General Data | |
|---|---|
| Force | Max. 1,000 N |
| Speed | Max. 100 mm/s |
| Stroke Length | Min. 15 mm – max. 300 mm |
| Installation Dimension (A) | Stroke + 144 mm (stroke fixed) | Stroke + 184 mm (stroke adjustable) |
| Motor Voltage | 12V, 24V DC |
| Degree of Protection | IP54 (static) |
| Duty Cycle | 10% |
| Position Feedback | Optional Integrated Limit Switch or Potentiometer |
Configure Your Own Linear Actuator And Get The CAD Data
With our 3D CAD Product Configurator, you can create customized 3D STEP files for all our linear actuators to match your needs and requirements. The files are rendered and output directly, enabling you to incorporate them into your design and development processes. You receive the generated STEP files by e-mail. These can then be integrated directly into your application.
