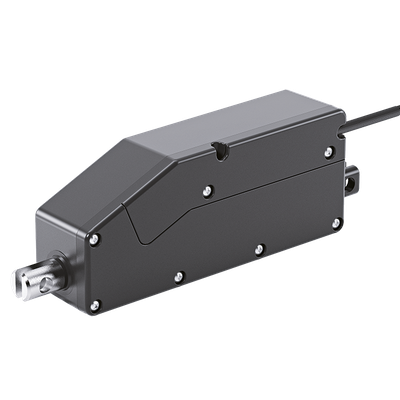

Linear Actuator LD75 E&P
Stroke: max. 130 mm | Force: max. 750 N | Speed max. 50 mm/s
Features
Position Feedback by Potentiometer (P) or adjustable integrated End switches (E)
Direction of movement selection by supply voltage polarity
Manual Emergency Operation
Very Compact, Robust Housing Design with IP69K Protection class
Linear Actuator LD75 – For Extreme Conditions
The LD75 linear actuator is engineered for extreme conditions, operating reliably in a wide range of temperatures. Its robust die-cast aluminum housing and stainless-steel lift tube ensure durability, while a maintenance-free 12 or 24V DC motor delivers long-lasting performance with a 30% duty cycle. Highly customizable, the LD75 can be tailored to specific needs, including stroke length, gearing, mechanical connections, cable lengths, and more.
The LD75E (E= End Switch), is the version offering variable adjustment of both stroke end positions by the customer, using an easily accessible, internal sliding limit switch feature.
The LD75P (P=Potentiometer), is the version with potentiometer feedback as a control alternative.
With an IP69k protection class, it can withstand harsh environments like seawater, salt spray, and UV radiation, making it ideal for offshore, agricultural, off-highway vehicles and a wide range of industrial machinery applications.
Technical Data
General Data | |
|---|---|
| Force | Max. 750 N |
| Speed | Max. 50 mm/s |
| Stroke Length | Min. 20 mm – max. 130 mm |
| Installation Dimension | 245 mm |
| Motor Voltage | 12V, 24V DC |
| Degree of Protection | IP 69k static |
| Duty Cycle | 30% |
| Position Feedback | End-Positions via integrated limit switches or potentiometer |
