Linear Actuator LZ60P 24/36VDC or 110/230VAC

Stroke: max. 600 mm | Force: max. 4,000 N | Speed max. 29 mm/s

Features

Synchronization Control
Dynamic options for DC or AC Motor Voltage
Position feedback by End Switch, Hall Sensor or Internal Control Options
Compact, Robust, Parallel Housing Design with IP54 Protection Class

Send Request

Catalogue

Installation Instruction

CAD Download

Linear Actuator LZ60P - 24/36VDC or 110/230VAC

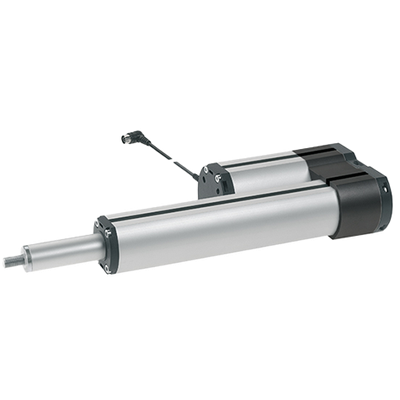

The powerful and dynamically equipped LZ60P linear actuator contain a motor-gear unit including options for motor brake, 2-channel Hall-IC sensor feedback, and two limit switches. All connection cables are led out directly to make commissioning convenient, especially with regards to PLC operation. The connection mounting of the electric cylinder is compatible with commercially available pneumatic and hydraulic cylinders, allowing easier replacement installations.

The LZ60P (P = Parallel) is the version with the motor drive housing mounted in parallel with the actuator, allowing shorted installation lengths. This version is available with 24V or 36V DC, or the option of 110V / 230V AC motor drive voltages. The linear actuator is also available in a straight inline housing (S) version , to suit various mounting geometry requirements.

Featuring a high quality, robust anodized aluminium housing rated to IP54 protection, and dynamic control configurations including option for synchronization, the LZ60 is a versatile and reliable actuator solution for industrial automation.

Technical Data

General Data
Force	Max. 4,000 N
Speed	Max. 29 mm/s
Stroke Length	Max. 600 mm
Installation Dimension (A)	Stroke + 168.5 mm or Stroke + 184 mm
Motor Voltage	24V / 36V DC or 110V / 230V AC
Degree of Protection	IP54
Duty Cycle	15%
Position Feedback	Optional End Position Signal, Hall Sensor Feedback or Internal Control

Configurator and 3D Data for Linear actuators

Configure Your Own Linear Actuator And Get The CAD Data

With our 3D CAD Product Configurator, you can create customized 3D STEP files for all our linear actuators to match your needs and requirements. The files are rendered and output directly, enabling you to incorporate them into your design and development processes. You receive the generated STEP files by e-mail. These can then be integrated directly into your application.
